Description
Discover the ideal match for your small shop with WMTCNC’s desktop and tabletop CNC lathes. Whether you’re a hobbyist branching into intricate turning projects or an engineer striving for perfection, the CNC180 tabletop CNC lathe is designed to meet your needs and help you redefine the boundaries of craftsmanship.

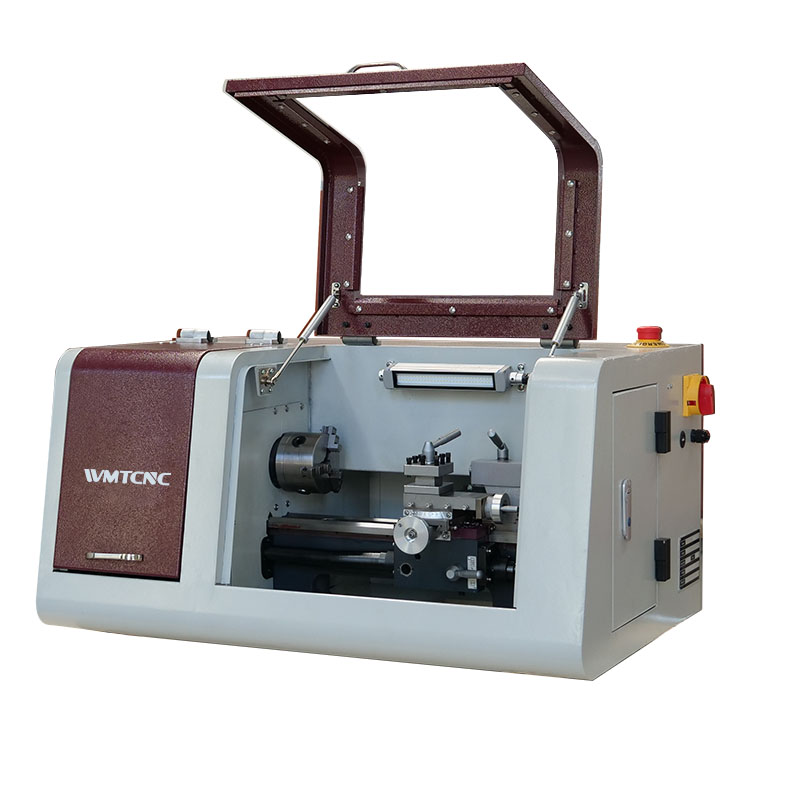

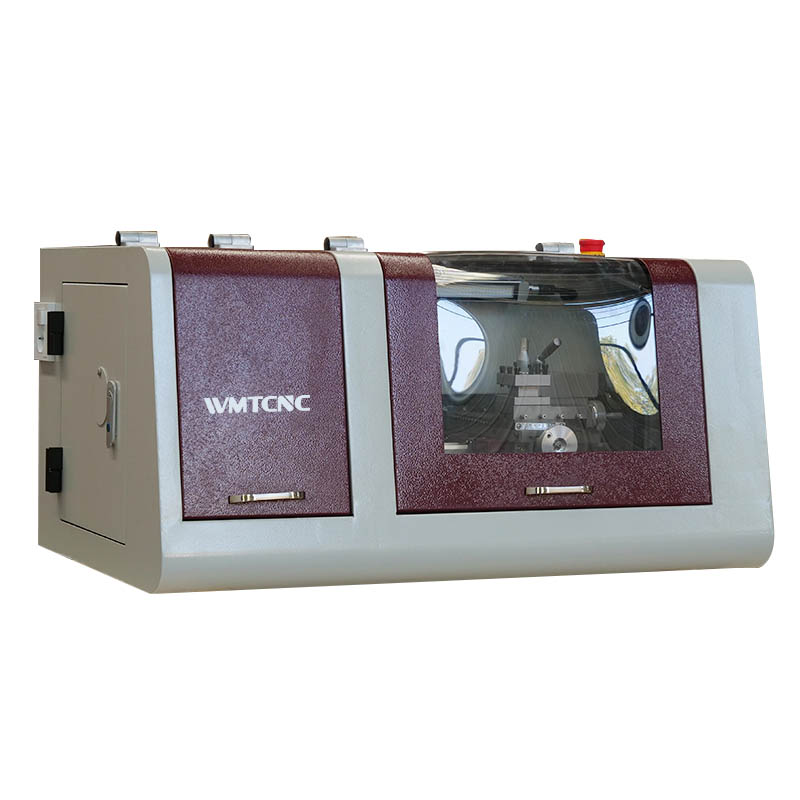

The CNC180 Lathe by WMTCNC is precision-crafted for compact spaces while delivering serious performance. This small footprint, high-precision tabletop CNC lathe is an ideal addition to any workshop, garage, lab or classroom. It is engineered with both prototyping and specialty manufacturing in mind, giving you the ability to bring turning work in-house, shorten lead times and keep full control over quality.
Specifications
| Specification | CNC180 |
| Capacity | |
| Max. swing over bed | 180 mm |
| Distance between centers | 300 mm |
| Rail width | 100 mm |
| Spindle | |
| Spindle bore dia. | 21 mm |
| Spindle taper | MT3 |
| Spindle speed | 50–2500 rpm |
| Axis | |
| X-axis travel | 100 mm |
| Z-axis travel | 180 mm |
| X rapid speed | 1500 mm/min |
| Z rapid speed | 1500 mm/min |
| Motor | |
| Spindle motor power | 750 W, 220 V / 1 Ph / 50 Hz |
| Main motor type | Brushless motor |
| Controller system | Linux |
| X motor torque | 1.5 N·m |
| Z motor torque | 2.0 N·m |
| Min. setting unit | 0.001 mm |
| Turret | |
| Type | Manual type |
| No. of tool stations | 4 position |
| Max. section of tool | 8 × 8 mm |
| Tailstock | |
| Tailstock dia. | 20 mm |
| Tailstock travel | 55 mm |
| Tailstock taper | MT2 |
| Machine Dimensions | |
| Packing size (without stand) | 980 × 632 × 520 mm |
| Overall size | 1150 × 755 × 700 mm |
| N.W (without stand) | 103 kg |
| N.W | 123 kg |
Machine Details
Who Is the CNC180 Tabletop CNC Lathe For?
- Small shops and startups that need an affordable, compact CNC lathe for precision work.
- R&D teams and engineers who require a reliable in-house machine for prototyping and testing.
- Educational institutions looking for a safe, modern tabletop CNC lathe for training students.
- Hobbyists and makers who want professional-level results from a compact CNC turning solution.
Ready to Add a Tabletop CNC Lathe to Your Shop?
If you are looking for a compact, precise and easy-to-use tabletop CNC lathe, the WMTCNC CNC180 is an excellent choice. It combines industrial-style performance with a small footprint, making it perfect for tight spaces and light production work.
Contact us today to get a quote, discuss configuration options or learn more about how the CNC180 tabletop CNC lathe can upgrade your workshop, lab or classroom.
