Description

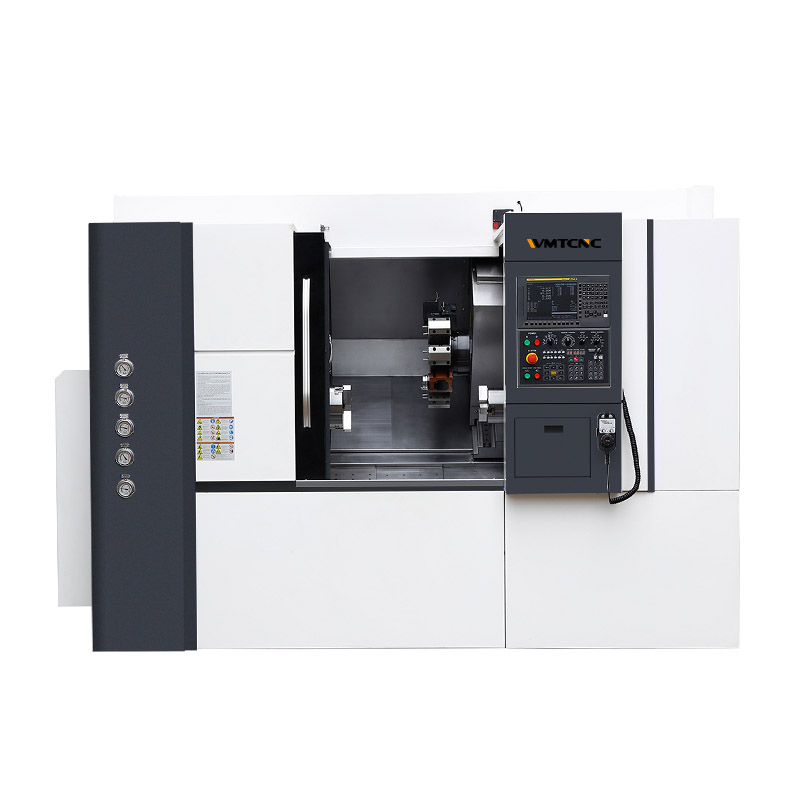

WMT BRAND cnc turning center machine TX500ESY will offer you perfect service by excellent performance, strong rigidity, long-term stability, and higher accuracy.
Specification
| Specification | Unit | TX500ESY | |
|---|---|---|---|
| Capacity | Max. turning diameter | mm | 320 |
| Max. length of workpiece | mm | 650, 1000 | |
| Max. swing dia. over bed | mm | 650 | |
| Max. swing dia. over slide | mm | 430 | |
| Spindle | Hydraulic chuck/Collet chuck | Inch | 8 |
| Spindle bore | mm | Ø66 | |
| Max. dia. of through-hole | mm | Ø52 | |
| Spindle nose | type | A2-6 | |
| Spindle speed | rpm | 4000 | |
| Main motor power | kW | 22, 30 | |
| Sub Spindle | Hydraulic chuck/Collet chuck | Inch | 6 |
| Spindle bore | mm | Ø55 | |
| Max. dia. of through-hole | mm | Ø46 | |
| Spindle nose | type | A2-5 | |
| Spindle speed | rpm | 5000 | |
| Main motor power | kW | 11, 15 | |
| Axis | X axis travel | mm | 250 |
| Z axis travel | mm | 650, 1000 | |
| Y axis travel | mm | 100(±50), 140(±70) | |
| X/Z/Y axis rapid traverse | m/min | 20/20/12 | |
| Turret | Type of turret | BMT45, BMT55 | |
| No. of tool | 12 | ||
| OD tool shank size | mm | 20×20, 25×25 | |
| Boring tool shank size | mm | Ø32 | |
| Max. speed of live tooling | rpm | 4000, 6000 | |
| Boring depth of sub spindle | mm | 115, 145 | |
| Structure | Slant bed degree | degree | 35 |
| Guideway type | mm | LM | |
| Others | Weight (about) | kg | 5300 |
| Overall dimension (LxWxH) | mm | 3000x1780x2050 | |
Features
4-Axis cnc turning center machine: X, Y, Z and C1 Axes
Absolute encoder, Bus-cable type advanced control system.
Fanuc Motor and drivers
Direct driven motorized spindle (PMSM type permanent magnet synchronous motor)
BMT45, 12-position Driven tool power turret.(Std without live tool holders).
HIWIN / PMI linear motion guideway
HIWIN / PMI Ballscrew with NSK bearings
Schneider electronic components
Auto lubrication system & Auto coolant system
Handheld Electrical Hand Wheel
Work lamp & Tri-color warning light
