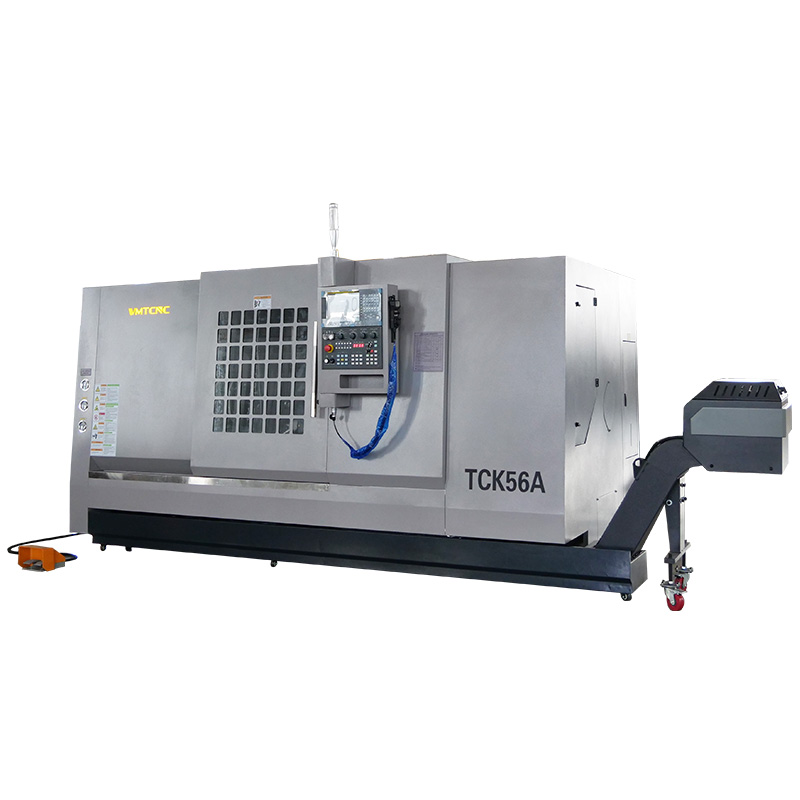

Description
Precision slant bed CNC lathe machine TCK56A is a style of economically applicable precision machining equipment, characterized by stability and precision, high efficiency, and low consumption. WMTCNC BRAND precision cnc lathe machine will offer you perfect service through excellent performance, strong rigidity, long-term stability and higher accuracy.
Specification
| Specification | TCK56A-1000 |
| Capacity | |
| Max. swing dia. over bed | φ560mm |
| Max. length of workpiece | 1000mm |
| Max. turning dia. | Φ520mm (Disc parts), Φ380mm (Shaft parts) |
| Max. turning dia. | 8”-500 (10”-480) |
| Max. swing dia. over slide | φ460mm |
| Max. bar diameter | φ51mm |
| Spindle | |
| Spindle speed range | 50～3000r/min |
| Spindle bore | φ65mm |
| Spindle nose | A2-6/A2-8 |
| Spindle speed (r/min) | 3 gear stepless 21-1620 |
| H:162-1620 M:66-660 L:21-210 | |
| Taper hole of spindle | Metric 1:20 |
| Max. output torque of spindle (N.m) | 800 |
| Max. rapid traverse (m/min) | X-axis: 6 (See OPERATOR’S MANUAL — ELECTRICAL PARTS for details) |
| Z-axis: 8 (See OPERATOR’S MANUAL — ELECTRICAL PARTS for details) | |
| Pitch of screw (mm) | X direction: 5 Z direction: 6 |
| Capacity of turret | 4(standard)/6(optional) |
| Width of tool block (mm) | 162X162 |
| Max. permissible tool section (mm ×mm) | 25×25 |
| Travel of turret (mm) | X direction: 300/235 (6-station) |
| Z direction: 600/850/1350/1850/2850 | |
| Dia. of tailstock quill (mm) | φ75(φ80 hyd. tailstock) |
| Taper of tailstock quill (MT No.) | MT No.5(MT No.3 hyd. tailstock with live spindle) |
| Max. travel of tailstock quill (mm) | 150 (130 hydraulic tailstock) |
Main Features
- Slant bed CNC lathe uses a beveled overall bed for more stable force during cutting.
- The bed material is made of high-density cast iron, which has high strength and good shock absorption.
- The increased chip evacuation design ensures smooth machine cutting.
- Japan high precision ball screw ensure positioning accuracy more stable and enables users to obtain higher machining precision, faster moving speed and production efficiency.
- GSK, Siemens, Fanuc controller as optional.

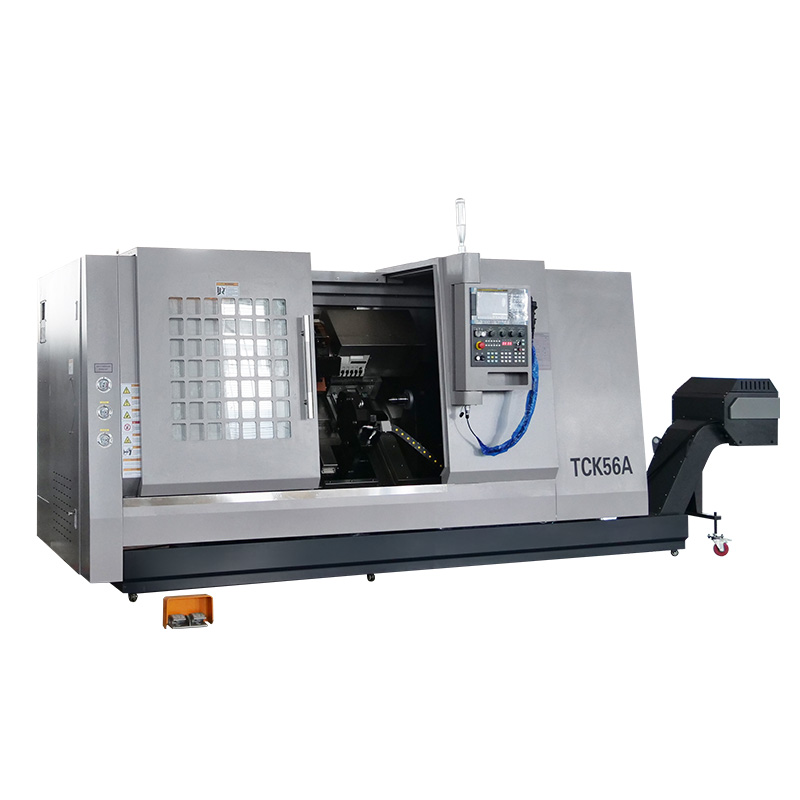

Machine Details

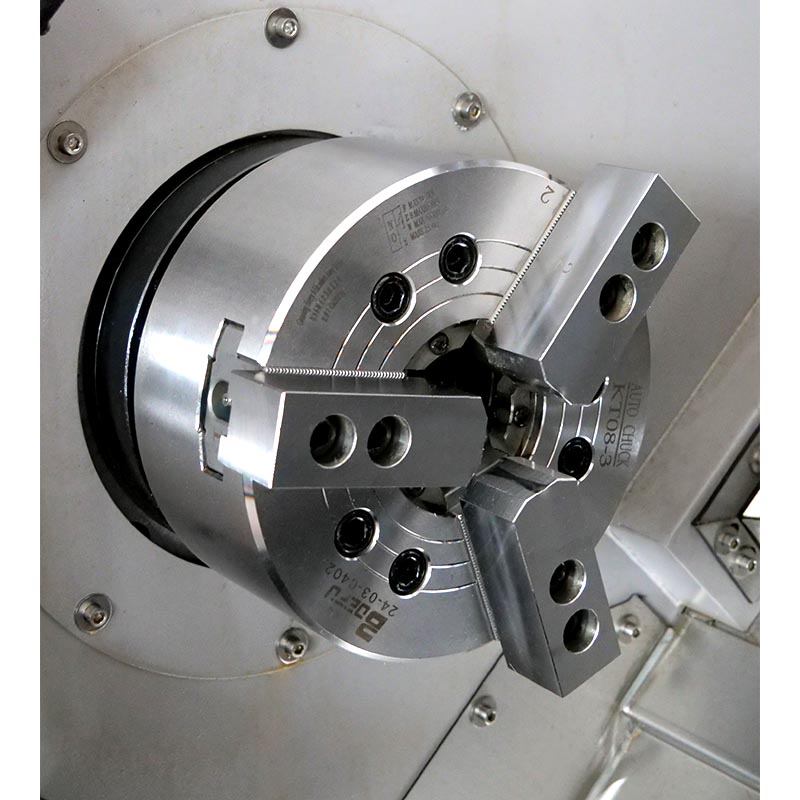

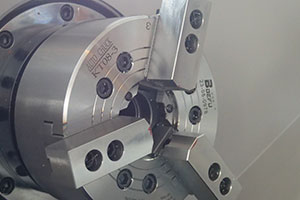

Hydraulic 3 jaw chuck

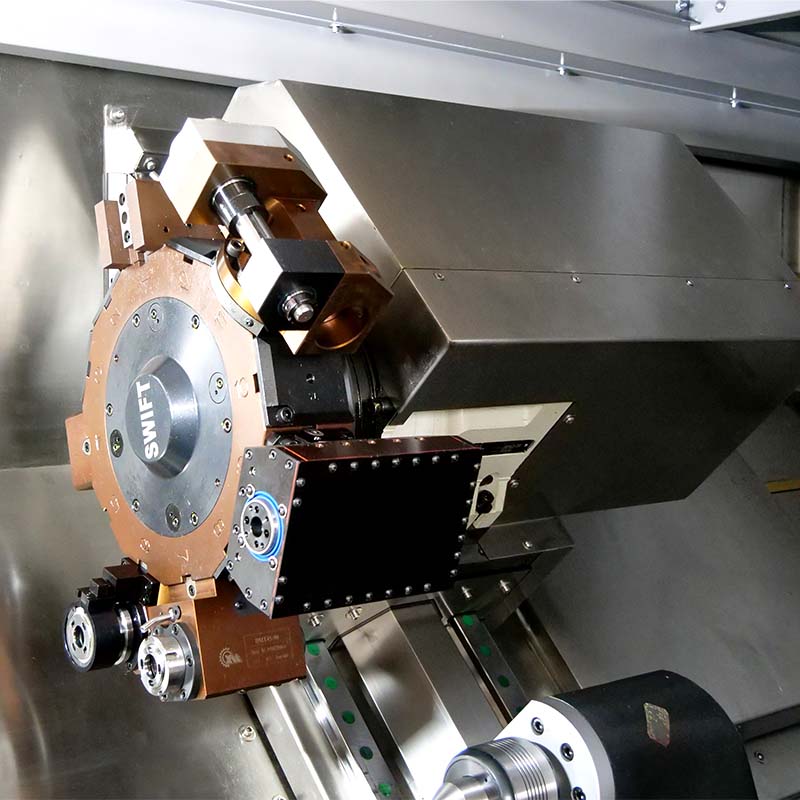

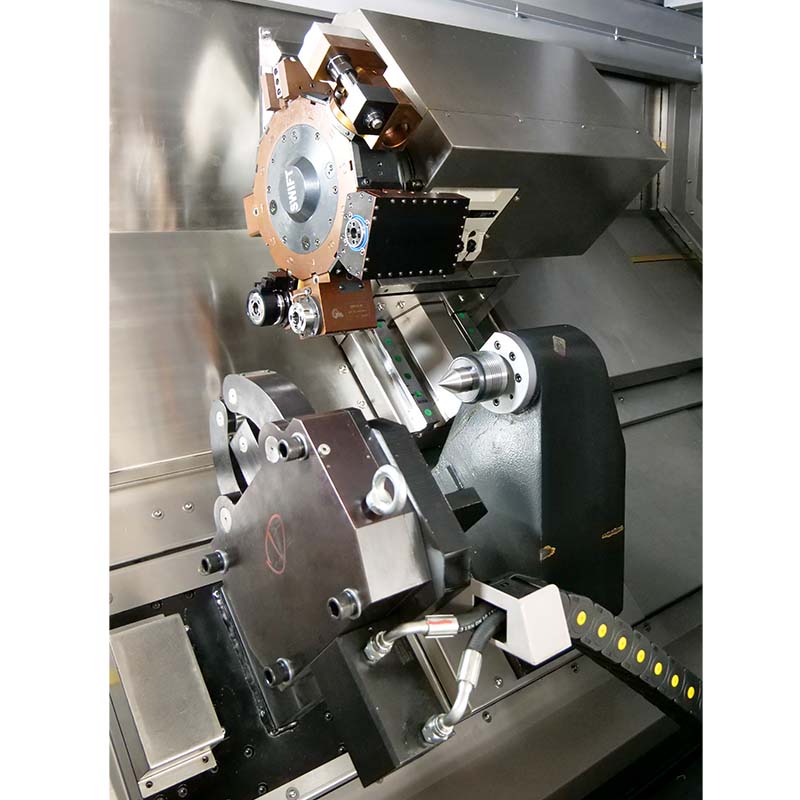

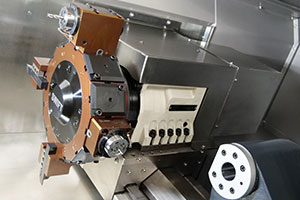

Power turret

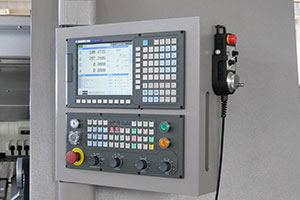

CNC controller

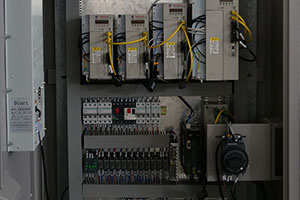

Electrical cabinet
