Description

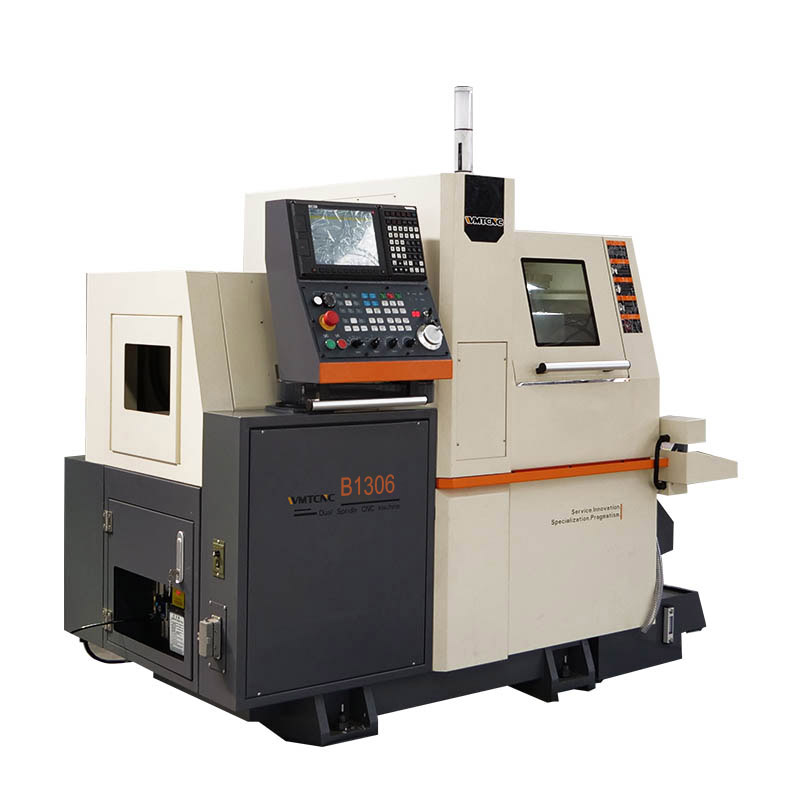

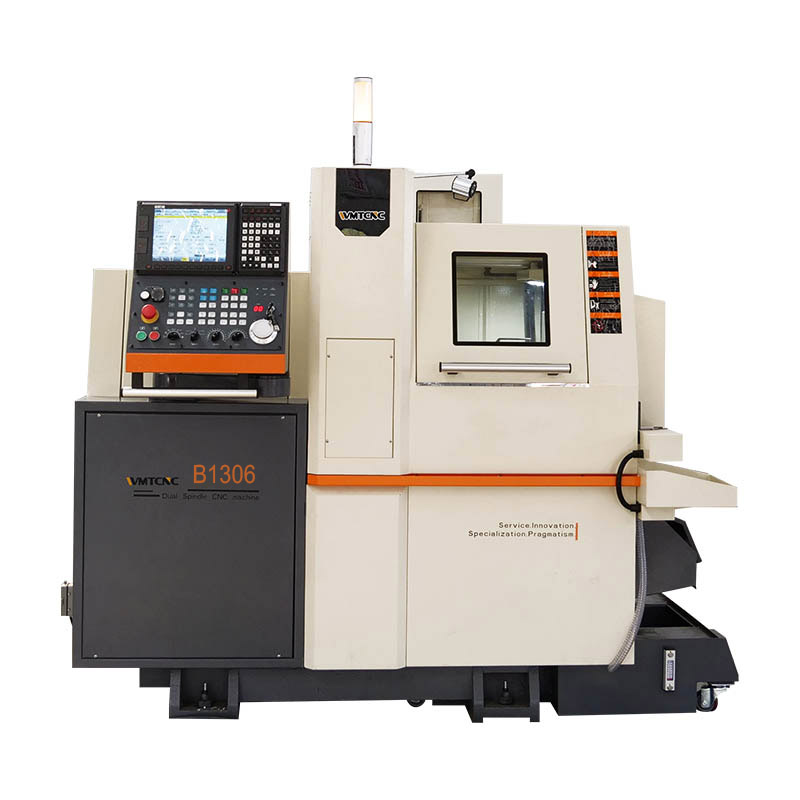

The B1306 dual-spindle swiss cnc lathe machine has the capacity of car and milling composite, a high-precision, wide range, and highly practical processing equipment. This swiss cnc lathe is suitable for the large-scale, multi-variety, and high-precision processing tasks of “slender shafts” parts with relatively large diameters and “small” and “alien” parts. Cars, motorcycles, communications, cooling, optical, optical, home appliances, microelectronics, electronics, clocks, mobile phones, and other industries have a variety of high-precision, multi-batch, complex shaft parts, and small precision parts.
Specification
| Specification | B1306 |
| Controller | |

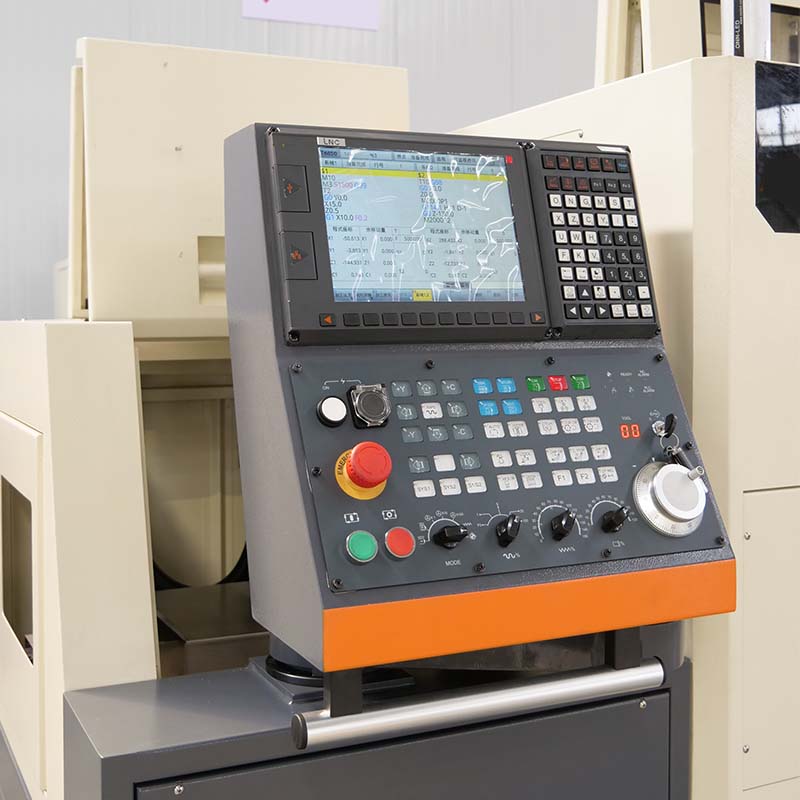

| Controller model | YZ190 |
| X Axis Pulse Equivalent | 0.0005/0.001/0.001mm |
| Max. cutting Speed | 4m/min |
| X /Y/Z axis max. fast feeding speed | 20/20/20m/min |
| Spindle | |
| Max. Bar dia. | Φ13mm |
| Max. spindle bore dia. | Φ14mm |
| Max. height of spindle center from ground | 1040mm |
| Max. spindle speed/motor power | 5000rpm/2kw |
| Max. installed capacity of cutter | 12*12mm square cutter (5pcs) |
| Φ20mm hole cutter (ER11 4pcs) | |
| Main spindle power head std. | ER11+ER16 (2pcs+1pc) |
| Main spindle power head max. speed/motor power | 5000rpm/0.4kw |
| Sub-spindle | |
| Max. Clamping dia. | Φ13mm |
| Sub-spindle max. speed/motor power | 5000rpm/2kw |
| Max. installed capacity of cutter | Φ16mm hole cutter (2pcs) ER16 toolholder (2pcs) 12*12mm square cutter(1pc) |
| Sub-spindle power head | ER11+ER16 (2pcs+1pc) std. |
| Sub-spindle power head max. speed/motor power | 5000rpm/0.4kw |
| Spindle Travel | |
| X1/Y1/Z1 axis travel | 100/240/180mm |
| X1/Y1/Z1 axis servo motor power | 0.75kw/1kw/1kw |
| Sub-spindle travel | |
| X2/Y2/Z2 axis travel | 400/40/190mm |
| X2/Y2/Z2 axis servo motor power | 1kw/0.75kw/1kw |
| Machine dimension | |
| Machine overall dimension (LxWxH) | 2030x1250x1930mm |
| Machine weight | 1730kg |
Main Features
The structure inherits precision design principles to achieve high-precision machining. The back tool table is equipped with a Y2-axis, which can achieve compound processing to achieve complete simultaneous processing of the back, side and spindle side.

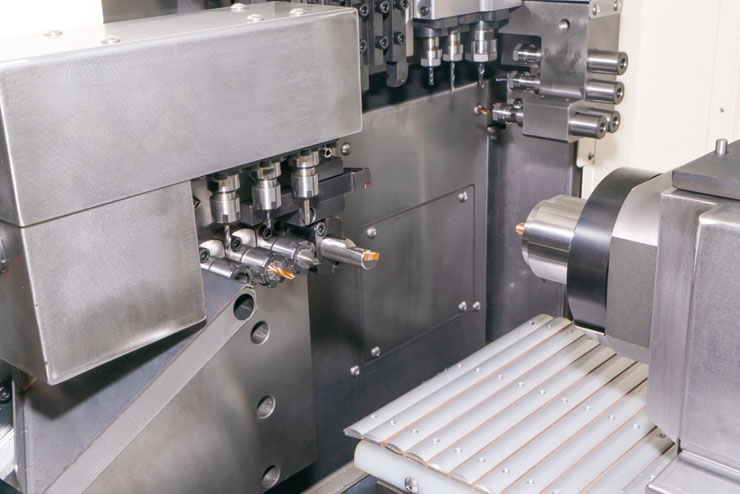

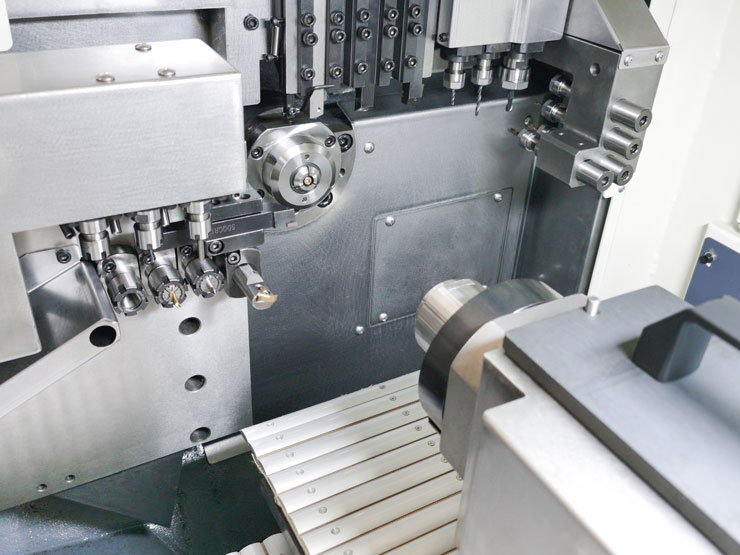

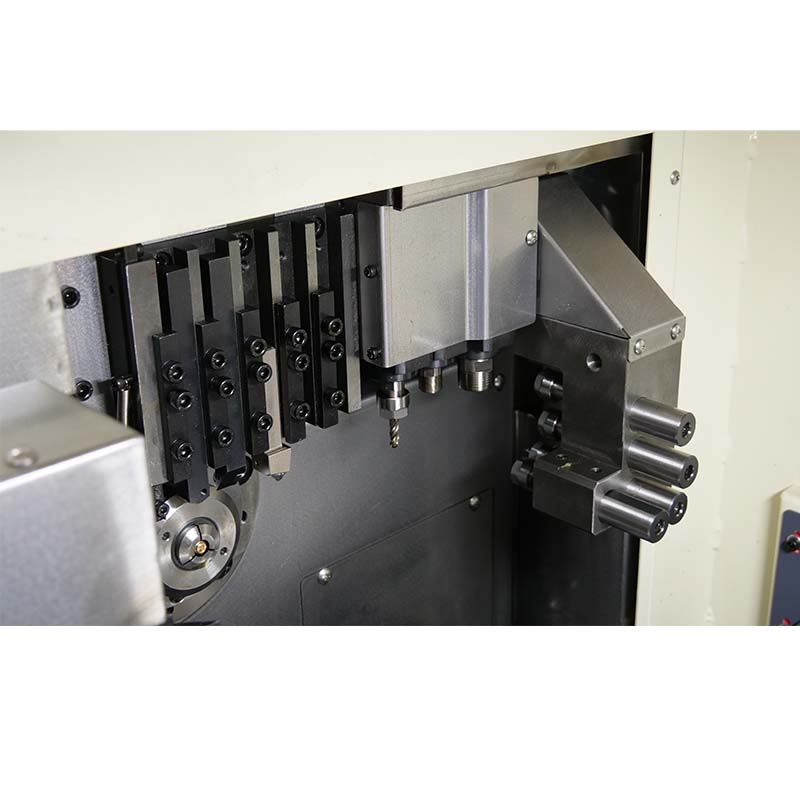

The spindle part is equipped with 5 square cutters, 3 power heads on the side and 4 drilling tools on the end face, which can rotate up, down, left and right. The back shaft part is equipped with 4 end cutters, 1 square cutter, and 3 side power heads that can move up and down.
