Description

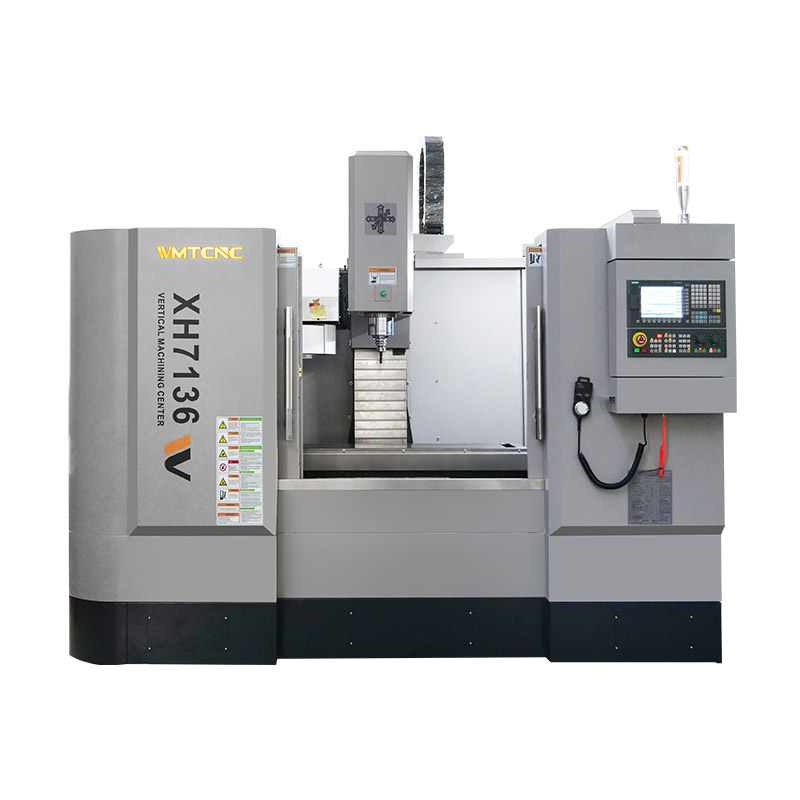

The WMTCNC’s CNC Vertical Milling Machine XH7136 provides reliable, high-performance machining for box parts, shell parts, disc-shaped parts, and more. Additionally, its dovetail guideway with plastic sticking increases rigidity, stability, and support, ensuring precise and efficient operations.
Moreover, the XH7136 CNC milling machine delivers excellent performance, long-term stability, and high accuracy. Furthermore, its advanced features optimize machining efficiency, making it ideal for industrial production and precision engineering.
Choose the WMTCNC XH7136 to further enhance your machining capabilities with superior precision, reliability, and efficiency. As a result, you will achieve outstanding results for every project, ensuring consistent success and high-quality outcomes.
Specification
| Specification | XH7136 |
| Worktable | |
| Worktable size (L×W) | 1250×360mm |
| T-slot (N×W×D) | 3-18/80mm |
| Travel | |
| X/Y/Z axis travel | 900/350/500mm |
| Machining range | |
| Distance from spindle center to column | 460mm |
| Distance from spindle nose to worktable surface | 100-600mm |
| Spindle | |
| Spindle taper | BT40 |
| Spindle power | 5.5kw |
| Max. spindle speed | 8000rpm |
| Feed | |
| Max. feed speed | 10m/min |
| Rapid feed speed (X/Y/Z) | 10/10/8m/min |
| Power | |
| AC servo motor torque (X/Y/Z) | 7.7/7.7/15N.m |
| X/Y/Z feed motor power | 1.5/1.5/2kw |
| Rated power | 11kw |
| Ball screw | |
| X/Y/Z axis ball screw | X-3206, YZ-4006 |
| Tool magazine | |
| Tool magazine capacity | 16T |
| Max. length of tool | 200mm |
| Tool change time (T-T) | 7s |
| Positioning accuracy | |
| Positioning accuracy (X/Y/Z) | ±0.02mm |
| Re-positioning accuracy (X/Y/Z) | ±0.01mm |
| Machine dimension | |
| L×W×H | 3000×2150×2450mm |
| Machine weight | |
| Max. loading of worktable | 350kg |
| Machine weight | 3500kg |
Main Features of Milling Machine CNC
- High-precision milling machine designed for optimal performance and accuracy.
- Sturdy worktable with dimensions of 1250x360mm.
- Versatile machining range with X/Y/Z axis travel of 900/350/500mm.
- BT40 spindle taper and 5.5kw spindle power for efficient and precise cutting.
- Impressive maximum spindle speed of 8000rpm for rapid material removal.
- AC servo motors with torque values of 7.7/7.7/15N.m ensure smooth and reliable operation.
- 16T tool magazine for quick and seamless tool changes.
- Exceptional positioning accuracy of ±0.02mm and re-positioning accuracy of ±0.01mm.
- Elevate your machining capabilities with the XH7136 CNC milling machine, delivering outstanding precision, efficiency, and versatility.
Exhibition and Events
WMTCNC participates in many professional machine tool exhibitions around the world each year. These include the annual CIMES and CIMT in Beijing, the biannual China Import and Export Fair (Canton Fair), the EMO exhibition in Europe, the Czech Industrial Exposition, the Poznan Exhibition, and other international events worldwide.
In addition, we are eager to collaborate with our customers and attend these various exhibitions together. If you are interested, please feel free to contact us, as we would be happy to discuss the opportunities for joint participation.
Machine details
GSK, Fanuc, Siemens controller as optional selection

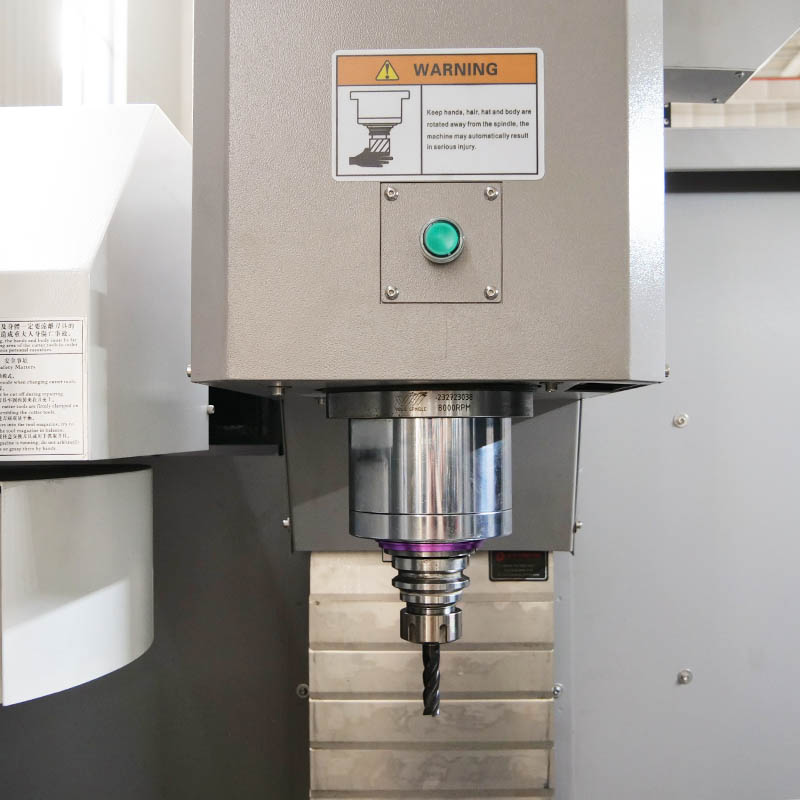

Spindle unit BT40

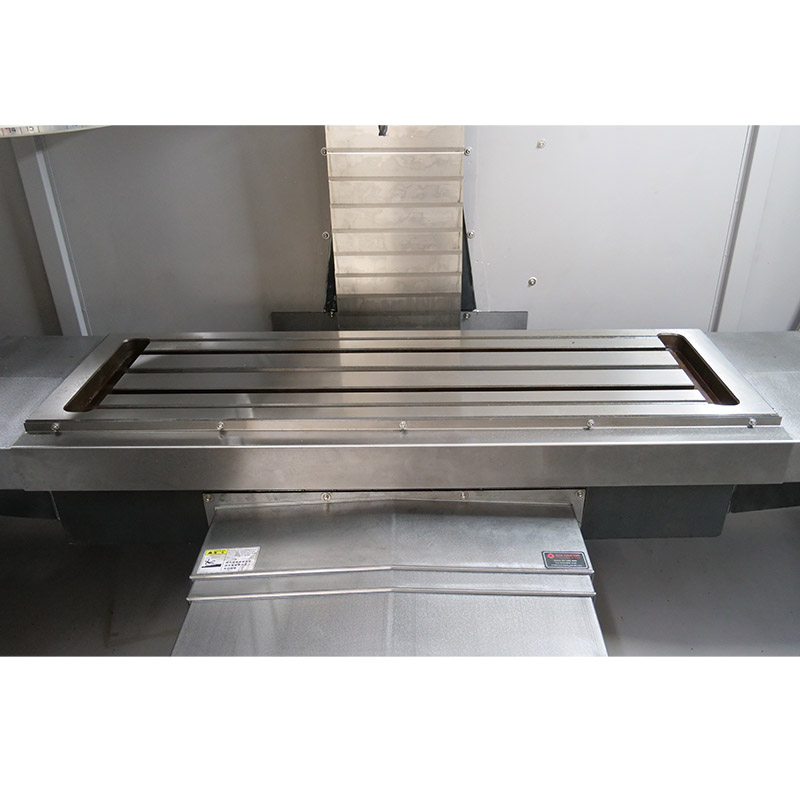

1250X360mm Worktable

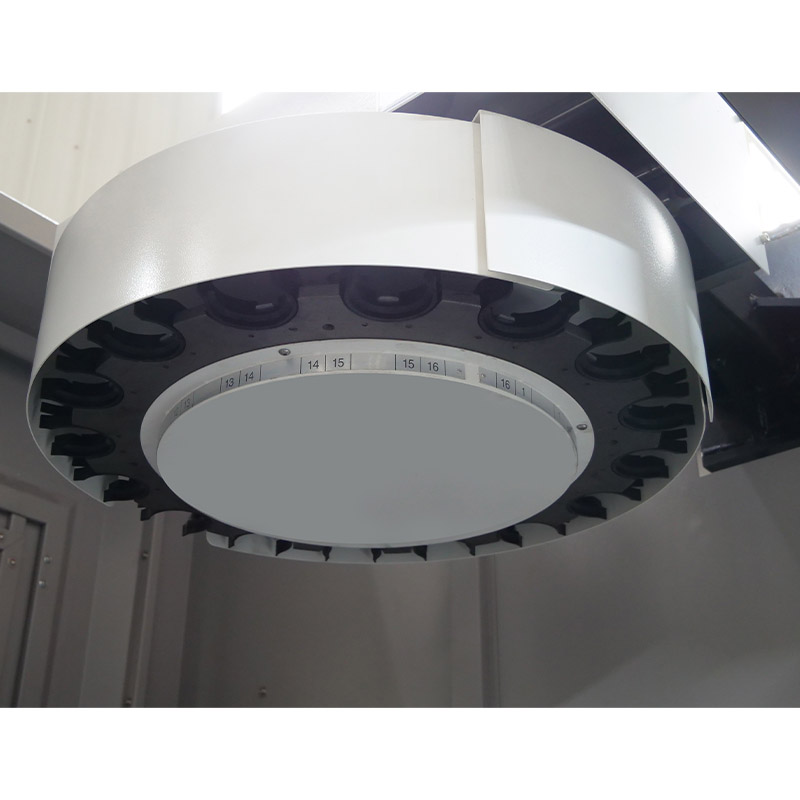

16 pcs Tool Magazine
FAQ
Q1:What materials can CNC milling machines process?
A1:The WMTCNC‘s CNC milling machine can process a wide range of materials, including metals, plastics, and composites. Moreover, its robust design ensures efficient machining of both hard and soft materials with high precision.
Q2: How is the warranty?
A2: Warranty time is 13 months after BL date.
Q3: Can we visit your factory before order?
A3: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
