Description

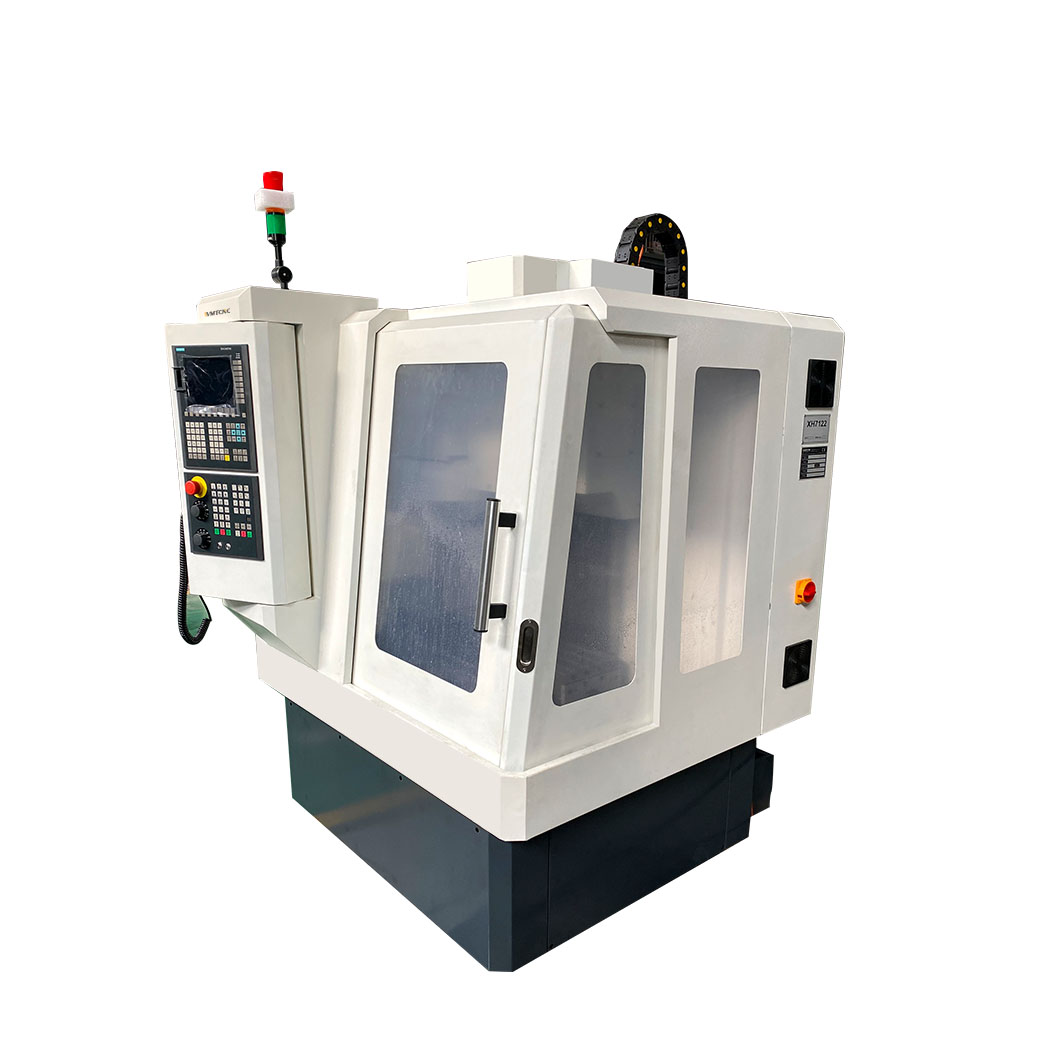

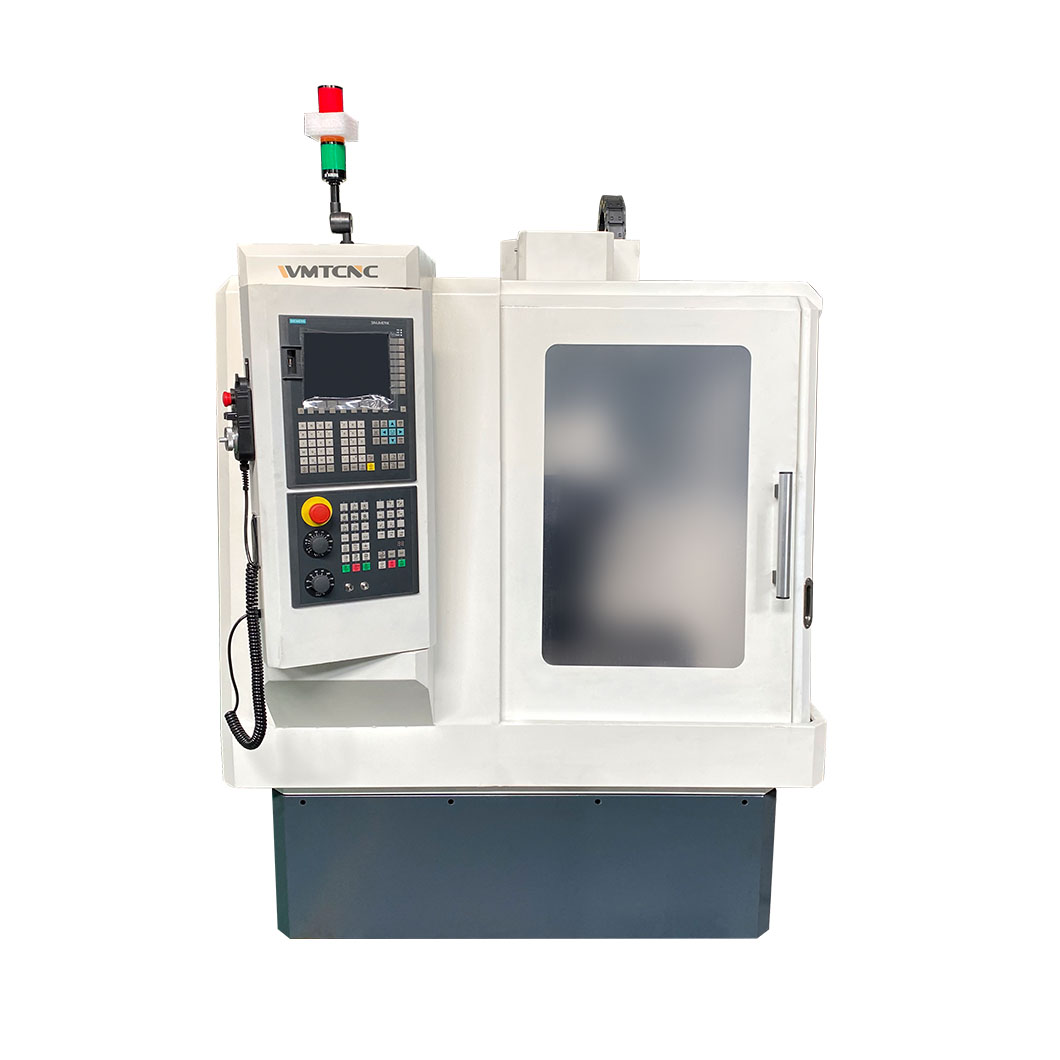

CNC metal milling machine XH7122 is a versatile and powerful solution for various machining needs. Its high precision, storage capacity, and robust construction make it an indispensable tool in industries such as instruments, meters, light industries, electronics, home appliances, medical instruments, aeronautics, and astronautics. Whether you require surface milling or hole drilling, this machine offers excellent performance and reliability, making it a valuable asset in the manufacturing sector.
Specification
| Specification | XH7122 |
|---|---|
| Worktable size (LxW) | 700×210mm |
| T-slot (NxWxD) | 5-18×100mm |
| X/Y/Z axis travel | 400/220/350mm |
| Distance from spindle center to column | 270mm |
| Distance from spindle nose to worktable surface | 75-520mm |
| Spindle taper | BT30 |
| Spindle power | 2.2KW-3.7KW |
| Max. spindle speed | 8000r/min (10000r/min optional) |
| Max. feed speed | 8m/min |
| Rapid feed speed (X/Y/Z) | 10/10/10m/min |
| AC servo motor torque (X/Y/Z) | 6/6/6N.m |
| X/Y/Z feed motor power | 0.75/0.75/1kw |
| Rated power | 4.5kw |
| X/Y/Z axis ball screw | 2505 |
| Tool magazine capacity | 8T/12T (optional) |
| Max. length of tool | 175mm |
| Tool change time (T-T) | 7s |
| Positioning accuracy (X/Y/Z) | 0.02mm |
| Re-positioning accuracy (X/Y/Z) | 0.01mm |
| Machine dimension (LxWxH) | 1470×1550×2080mm |
| Max. loading of worktable | 200kg |
| Machine weight | 1300kg |
Main Features
- Compact various functions of milling, drilling, boring and reaming.
- Used for production in small-middle manufacturing and in lot with many varieties.
- CNC metal milling machine XH7122 with BT30 Spindle unit, high speed 6000r.p.m with high precision.
- Pneumatic cylinder for easy and fast tool changing.
- Linear guideway by Taiwan HIWIN Brand.
- 8/12 PCS cloak type ATC.
- Full enclosure, opened with two doors for most wider operating area.
- Various CNC controller available to fit, GSK, SIMENS, FANUC, etc.
Certificates
At WMTCNC, our products meet strict health, safety, and environmental standards in the EEA, highlighting our commitment to quality.
We prioritize high-performance machinery that ensures customer well-being and environmental protection, strengthening our leadership in the CNC industry.

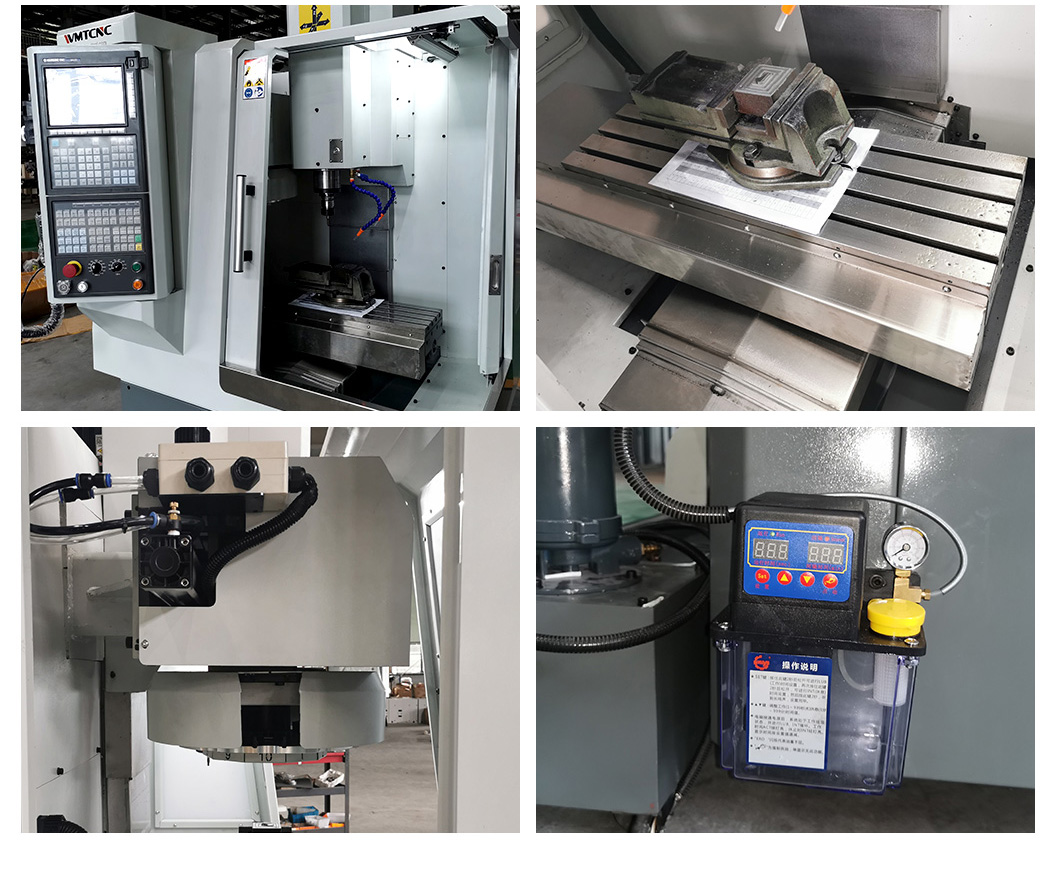

Machine details
FAQ
Q1:What materials can CNC milling machines process?
A1:The WMTCNC‘s CNC milling machine can process a wide range of materials, including metals, plastics, and composites. Moreover, its robust design ensures efficient machining of both hard and soft materials with high precision.
Q2: How is the warranty?
A2: Warranty time is 13 months after BL date.
Q3: Can we visit your factory before order?
A3: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
