Description
The XK7115 is a highly compact CNC milling machine engineered for precision in small-scale operations. Moreover, its affordability makes it an ideal option for households and educational environments. The WMTCNC machine’s small footprint and cost-effectiveness allow beginners and hobbyists to gain hands-on experience with CNC machining, all while keeping investment low.
The XK7115 is designed for both reliability and precision, ensuring consistent, high-quality output. Furthermore, its intuitive controls and space-efficient structure make it particularly well-suited for educational institutions and small workshops. Whether used for learning, hobby projects, or low-volume production, the XK7115 combines value and performance without compromise.
WMTCNC’s CNC milling machines are designed for high precision, versatility, and efficiency. Their advanced control systems allow for intricate and complex machining with minimal human intervention. Additionally, the robust construction ensures reliability and longevity, making them ideal for both small and large-scale manufacturing. As a result, they provide cost-effective solutions without compromising on quality or performance.
Specification of CNC Milling Machine XK7115
| Specification | XK7115 |
|---|---|
| Worktable size | 400×145mm |
| T-slot size | 3×12×40 |
| Loading capacity of worktable | 20kg |
| X axis travel | 260mm |
| Y axis travel | 152mm |
| Z axis travel | 180mm |
| Distance from spindle nose to worktable surface | 60-240mm |
| Distance from spindle center to column | 200mm |
| Spindle taper | ISO20 |
| Spindle power | 1000W |
| Spindle speed | 100-5000r/min |
| X/Y/Z rapid feed speed | 2000mm/min |
| X/Y/Z axis torque | X/Y:1.35 Nm, Z: 3.1Nm |
| Position of toolpost | 4 |
| Tool change time | 10s |
| Positioning accuracy | 0.015mm |
| Re-positioning accuracy | 0.01mm |
| Voltage | 230/110V |
| N.W/G.W | 280/340kg |
| Machine size (LxWxH) | 1040×860×940mm |
| Packing size (LxWxH) | 1170×960×1100mm |
Main Features
- Two-way choice of opaque/fully transparent visible protective cover
- 4-station powerful tool magazine
- Selected high-quality material casting, compact structure of small CNC milling machine
- High efficiency 1000W brushless motor
- High-strength cast hard rail Taiwan-made ball screw
- Three-axis stepper motor, brushless high torque motor
Certificates
At WMTCNC, we ensure our products meet the strict health, safety, and environmental standards required in the European Economic Area (EEA). This commitment underscores our dedication to quality.
Additionally, we prioritize delivering high-performance machinery that safeguards both customer well-being and the environment, solidifying our position as a trusted CNC industry leader.
Machine details of Small CNC milling machine
Blow of ring

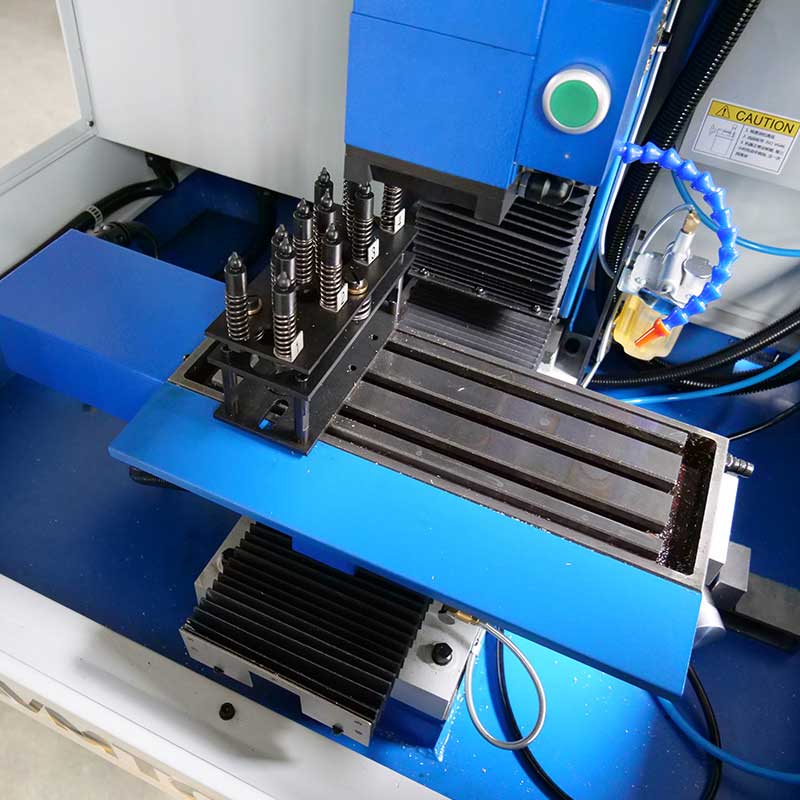

400×145mm Worktable

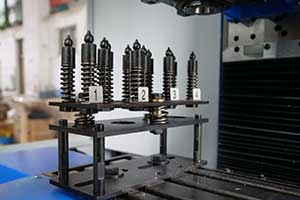

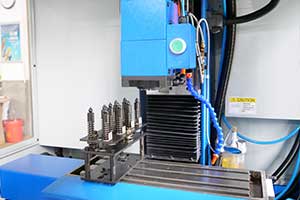

4 station ATC, variety of tools for your choice

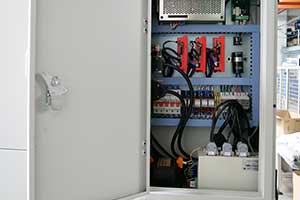

Electrical cabinet
FAQ
Q1:What materials can CNC milling machines process?
A1:The WMTCNC’s CNC milling machine can process a wide range of materials, including metals, plastics, and composites. Moreover, its robust design ensures efficient machining of both hard and soft materials with high precision.
Q2: How is the warranty?
A2: Warranty time is 13 months after BL date.
Q3: Can we visit your factory before order?
A3: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
