Description

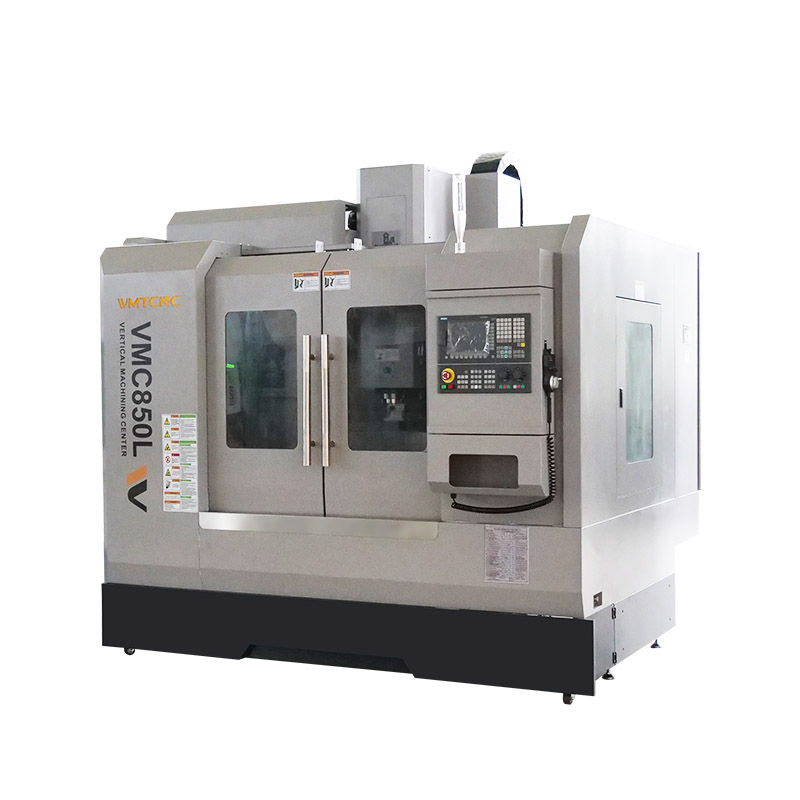

This VMC machine center VMC850L vmc 850 cnc is suitable for mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring, etc.
Specification
| Specification | VMC850L |
| Worktable | |

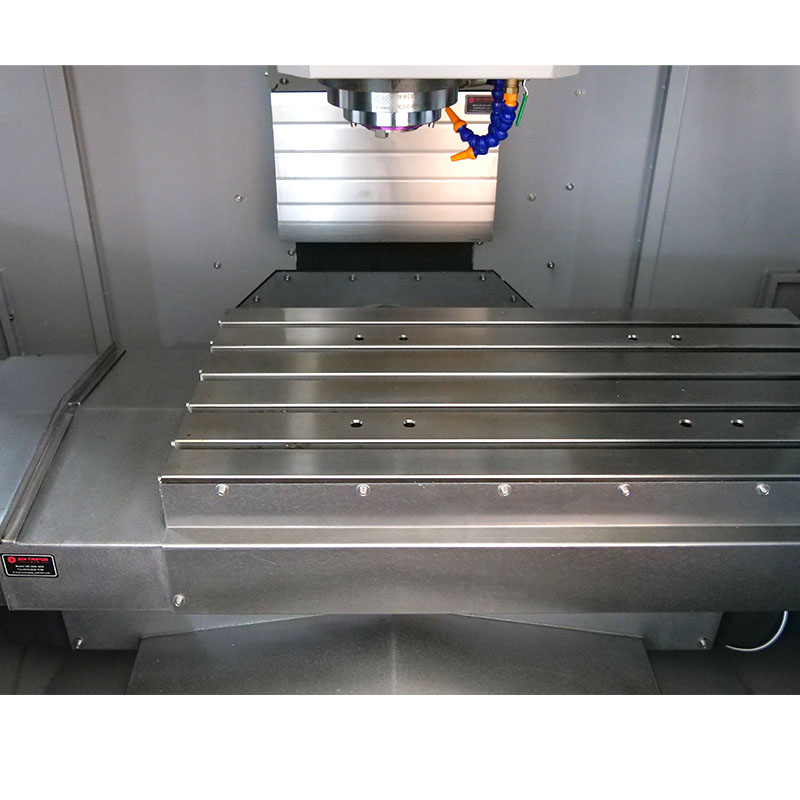

| Worktable size (L×W) | 1000×500mm |
| T-slots size (N×W×D) | 5-18x90mm |
| Travel | |
| X/Y/Z axis travel | 800/500/500mm |
| Distance from spindle center to column | 550mm |
| Distance from spindle nose to worktable surface | 150-650mm |
| Spindle taper | BT40 |
| Spindle power | 7.5kw |
| Max. spindle speed | 8000rpm |
| Max. feed speed | 10m/min |
| Rapid feed speed (X/Y/Z) | 24/24/20m/min |
| X/Y/Z axis ball screw | 4016 |
| Tool magazine capacity | 24T |
| Max. length of tool | 300mm |
| Tool change time | 1.5s |
| Positioning accuracy (X/Y/Z) | ±0.005mm |
| Re-positioning accuracy (X/Y/Z) | ±0.003mm |
| Machine dimension (L×W×H) | 2750×2300×2300mm |
| Max. loading of worktable | 500kg |
| Machine weight | 5300kg |
Main Features
- Spindle Unit of VMC machine center: The spindle has a speed of 8000rpm, driven by a servo motor, and provides a power of 7.5Kw and a torque of 35.8Nm.
- GSK 218 Control System: It adopts the GSK 218 control system, offering stable and reliable control and operation interface.
- Taiwan 24-Tool Automatic Tool Changer (ATC): Equipped with a 24-tool automatic tool changer system manufactured in Taiwan. It enables fast and accurate tool changes.
- Taiwan HIWIN Ball Screws: Utilizing HIWIN brand ball screws from Taiwan, it ensures high precision, low friction, and long lifespan, guaranteeing the motion accuracy and stability of the machine.
- Taiwan HIWIN Linear Guides: Employing Taiwan HIWIN linear guides, it features high rigidity, high precision, and low friction, providing smooth and precise movement of the worktable.
- Manual Handwheel: Equipped with a manual handwheel, it facilitates manual operations and positioning by the operator.
VMC850 Vertical Machining Center Machine Details
GSK, Fanuc, Siemens controller as optional selection

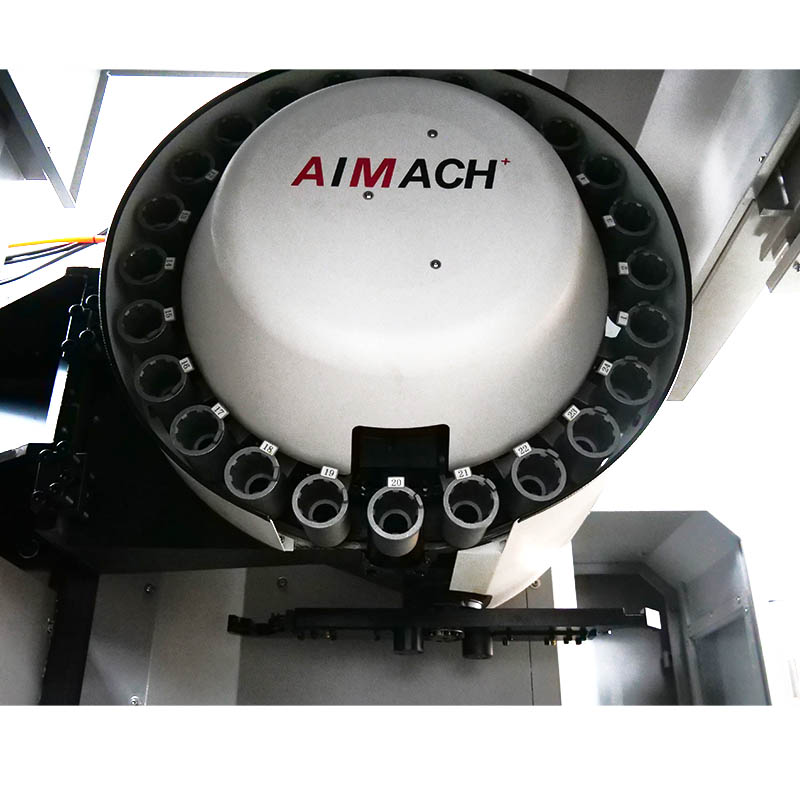

Disc Type ATC
Spindle unit BT40 of VMC

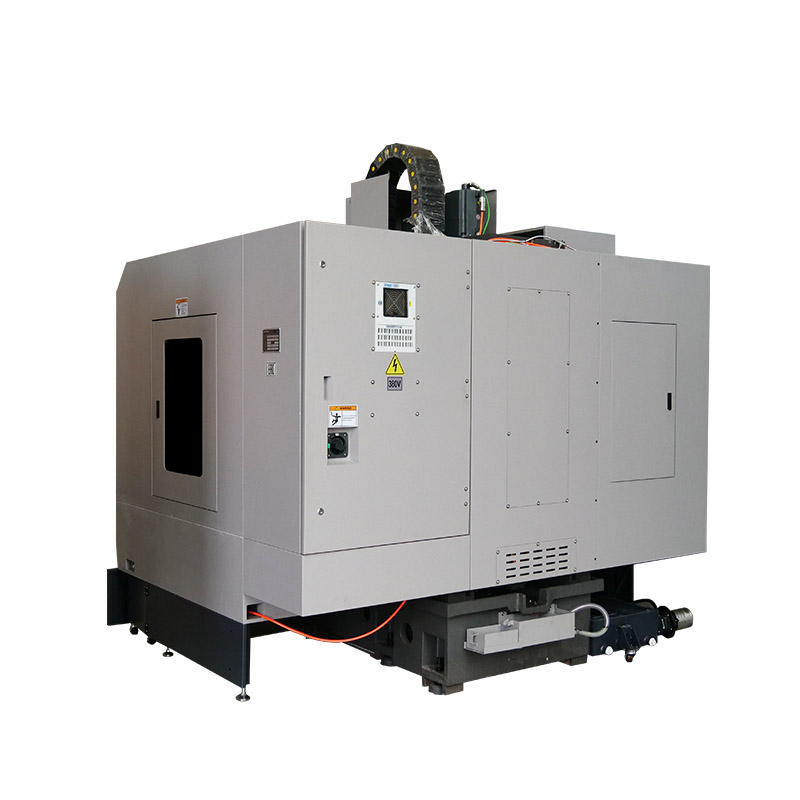

Electrical Cabinet
