Description

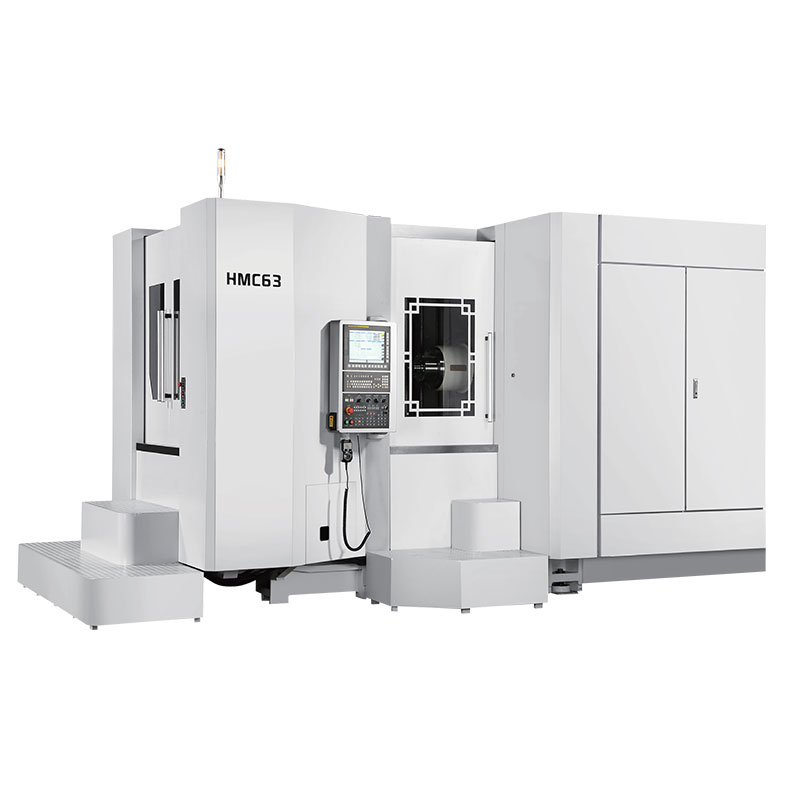

The CNC horizontal machining center HMC63 consists of several key components.Specifically, it includes the spindle, screw, and lubrication system.In addition, it features a cooling system, control panel, and electronic control system.
Specification
| Specification | Unit | HMC63 |
| The workbench | Single pallet | |
| Table size | mm | 630×630 |
| Maximum weight support of table | kg | 1200 |
| Number of workstations | 1 | |
| Mesa form | mm | 24xM16 螺纹钉 P.125 |
| Distance from spindle center to workbench (straight line) | mm | 100~1000 |
| Workpiece diameter | mm | 50~1080 |
| Workpiece diameter | mm | 1050 |
| Table indexing | 1×360 | |
| Table structure form | / | |
| Bench changing time | s | / |
| Work schedule (X/Y/Z) | mm | 1050/900/1030 |
| Fast moving distance (X/Y/Z) | m/min | 60/60/60 |
| B axis fast moving | m/min | 11 |
| Spindle power | kw | 18.5×26 |
| Highest speed | rpm | 8000 |
| Main shaft hole chain | BT50 | |
| Spindle diameter | mm | 100 |
| Positioning accuracy | mm | 0.01 (全程) |
| Repeat positioning accuracy | mm | 0.006（全程） |
| B axis indexing accuracy | 6″ | |
| B axis indexing accuracy | 1″ | |
| Tool database | T | 40 |
| Tool selection method | Two way arbitrary | |
| Tool change time | s | 2.5 |
| Machine dimensions (L×W×H) | mm | 6485×3865×3300 |
| Machine weight | kg | 18200 |
Main Features
- The spindle of the horizontal machining center is horizontal and usually has a square table for indexing rotary motion.
- The 3-Axis Plus Rotary Table enables cutting four faces of the workpiece in one clamping.Additionally, it excludes the mounting and top surfaces, making it ideal for box-type parts.
- The automatic exchange workbench processes a workpiece at the loading and unloading position.Simultaneously, it processes another workpiece at the working position.As a result, it shortens auxiliary time and improves processing efficiency.
