Description

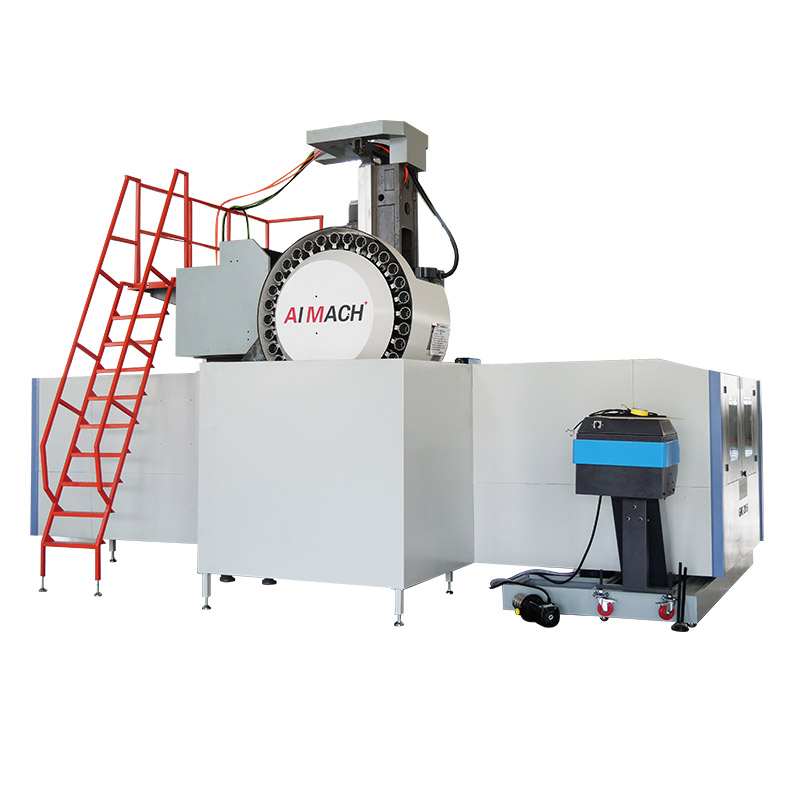

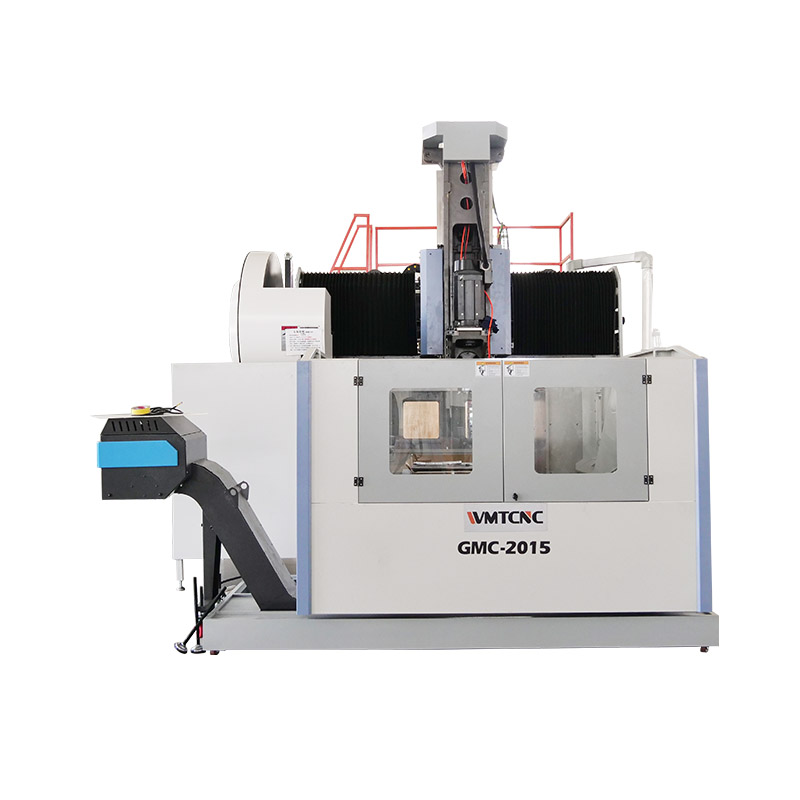

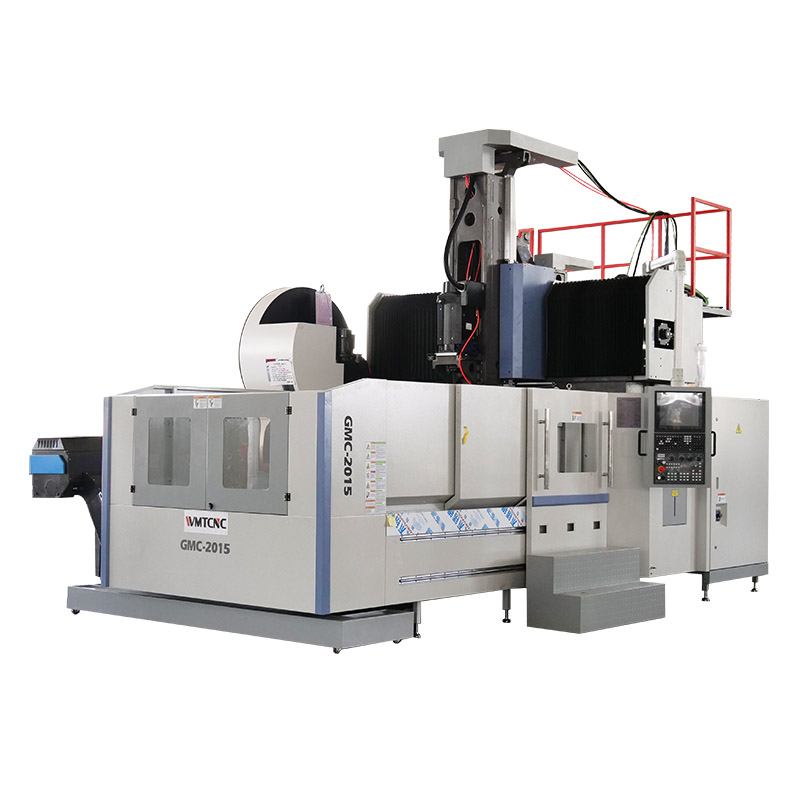

GMC2015 CNC gantry machining center mainly serves aviation, aerospace, automotive, and military industries.Moreover, it processes small-to-medium complex parts in ferrous and non-ferrous metals.It features high precision, fast speed, excellent flexibility, and eco-friendly performance.Its performance indicators and accuracy indicators fully meet national standards. The product is modularly designed and can be serialized and customized according to market demand. Its good performance-price ratio is the best choice for domestic and foreign customers.
The design of the machine tool complies with ISO international standards, and the measurement units of all parts, components and various instruments adopt the International System of Units (SI) standards.
Specification
| Specification | Unit | GMC2015 | ||
|---|---|---|---|---|
| Workbench | Workbench size | mm | 1200×2100 | |
| Distance between two columns | mm | 1500 | ||
| Max. load | Kg | 3000 | ||
| T-slot size | 22×7 | |||
| Processing range | Max. table travel – X axis | mm | 2000 | |
| Max. travel of carriage – Y axis | mm | 1500 | ||
| Max. spindle travel – Z axis | mm | 800 | ||
| Distance from spindle nose to table surface | Max. | mm | 950 | |
| Min. | 150 | |||
| Spindle | Taper Bore | BT50 | ||
| RPM range | r/min | 40～6000 | ||
| Max. output torque | N·m | 113 | ||
| Spindle motor power | kW | 18.5 | ||
| Feed | Cutting feed speed | mm/min | 1～10000 | |
| Rapid feed speed | X axis | m/min | 15 | |
| Y axis | 15 | |||
| Z axis | 15 | |||
| Positioning accuracy | X axis | Standard: JB/T8771.4-1998 | mm | 0.025 |
| Y axis | 0.02 | |||
| Z axis | 0.015 | |||
| Re-positioning accuracy | X axis | Standard: JB/T8771.4-1998 | mm | 0.014 |
| Y axis | 0.012 | |||
| Z axis | 0.01 | |||
| Machine Weight | Kg | 16000 | ||
| Total electrical capacity | KVA | 48 | ||
| Machine dimensions | mm | 6300×3050×4100 | ||
Main Features
The spindle box uses a T-type slide for stable support.Meanwhile, the Z-axis hard guide ensures smooth cutting and high precision.
The spindle group comes from a professional Taiwanese factory with high precision and excellent performance.Meanwhile, the tool gripper uses the spindle’s butterfly spring to create tension.It pulls the tool holder’s nail via a four-petal claw broaching mechanism.Then, the tool tightly fits the spindle taper hole to ensure firm gripping.
The machine tool has the spindle orientation function.
The bed workbench, including the columns, beams, saddles, spindle boxes and other large parts mentioned later, are all made of high-strength cast iron materials and resin sand casting. Engineers use 3D software to optimize and design these large parts.Moreover, they arrange rib plates reasonably to enhance structural rigidity.
