Description

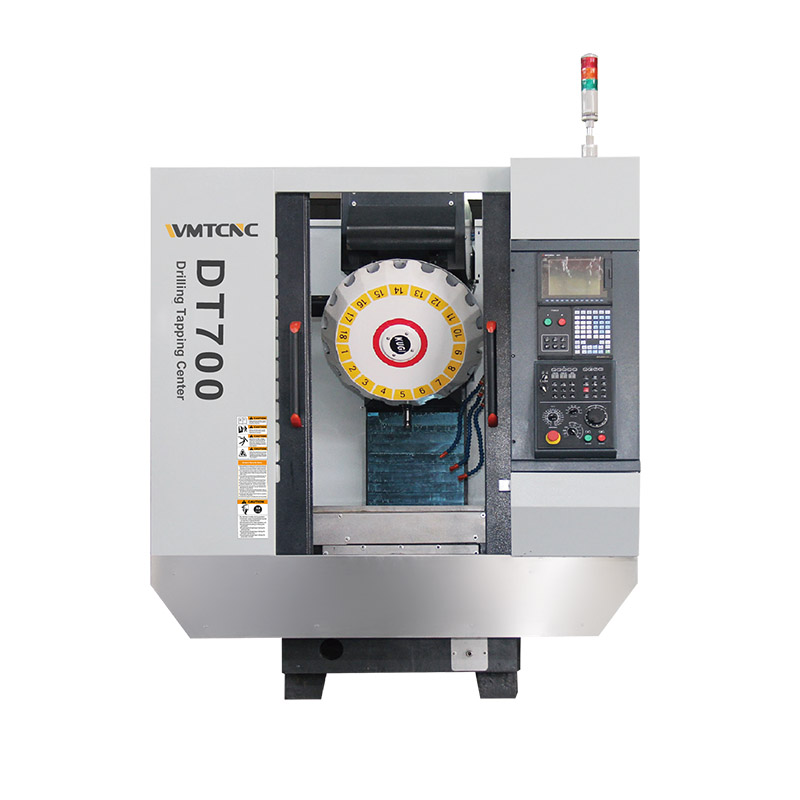

The DT700 high-speed drilling & tapping center is engineered for superior productivity and machining precision. Designed with a BT30-100 inline spindle, this machine reaches up to 20,000 rpm, delivering exceptional performance in high-speed drilling, tapping, and light milling tasks.
Whether you’re producing small metal parts, electronic housings, or doing high-speed hole processing, the drilling & tapping center DT600 gives you speed, rigidity, and precision in one compact, efficient platform.
Drilling & Tapping Center Specification
| Specification | DT700 |
|---|---|
| Worktable size | |
| Worktable size (L×W) | 800×420mm |
| T-slots size (N×W×D) | 3–14×125mm |
| Travel | |
| X/Y/Z axis travel | 700/400/350mm |
| Machining range | |
| Distance from spindle nose to worktable | 145–495mm |
| Distance from spindle center to column | 445mm |
| Spindle | |
| Spindle taper | BT30-100 |
| Spindle power | 3.7 / 5.5kW |
| Max. spindle speed | 20000rpm |
| Feed | |
| Rapid feed speed (X/Y/Z) | 48 / 48 / 48 m/min |
| Ball screw | |
| X/Y/Z axis ball screw | Ø32 / P16 / C3 |
| Positioning accuracy | |
| Positioning accuracy (X/Y/Z) | ±0.005 / 300mm |
| Re-positioning accuracy (X/Y/Z) | ±0.003 / 300mm |
| Machine dimension | |
| L×W×H | 1550×2700×2500 mm |
| Machine weight | |
| Max. loading of worktable | 300kg |
| Machine weight | 2500kg |
Main Features
1.With an expanded 800×420mm worktable and extended 700mm X-axis travel, the DT700 offers more flexibility for larger or multi-part setups.
2.Precision-ground ball screws (Ø32/P16/C3) and high-speed rapids (48 m/min) on all axes shorten cycle times while maintaining ±0.005mm positioning accuracy and ±0.003mm repeatability.
3.Its compact footprint (1550×2700mm), combined with powerful 3.7/5.5kW spindle power, makes it ideal for factories focused on electronics, automotive components, tooling, and other high-efficiency, high-accuracy production applications.
Drilling & Tapping Center Machine Details

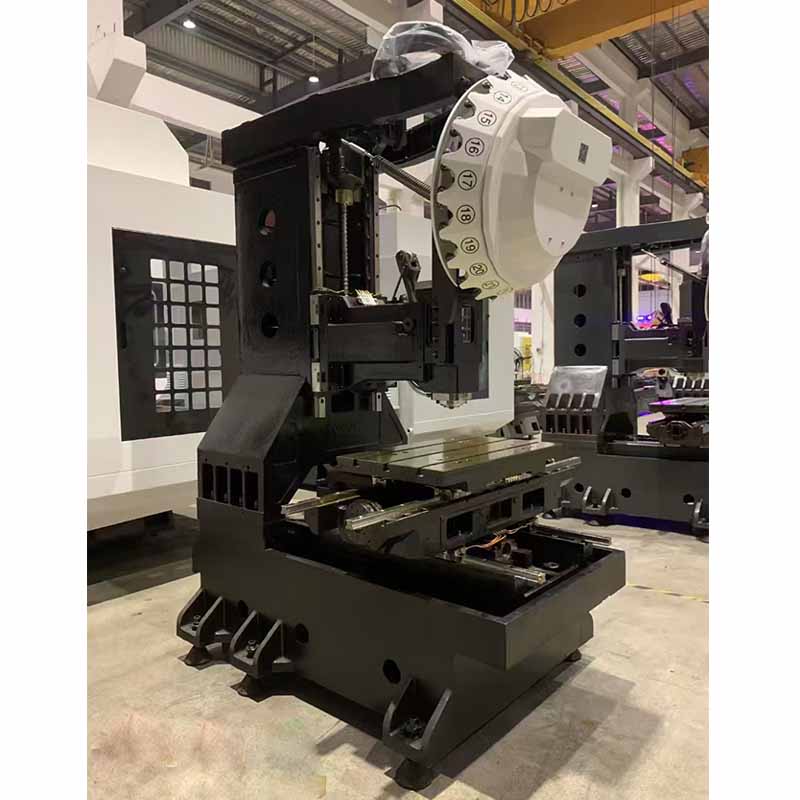

Tool Magazine

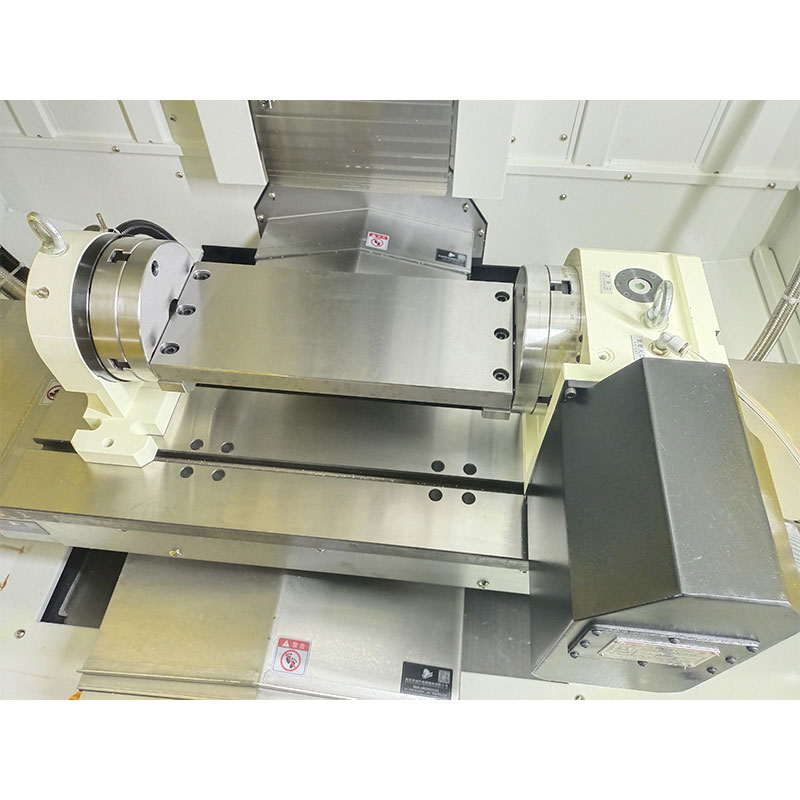

Worktable
