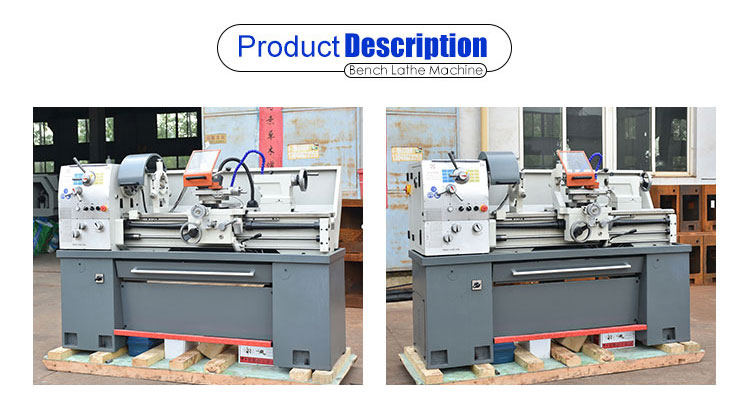

Description

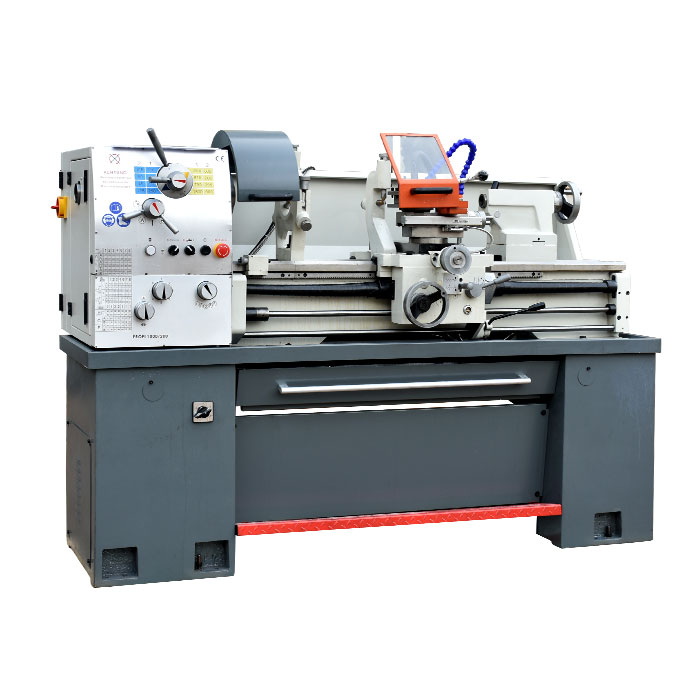

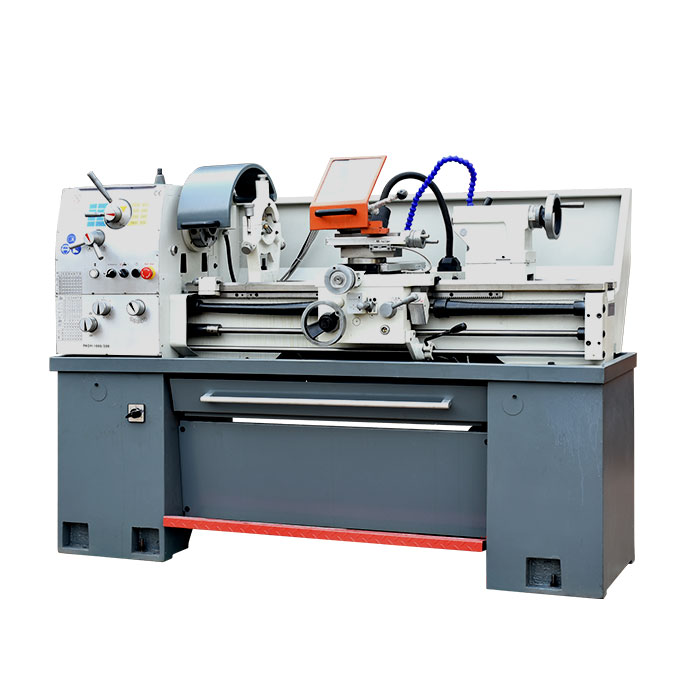

Lathe is a machine that rotates a workpiece about an axis of rotation to perform various operations such as cutting, sanding, knurling, drilling, deformation, facing, and turning.WMT BRAND bench lathe CQ6236F will offer you perfect service by excellent performance, strong rigidity, long-term stability and higher accuracy.
Specification
| Specification | CQ6236F |
| Max. swing over bed | 356mm |
| Max. swing over cross slide | 220mm |
| Max. swing in gap | 506mm |
| Max. length of workpiece | 1000mm |
| Width of bed | 206mm |
| Spindle speed range | (16 changes) 45–1800 rpm |
| Spindle bore | 38mm or 51mm |
| Spindle nose | D4 or D5 |
| Taper of spindle bore | MT5 or MT6 |
| Center height | 178mm |
| Threads metric pitches | 0.4–7mm (28 kinds) 0.45–7.5mm (22 kinds) |
| Threads imperial pitches | 4–56 TPI (28 kinds) 4–112 TPI (40 kinds) |
| Compound rest travel | 90mm |
| Cross slide travel | 150mm |
| Max. section of tool | 16×16mm |
| Longitudinal feeds range | 0.043–0.653mm/rev 0.0012–0.0297in/rev |
| External diameter | 45mm |
| Max. travel | 100mm |
| Taper of bore | MT3 |
| Main motor power | 1.5/2.4KW |
| Coolant pump power | 40W |
| Packing size (L×W×H) | 1950×750×1500mm |
| Net weight | 700kg |
| Gross weight | 800kg |
Main Features
- Precision ground and hardened bed ways.
- The spindle is supported with precision roller bearings.
- Headstock gears are made of high quality steel ground and hardened.
- Easy operating speed change levers.
- Removable gap is provided for larger diameter work.
- Easy operating gear box has various feeds and thread cutting function.
- Circular appearance as optional
- 51mm big spindle bore as optional

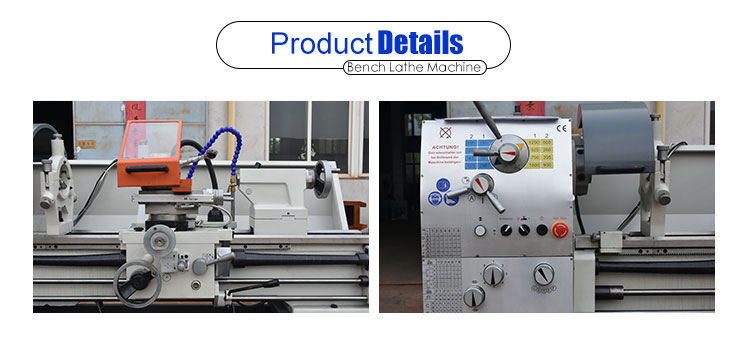

Machine details
