Description

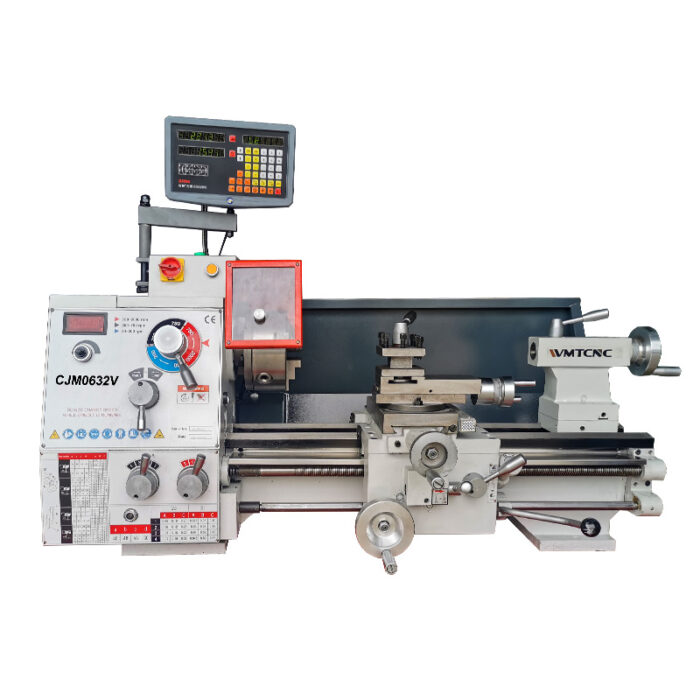

Lathe is a machine that rotates a workpiece about an axis of rotation to perform various operations such as cutting, sanding, knurling, drilling, deformation, facing, and turning.WMT BRAND bench lathe CJM0632V will offer you perfect service by excellent performance, strong rigidity, long-term stability and higher accuracy.
Specification
| Model | CJM0632V |
| Max Swing diameter on the bed | 320 mm |
| Distance between centers | 500 / 750 mm |
| Max swing over cross slide | 180 mm |
| Spindle bore | 38 mm |
| Spindle taper | MT.5# |
| Max longitudinal travel over toolpost | 160 mm |
| Max cross slide travel over toolpost | 75 mm |
| Metric thread kinds | 18 |
| Metric thread range | 0.20–3.5 mm |
| Inch thread kinds | 34 |
| Inch thread range | 4½–48 1/n″ |
| Module thread kinds | 16 |
| Module thread range | 0.20–1.75 π |
| Pitch thread kinds | 24 |
| Pitch thread range | 16–120 π/DP″ |
| Longitudinal feed range | 0.08–0.56 mm/r |
| Cross-feed range | 0.04–0.28 mm/r |
| Max tailstock quill travel | 60 mm |
| Tailstock quill taper | MT.3# |
| Spindle speed kinds | 3 kinds + variable speed |
| Spindle speed range | 30–2000 r/min |
| Main motor | 750W 380V 50HZ (or 220V 50HZ) |
| Net weight (without stand) | 300kg |
| Gross weight (without stand) | 350kg |
Main Features
- Precision ground and hardened bed ways.
- The spindle is supported with precision roller bearings.
- Headstock gears are made of high quality steel, ground and hardened.
- Two different lengths of bed are available.

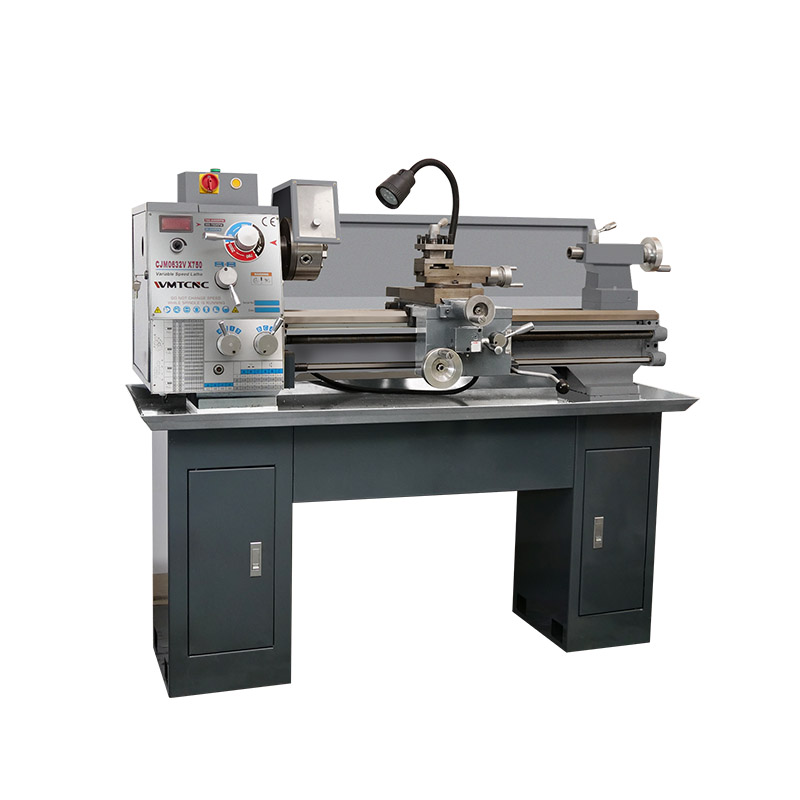

- With or without cabinet according to requirement.

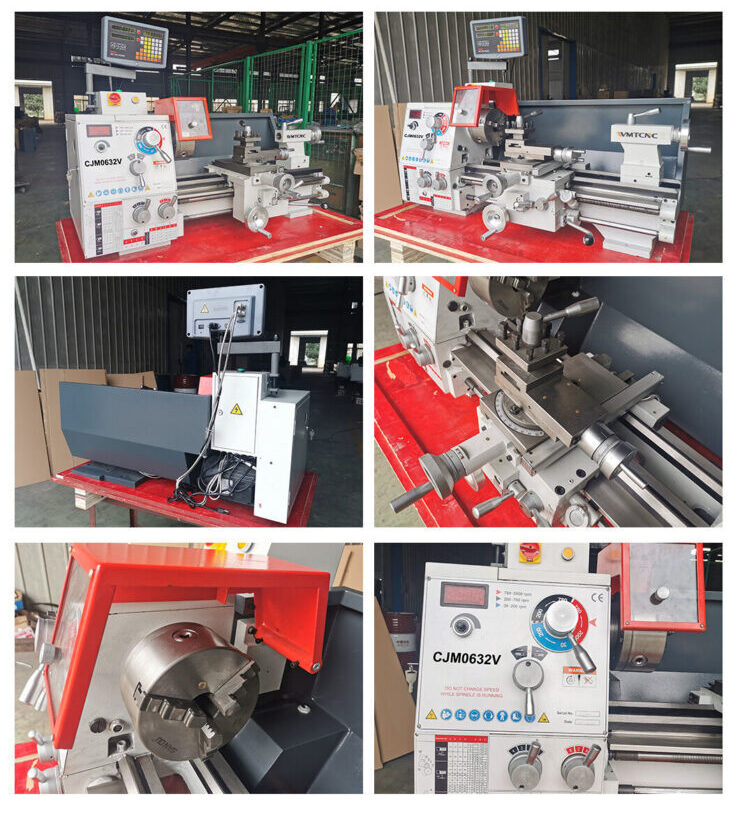

Machine details
