Description

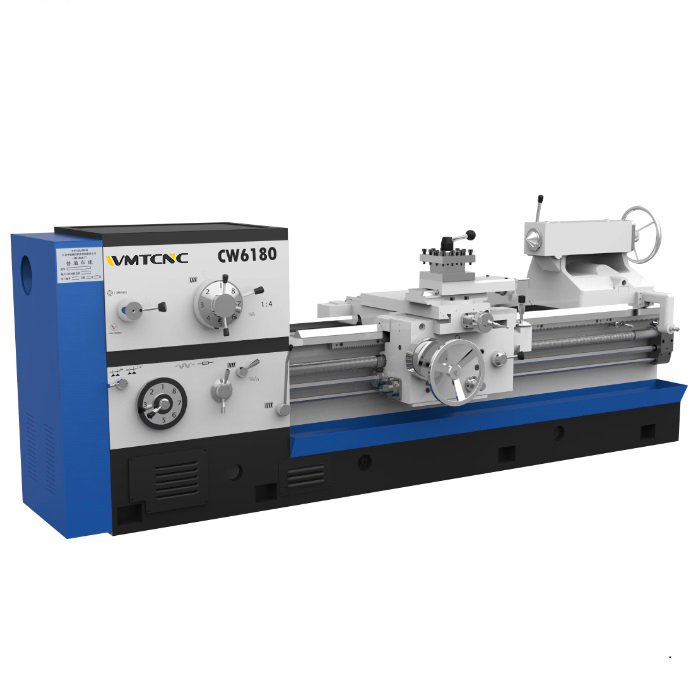

Lathe is a machine that rotates a workpiece about an axis of rotation to perform various operations such as cutting, sanding, knurling, drilling, deformation, facing, and turning. WMT BRAND bench lathe CW6180 will offer you perfect service by excellent performance, strong rigidity, long-term stability and higher accuracy.
Specification
| Specification | CW6180(A) |
|---|---|
| Max. swing over bed | Φ800mm (31-1/2″) |
| Max. swing over gap | Φ1000mm (39″) |
| Max. swing over cross slide | Φ480mm (18-3/4″) |
| Center distance | 850–11850mm (multiple options) |
| Width of bed | 600mm (23-1/2″) |
| Spindle hole | Φ105mm (Φ130mm optional for CW6180) |
| Spindle taper | Φ120mm taper 1:20 |
| Spindle speeds | 0.75–1000 r/min |
| Metric threads | 1–240mm (52 kinds) |
| Inch threads | 1–14 TPI (26 kinds) |
| Module threads | 0.5–120mm (53 kinds) |
| Diametral threads | 1–28 DP (24 kinds) |
| Longitudinal feed range | 0.1–24.3 mm/r |
| Cross feed range | 0.05–12.15 mm/r |
| Rapid feed (long/cross) | 4000 / 2000 mm/min |
| Tool section | 32mm × 32mm (1-1/4″ × 1-1/4″) |
| Cross slide travel | 370mm (14-1/2″) |
| Compound rest travel | 200mm (7-3/4″) – A type: 170mm (6-2/3″) |
| Sleeve diameter | 100mm (3-3/4″) |
| Sleeve taper | Morse 6 |
| Sleeve travel | 240mm (9-1/2″) |
| Steady rest | Φ20–200mm (3/4″–7-3/4″) |
| Follow rest | Φ20–135mm (3/4″–5-1/4″) |
| Main motor | 11kW (15kW), 15HP (20HP) |
| Rapid feed motor | 1.1kW (1.5HP) |
| Weight | 4600–11700kgs (based on length) |
| Length | 3000–14000mm (multiple options) |
| Width | 1170mm |
| Height | 1250mm |
Main Features
- Perform internal and external turning, taper turning, end facing, and other rotary parts turning;
- Threading Inch, Metric, Module and D.P.;
- Perform drilling, boring and groove broaching;
- Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
- Both Inch and Metric system are used on these series lathes, it’s easy for people from different measuring systems countries;
- There are hand brake and foot brake for users to choose;
- Power supply of different voltages (220V/380V/420V) and different frequencies (50Hz,60Hz) are available.
Machine details
Spindle bore 105mm
Tailstock
DRO for optional
Electrical box
