Description

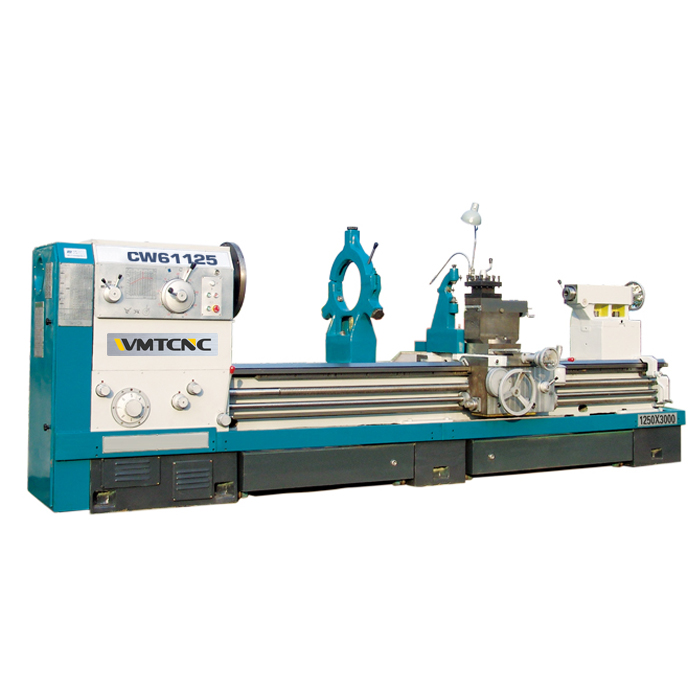

Lathe is a machine that rotates a workpiece about an axis of rotation to perform various operations such as cutting, sanding, knurling, drilling, deformation, facing, and turning. WMT BRAND bench lathe CW61125 will offer you perfect service by excellent performance, strong rigidity, long-term stability and higher accuracy.
Specification
| Item | CW61125 |
|---|---|
| Swing over bed | 1250mm |
| Bed width | 755mm |
| Workpiece length | 1500 / 3000 / 5000 / 6000 / 8000 / 15000mm |
| Swing over toolpost | 865mm |
| Max. turning length | 1300 / 2800 / 4800 / 5800 / 7800 / 14800mm |
| Toolpost feed kinds per spindle rotation | 56 kinds |
| Cross feed range | 0.1–12 mm/r |
| Longitudinal feed range | 0.05–6 mm/r |
| Upper toolpost feed | 0.025–3 mm/r |
| Metric thread | 43 kinds, 1–20 mm |
| Inch thread | 29 kinds, 28–3/8 teeth/inch |
| Module thread | 45 kinds, 0.5–60 mm |
| Pitch thread | 25 kinds, 1–56 mm |
| Spindle bore | 130mm |
| Spindle front taper | Metric 140 |
| Spindle speed (forward) | 21 kinds, 2–200 r/min |
| Spindle speed (reverse) | 12 kinds, 2.24–178 r/min |
| Max. tool section | 45 × 45 mm |
| Longitudinal toolpost travel | 630 mm |
| Upper toolpost travel | 300 mm |
| Toolpost rapid movement (L/C/U) | 3470 / 1870 / 935 mm/min |
| Center sleeve diameter & travel | 160 × 300 mm |
| Tailstock taper | MT6 |
| Tailstock movement | ±25 mm |
| Main motor | Y180L-4, 22 kW |
| Main transmission belt spec | 2134C / 2235C / 2540C |
| Carriage rapid motor | JC02-21-2, 1.5 kW |
| Coolant pump | JCB-45, 0.15 kW |
| Coolant pump flow | 45 L/min |
Main Features
- Perform internal and external turning, taper turning, end facing, and other rotary parts turning;
- Threading Inch, Metric, Module and D.P.;
- Perform drilling, boring and groove broaching;
- Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
- Both Inch and Metric system are used on these series lathes, it’s easy for people from different measuring systems countries;
- There are hand brake and foot brake for users to choose;
- Power supply of different voltages (220V/380V/420V) and different frequencies (50Hz,60Hz) are available.
Machine details

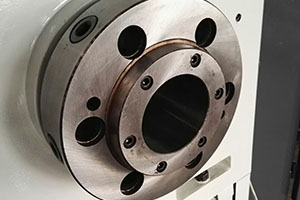

Spindle bore 130mm

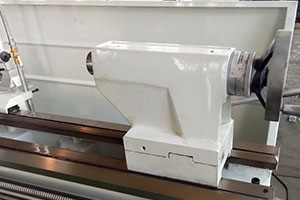

Tailstock

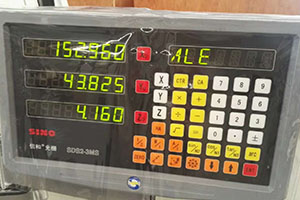

DRO for optional

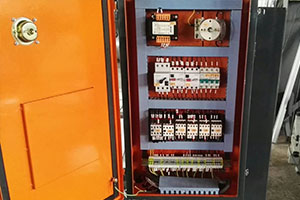

Electrical box
