Description

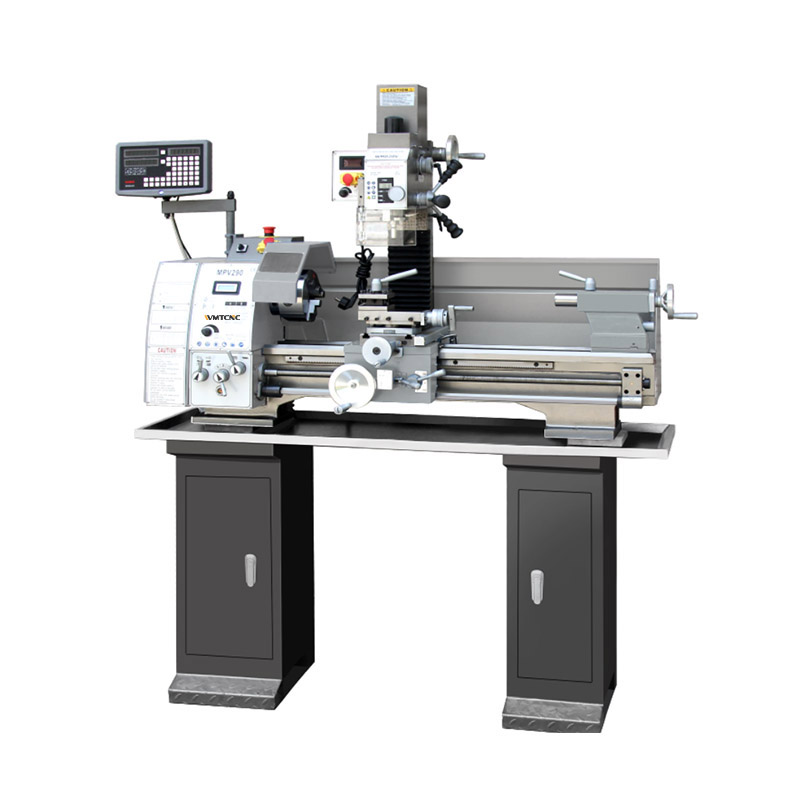

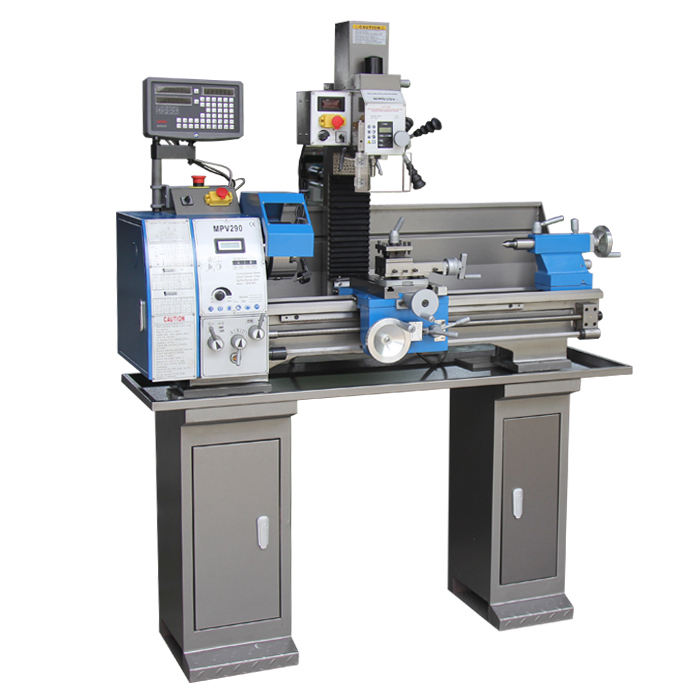

This is a compact, versatile combination machine. Suitable for processing metal and other materials. WMT BRAND Combined Lathe/Drill/Mill MPV290 will offer you perfect service by excellent performance, strong rigidity, long-term stability and higher accuracy.
Specification
| Specification | MPV290 |
| Distance between centers | 700mm |
| Swing over bed | 290mm |
| Swing over cross slide | 165mm |
| Spindle taper | MT5 |
| Width of bed | 180mm |
| Spindle bore | 38mm |
| Range of spindle speeds（variable speed） | 80-2000rpm |
| Range of cross feed | 0.01 -0.10mm /r |
| Range of longitudinal feed | 0.085-0.832mm/rev |
| Range of inch threads | 8-56T.P.I |
| Range of metric threads | 0.2 -3.5mm |
| Top slide travel | 70mm |
| Cross slide travel | 160mm |
| Tailstock quill travel | 70mm |
| Taper of tailstock quill | MT3 |
| Main motor | 1.5kw |
| Drilling and milling head | BF20 |
| Spindle taper | MT3 |
| Spindle travel | 52mm |
| Range of spindle speeds（variable speed） | 50-2250rpm |
| Max. distance from spindle nose to table | 325mm |
| Max. distance from spindle to column | 185mm |
| Motor power | 600w |
| Packing size (for machine) | 1450 × 720 × 1050mm |
| Packing size (for stand) | 800x580x415mm |
| N.W | 325kgs |
Main Features
- Most popular, widely useful variable speed lathe.
- Induction harden precision bedway.
- High precision spindle.
- Head swivels ± 90°.
- Gear drive, low noise.
Machine details
3 jaw chuck
Drilling and milling head
Gear box
Handwheel
