Description
China pipe threading lathe Q1325 is widely used in industries including petroleum exploiting ,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.
Specification
| Specification | Q1325 |
| Capacity | |
| Chuck size | 4-jaw chuck(630) |
| Max. swing dia over bed | 800mm |
| Max. swing dia over slide | 520mm |
| Max. length of workpiece | 1500mm |
| Width of bed | 550mm |
| Spindle | |
| Spindle bore | 255mm |
| Spindle motor power | 11kw |
| Spindle speed | VF 2steps(15-350)r/min |
| Axis | |
| Z axis feed grade/range | 32/0.095-1.4mm/r |
| X axis feed grade/range | 32/0.042-0.7 |
| Carriage rapid traverse speed | 3740mm/min |
| Cross slide rapid traverse speed | 1870mm/min |
| Metric thread grade / range | 22/1-15mm |
| Inch thread grade / range | 26/14-1T.P.I |
| Traverse of cross slide | 330mm |
| Max. traverse of turret | 200mm |
| Tailstock | |
| Tailstock quill diameter | 100mm |
| Tailstock quill travel | 250mm |
| Tailstock quill taper | MT6 |
| Machine Dimensions | |
| Overall dimensions (L×W×H) | 3750×1750×1550mm |
| Machine weight | 6t |
Main Features
- Big spindle bore and double chuck allow clamp and process big diameter pipes.
- Integral machine bed adopts high strength iron to realize high rigidity and precision.
- Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance.
- Equipped with a taper guide bar device this enables the machine to process taper threads.

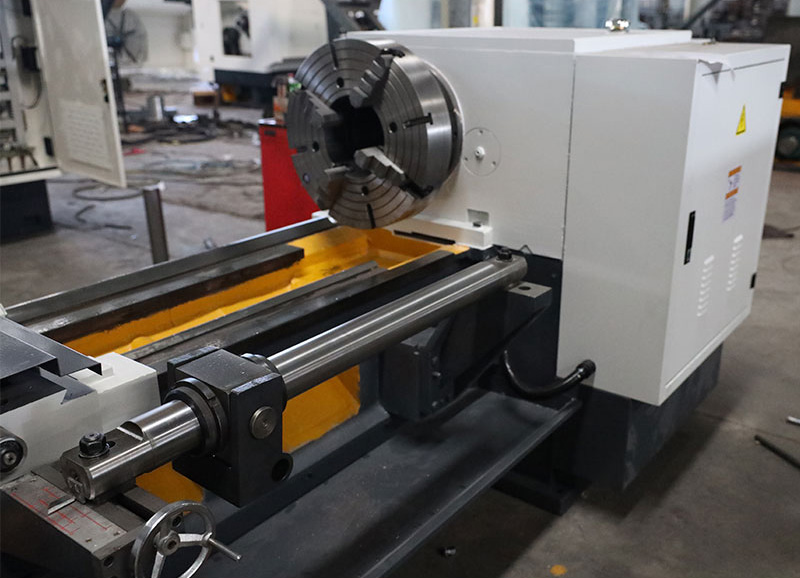

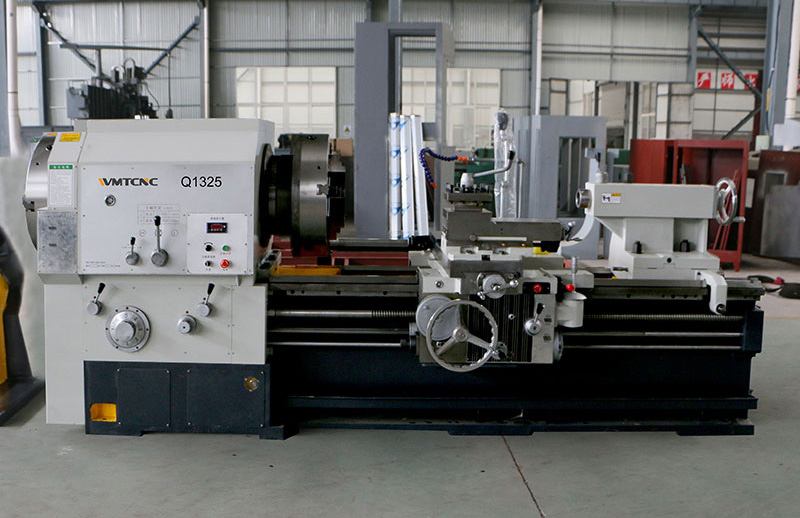

Machine Details
