Description
DVT52 series implement the latest national precision standard and safety standard, equipped with advanced and reliable electro-mechanical components at home and abroad, whose excellent structural performance and strong rigidity can meet the requirement of strong cutting. The table can bear large tonnage load with good stability, high eficiency, safety and relibility. The DVT system controls the left and right tool holders directly. Moreover, each holder features a digital display scale for accuracy. Beijing Super Synchronous supplies the servo drive and X, Z axis feed motors. Additionally, the servo motors drive the X and Z axes of both holders. Then, precision planetary reducers boost torque before engaging the ball screws. As a result, the ball screws enable smooth horizontal and vertical movement.
Specification
| Specification | DVT5225 |
| Table dia. | 2250mm |
| Max. turning dia. | 2500mm |
| Max. workpiece height | 1600 / 2000 / 2500mm |
| Max. workpiece weight | 10, *15, *20t |
| Max. torque of worktable | 63KN.m |
| Table rotation speed range (16 step) | 0.5–60r/min |
| 2–63r/min | |
| Max cutting force of the vertical holder | 32KN |
| Vertical toolholder move limit | ±30° |
| Range of feed rates (18 step) | 0.1–500mm/min |
| Horizontal travel of rail head | 1400mm |
| Ram travel of rail head | 1000, *1250mm |
| Beam travel | 1250mm |
| Ram section | 240×240mm |
| Fast moving speed of tool heads | 3500mm/min |
| Tool bar section size (W×D) | 40×50mm |
| Main motor power | DC/AV: 55KW |
| Overall size (L×W×H) | 7200×5500×4420mm |
| Machine weight | 36t |
Main Features
Conventional vertical lathe machine with double column;
Rigid column and stable;
DRO optional;
Precise cutting for heavy metal parts.

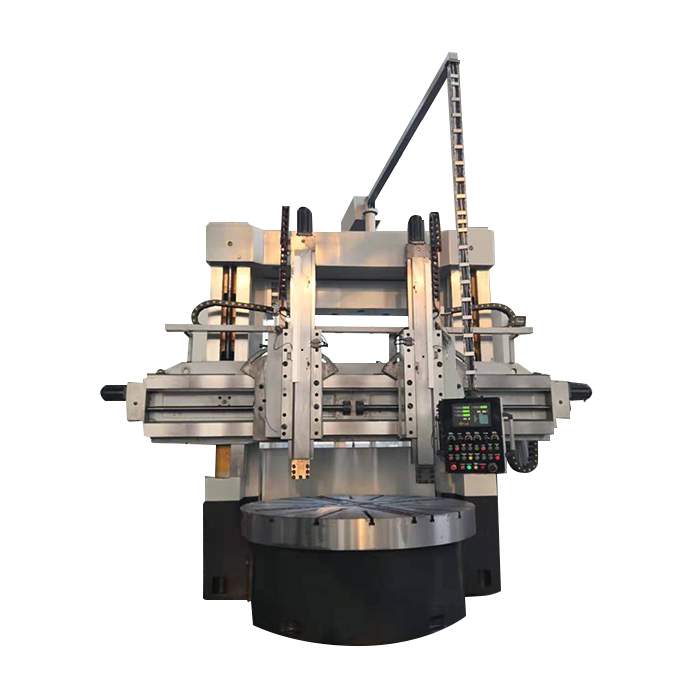

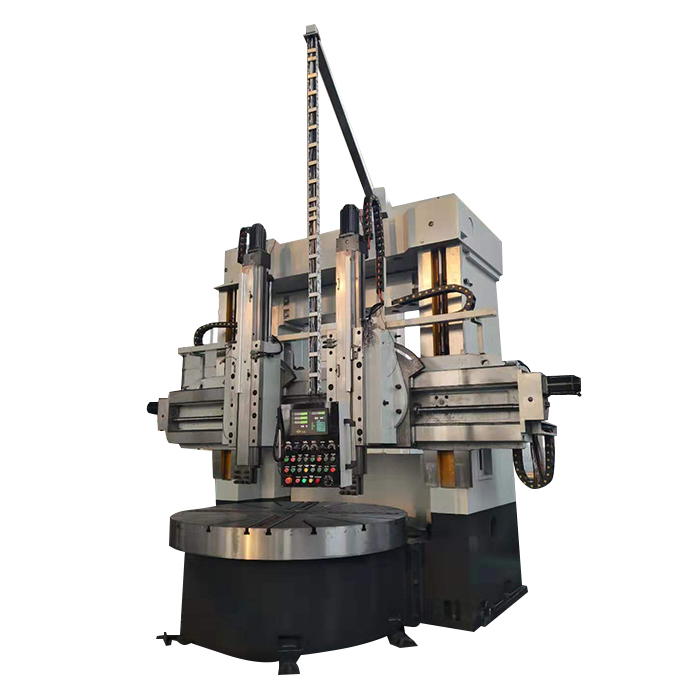

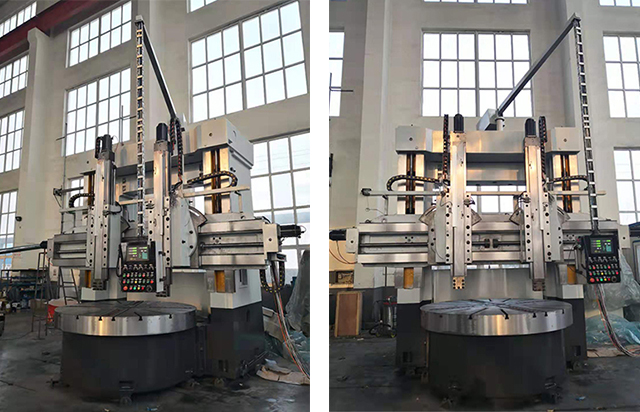

Machine Pictures
