Description

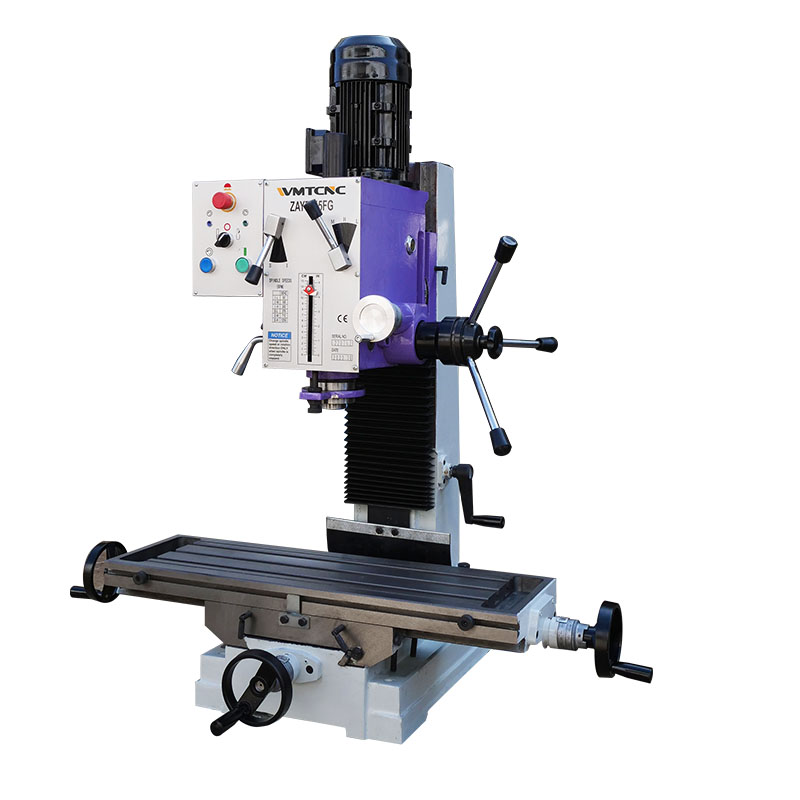

The WMT CNC ZAY7045FG stands out as a modern drilling and milling machine that delivers dependable strength at a highly competitive price. Engineered to meet the needs of today’s workshops, it combines solid construction with practical features that support both precision work and everyday operations.
This model offers the confidence of long-term durability while remaining cost-effective, making it appealing for businesses and individual machinists alike. The ZAY7045FG also reflects WMTCNC’s dedication to providing solutions that balance innovation, value, and reliability. Whether for small workshops or larger production settings, it ensures users have the performance and usability required to keep projects running smoothly and efficiently.
Machine Details
 |  |

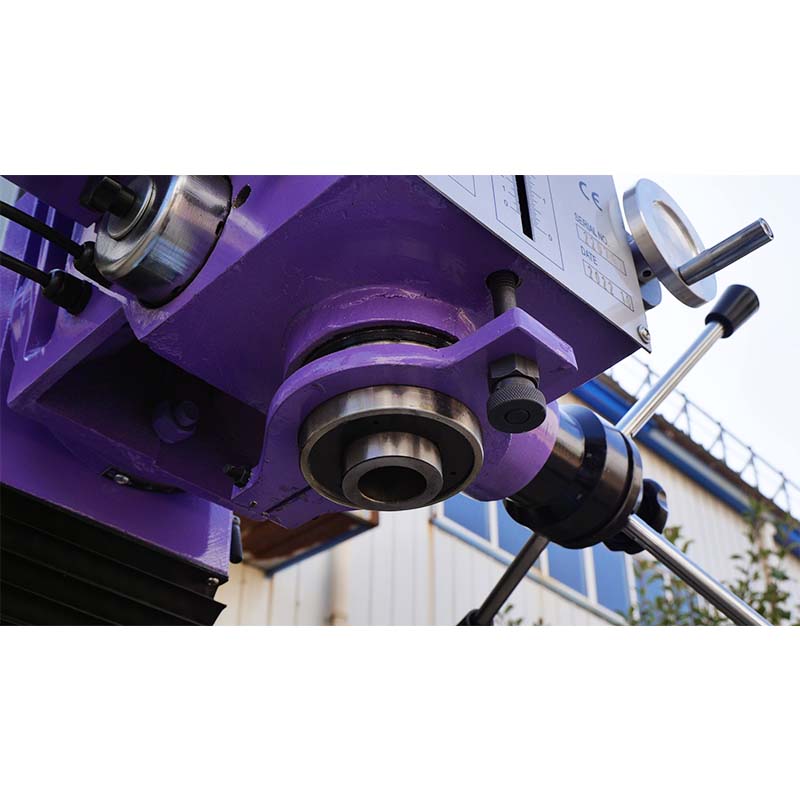

| Spindle | DRO for optional |
 |  |

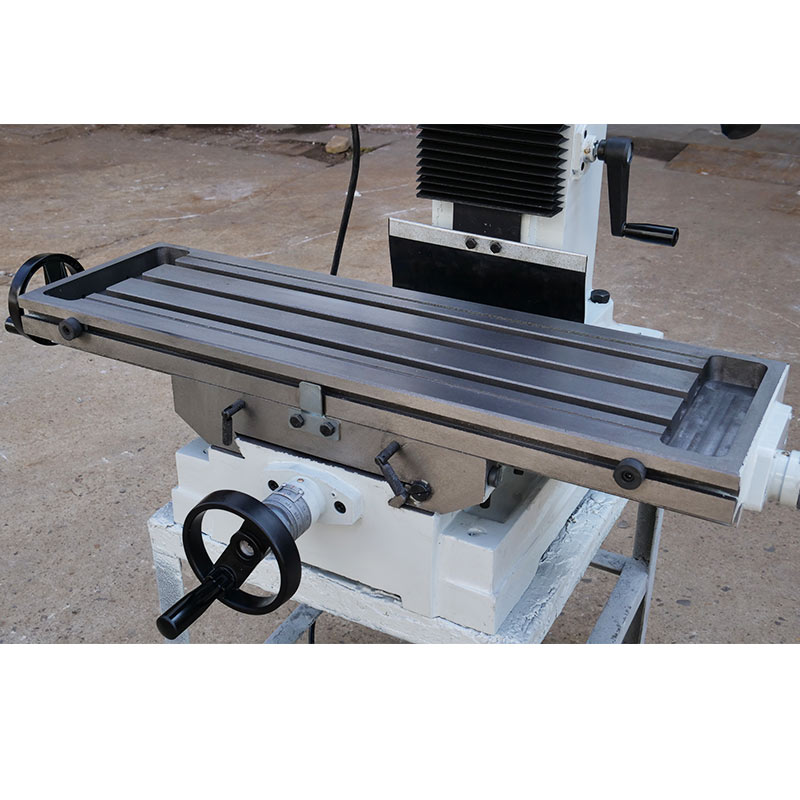

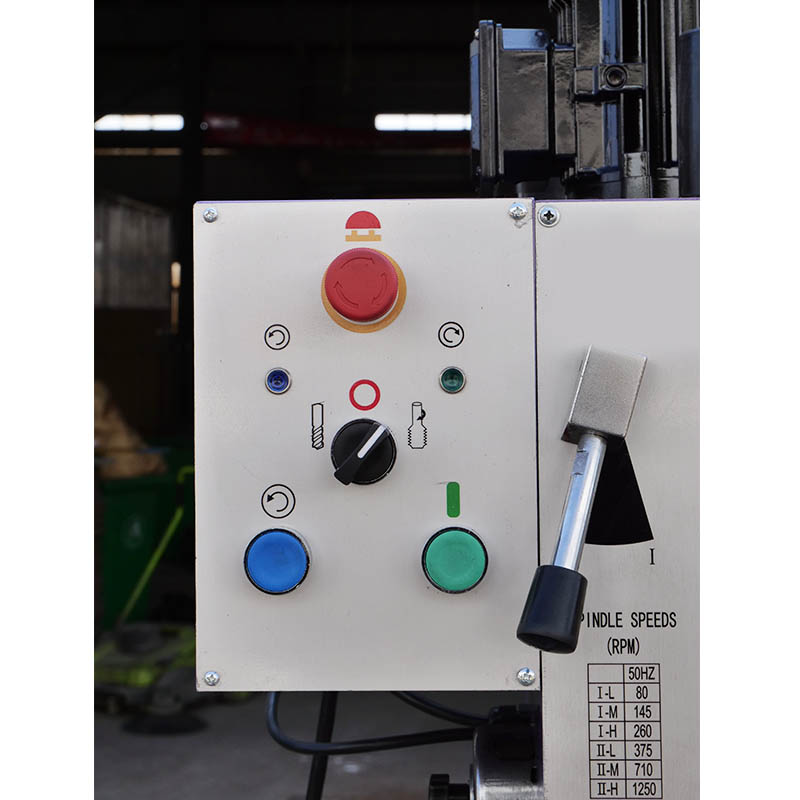

| Working table | Electrical box |
Specification of Drilling and Milling Machine ZAY7045FG
| Specification | ZAY7045FG |
| Max. drilling capacity | 45mm |
| Max. tapping capacity | 20mm |
| Max. face milling capacity | 80mm |
| Max. end milling capacity | 32mm |
| Max. distance from spindle nose to table | 450mm |
| Min. distance from spindle axis to column | 260mm |
| Spindle travel | 130mm |
| Spindle taper | R8 |
| Step of spindle speed | 6 steps |
| Range of spindle speed 50HZ | 80-1250rpm |
| Range of spindle speed 60HZ | 95-1500rpm |
| Swivel angle of headstock (vertical) | ±45° |
| Table size | 800×240mm |
| Forward and backward travel of table | 175mm |
| Left and right travel of table | 500mm |
| Motor power | 1.5kw (2HP) |
| N.w/G.w | 320/370kg |
| Packing size (LxWxH) | 770×880×1160mm |
| Loading amount/20″ container | 36pcs |
Main Features
- Milling,drilling, tapping,boring,reaming
- Head swivels ±45°verticaly

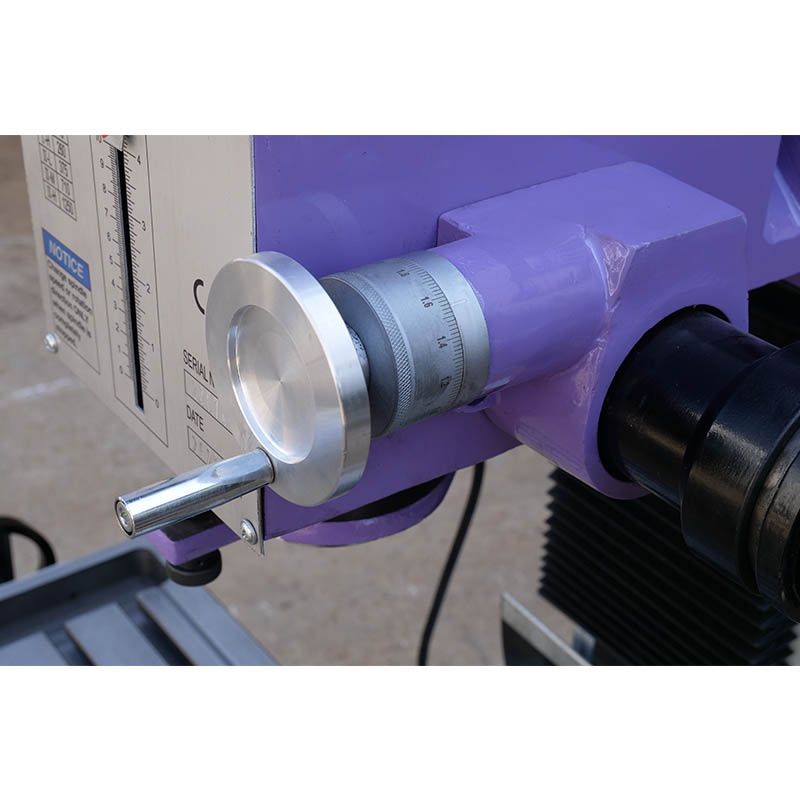

- Spindle micro feed precision

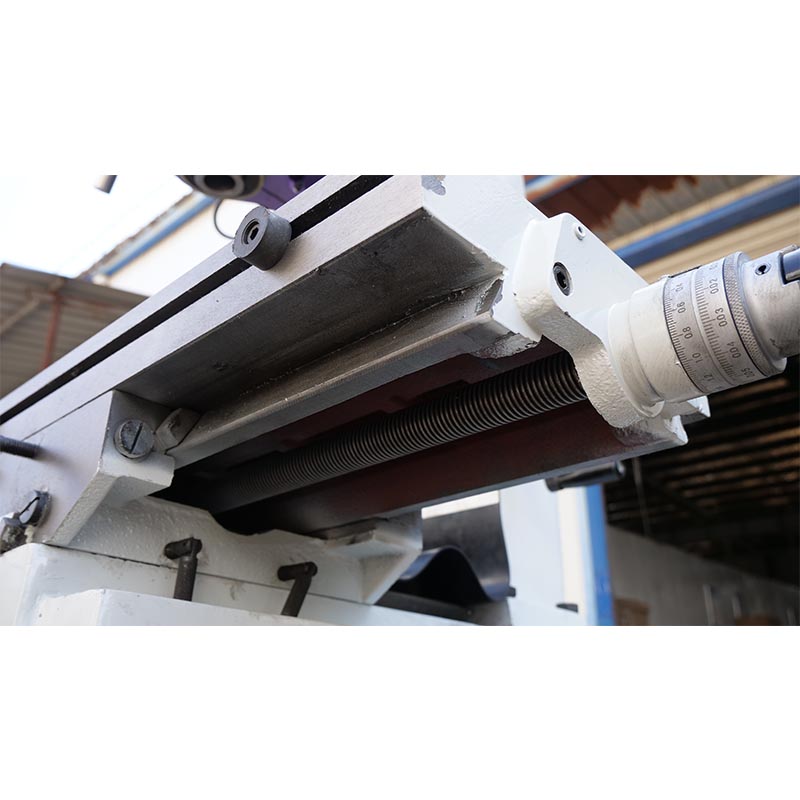

- Adjustable gibs on table precision
- Accurate position ,strong rigidity , powerful cutting
- Gear-driven type and square column.
