Description
Radial drilling machine is provided with hydraulic presetting speed shift mechanism to save auxiliary time. It only needs one handle to operate clockwise rotation, stop (brake), variable speed and neutral gear conveniently. Spindle box, rocker arm, inner and outer posts are reliably clamped by hydraulic diamond clamping mechanism. Perfect safety protector and outer post protection are available. In design and production of structure, it further adopts a series of effective measures to prolong precision durability and lifespan of whole machine. Its electrical equipment completely contributes to personal safety, reliability, long service life and convenient maintenance.

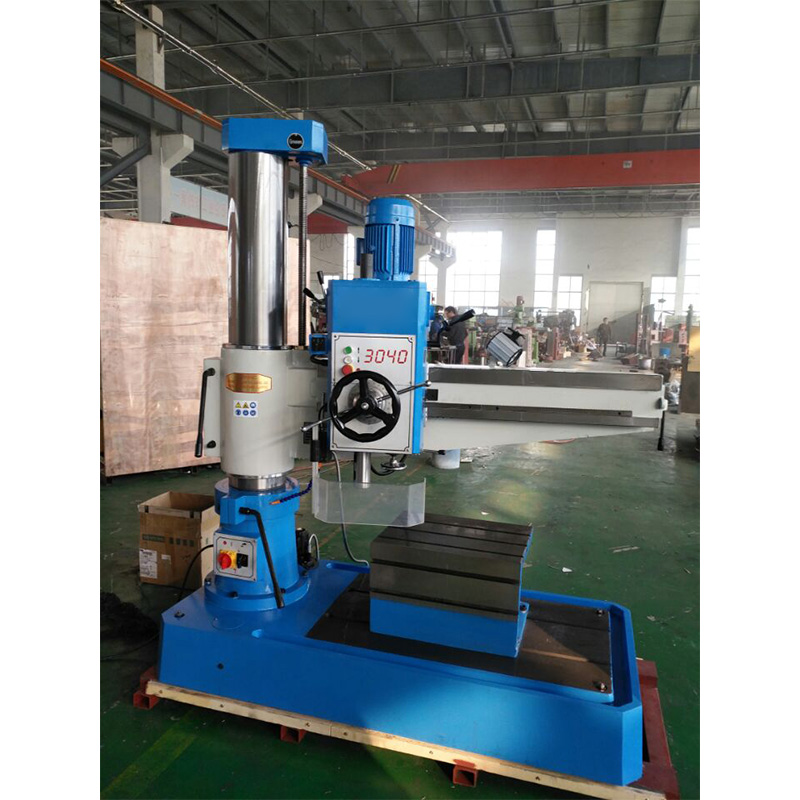

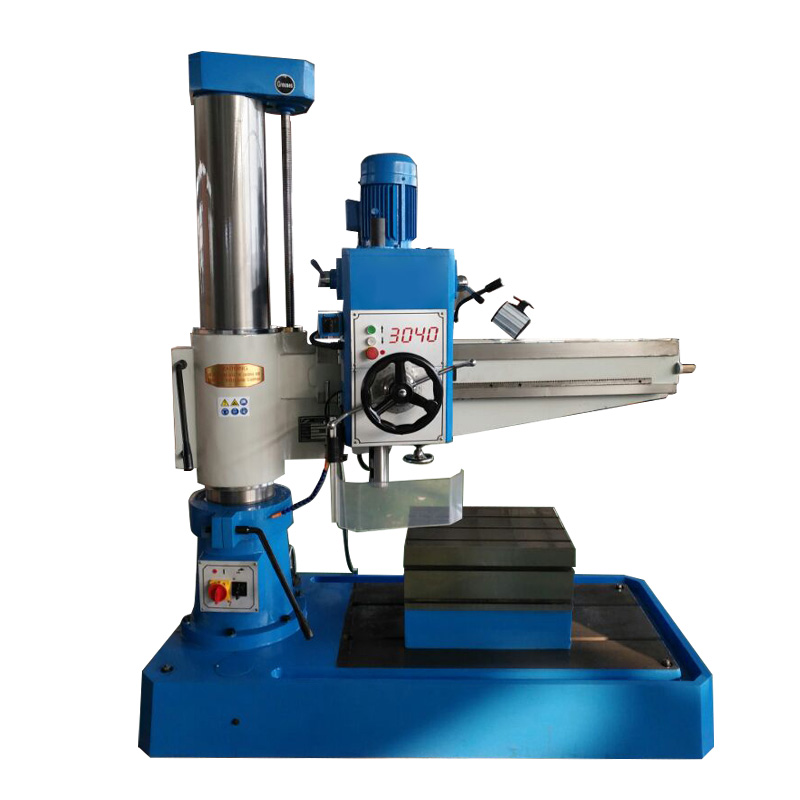

Specification of Radial Drilling Machine Z3040
| Model | Z3040/12 | Z3040/14 |
|---|---|---|
| Max drilling capacity | 40mm | |
| Distance from spindle nose to column | 300-1200/1400mm | |
| Spindle horizontal travel | 900/1100mm | |
| Spindle vertical travel | 300-1240mm | |
| Spindle taper | MT4 | |
| Spindle travel | 210mm | |
| Radial arm lifting speed | 1.26m/min | |
| Radial arm lifting distance | 650mm | |
| Drilling depth per circle | 140mm | |
| Spindle speed | 80-1200r/min | |
| Spindle speed series | 6 | |
| Range of spindle feed | 0.10-0.30mm/r | |
| Spindle feed series | 3 | |
| Main motor power | 1.5kw | |
| Lifting motor power | 0.75kw | |
| Hydraulic clamping motor power | 0.55kw | |
| Coolant pump power | 40w | |
| Table size | 550x350x350mm | |
| Net weight | 1500kgs/1700kgs | |
| Overall size | 1700/1900x800x2200mm | |
Machine Features
Mechanical Speed Shift: Manual gear adjustment with six-speed levels (80–1200 rpm) enables flexible drilling for different materials.
Robust Clamping System: Mechanical locking ensures firm clamping of the spindle box, rocker arm, and column for enhanced machining stability.
High Drilling Capacity: Handles up to 40mm drilling with MT4 spindle taper, ideal for medium and heavy-duty applications.
Extended Travel Range: Spindle vertical travel up to 1240mm and horizontal movement of 900–1100mm accommodate larger workpieces.
Powerful Motor Configuration: Equipped with a 1.5kW main motor, 0.75kW lifting motor, and 0.55kW hydraulic clamping motor for consistent performance.
Efficient Lifting Mechanism: Radial arm lifts up to 650mm at a speed of 1.26m/min, improving adjustment efficiency.
Enhanced Durability: Rigid cast-iron construction ensures long-term accuracy and vibration resistance.
Operator Safety: Integrated safety protections and coolant system enhance user protection and equipment reliability.
Machine Details

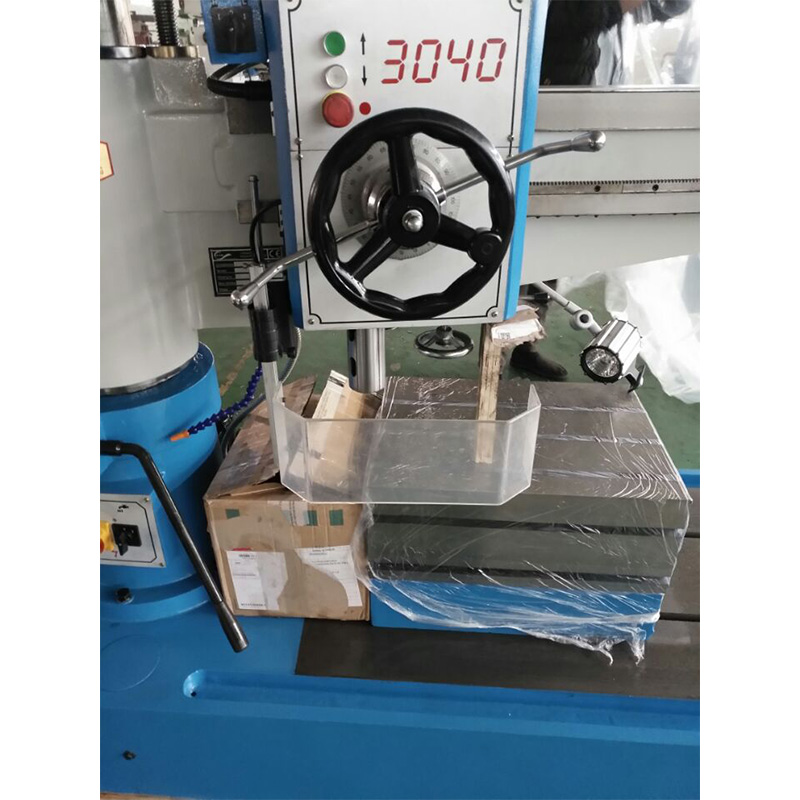

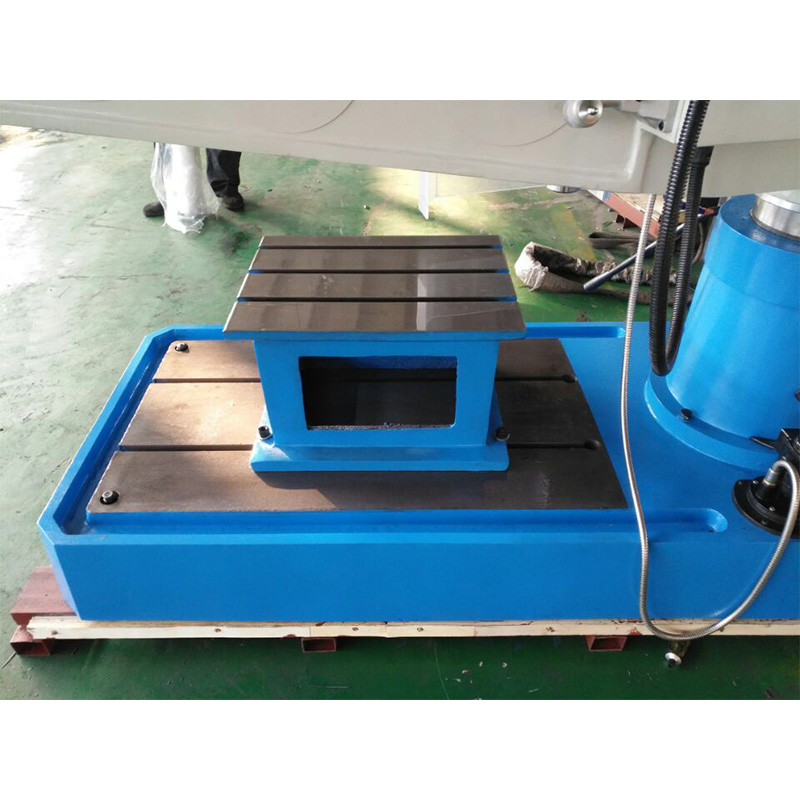

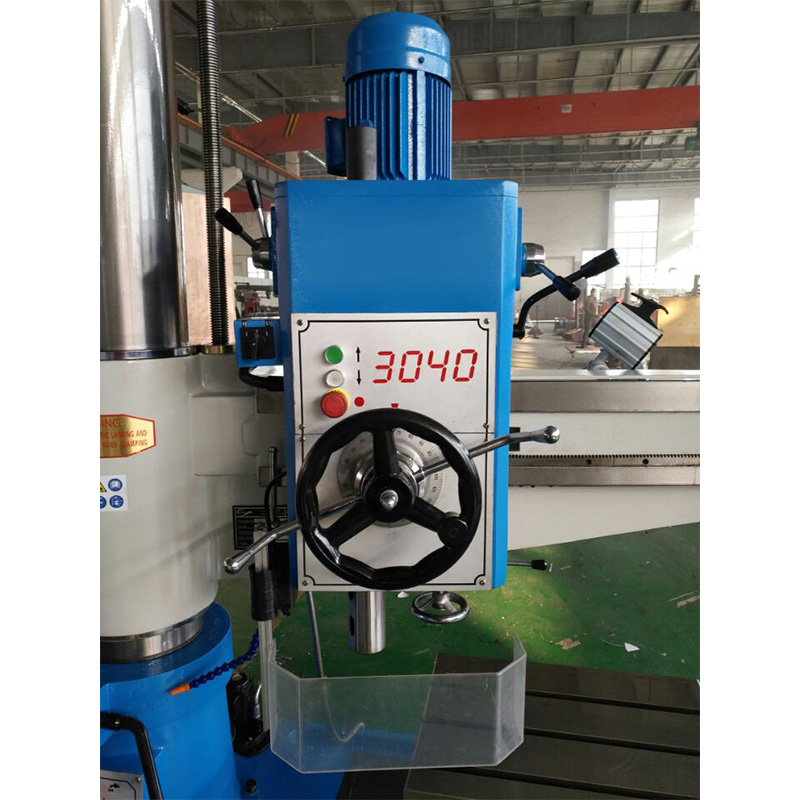

 Workbench |  Spindle Box |
