Description

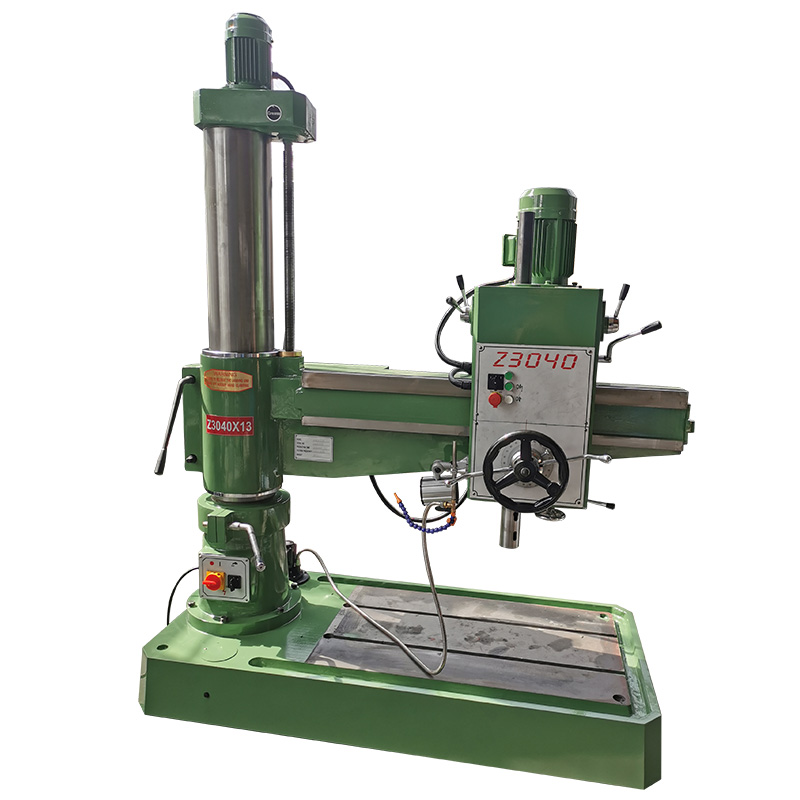

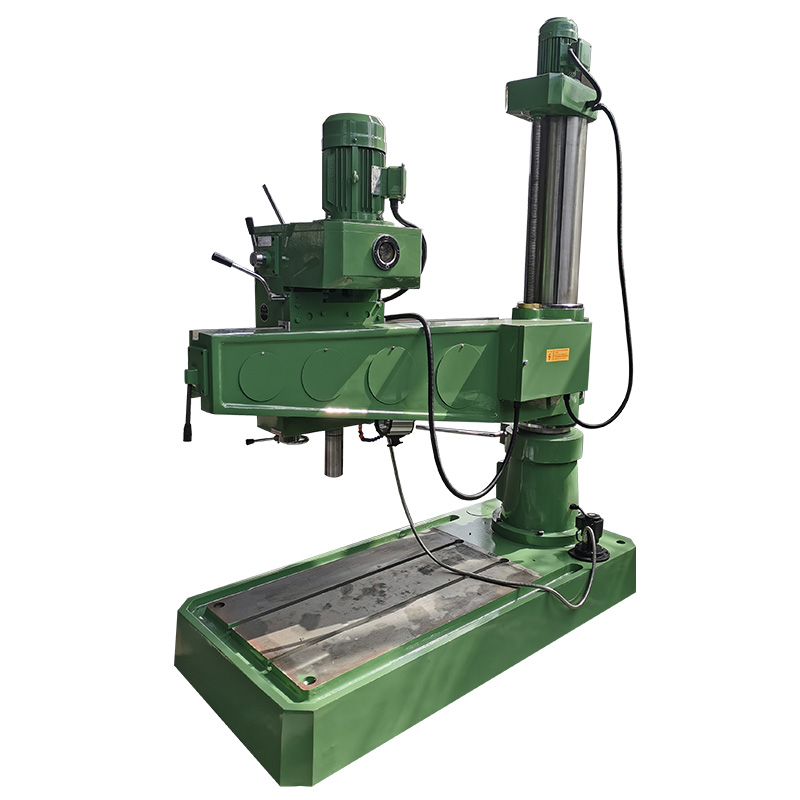

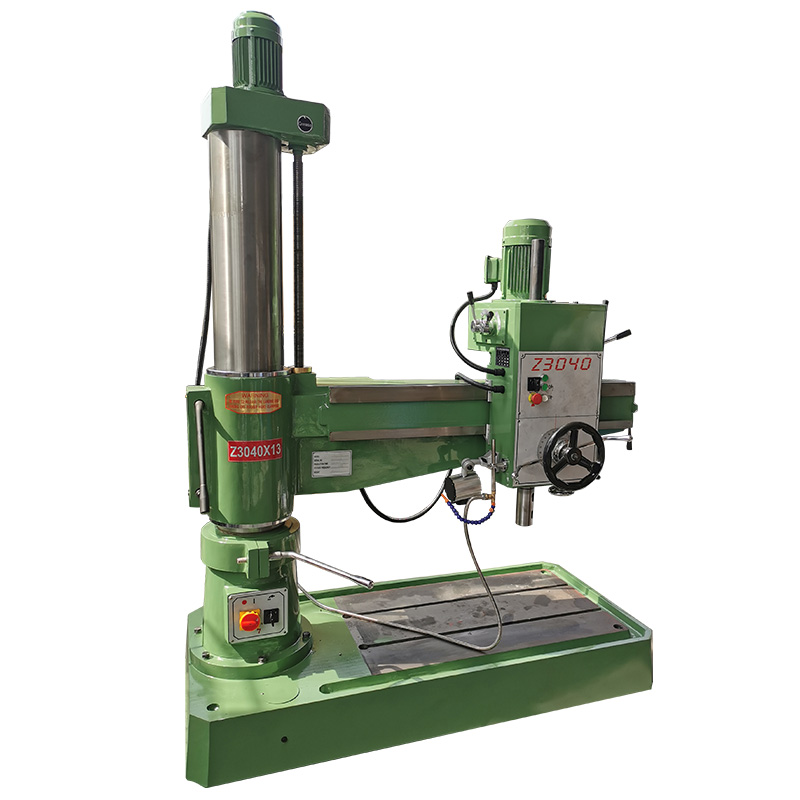

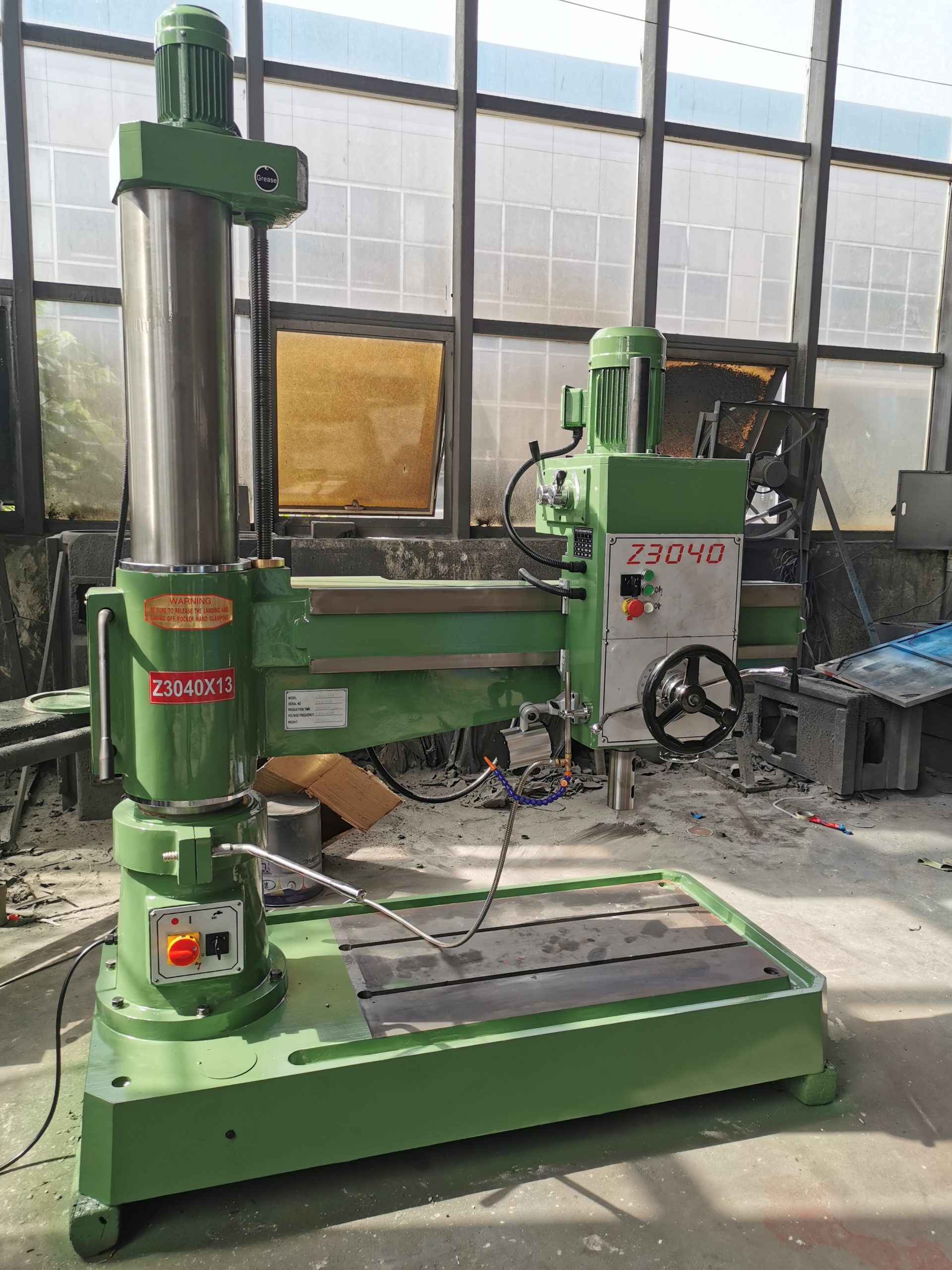

Radial drilling machine Z3040 is provided with hydraulic presetting speed shift mechanism to save auxiliary time. It only needs one handle to operate clockwise rotation, stop (brake), variable speed and neutral gear conveniently. Spindle box, rocker arm, inner and outer posts are reliably clamped by hydraulic diamond clamping mechanism. Perfect safety protector and outer post protection are available. In design and production of structure, it further adopts a series of effective measures to prolong precision durability and lifespan of whole machine. Its electrical equipment completely contributes to personal safety, reliability, long service life and convenient maintenance.
Specification of Radial Drilling Machine Z3040
| Model | Z3040/12 | Z3040/14 |
|---|---|---|
| Max drilling capacity | 40mm | |
| Distance from spindle nose to column | 300–1200/1400mm | |
| Spindle horizontal travel | 900/1100mm | |
| Spindle vertical travel | 300–1240mm | |
| Spindle taper | MT4 | |
| Spindle travel | 210mm | |
| Radial arm lifting speed | 1.26m/min | |
| Radial arm lifting distance | 650mm | |
| Drilling depth per circle | 140mm | |
| Spindle speed | 80–1200r/min | |
| Spindle speed series | 6 | |
| Range of spindle feed | 0.10–0.30mm/r | |
| Spindle feed series | 3 | |
| Main motor power | 1.5kW | |
| Lifting motor power | 0.75kW | |
| Hydraulic clamping motor power | 0.55kW | |
| Coolant pump power | 40W | |
| Table size | 550×350×350mm | |
| Net weight | 1500kgs / 1700kgs | |
| Overall size | 1700/1900×800×2200mm | |

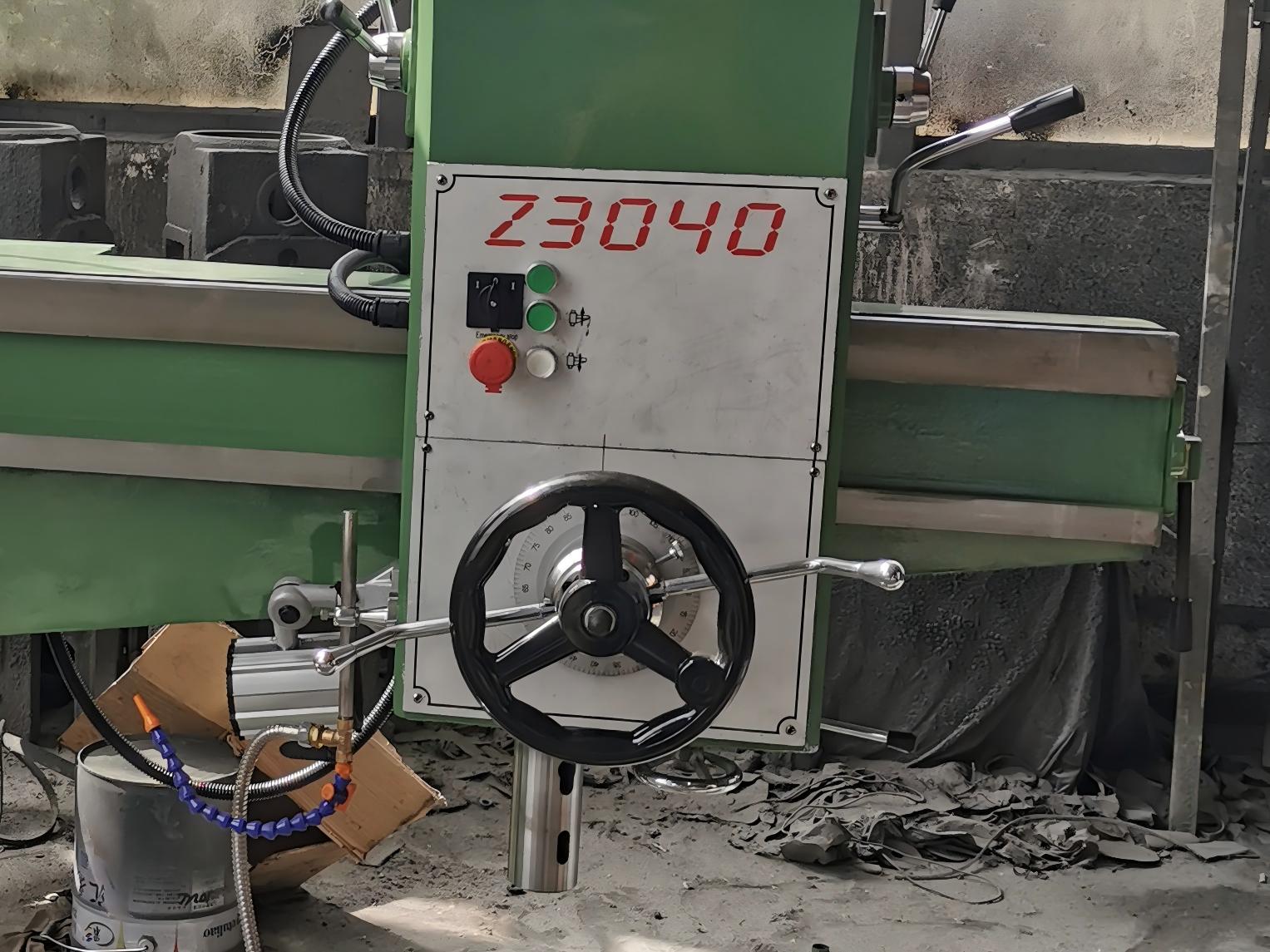

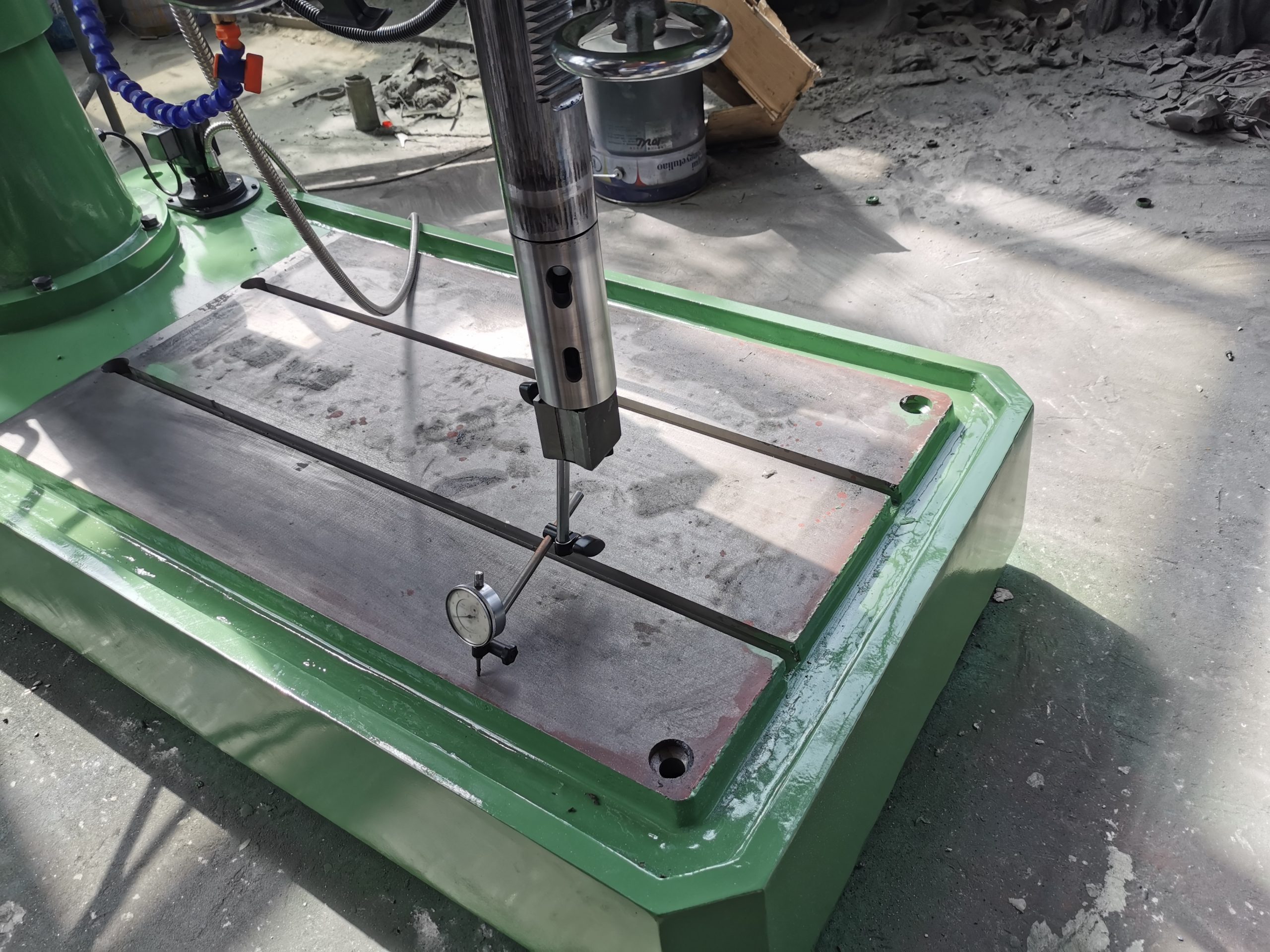

Machine Details
 |  |
