Description

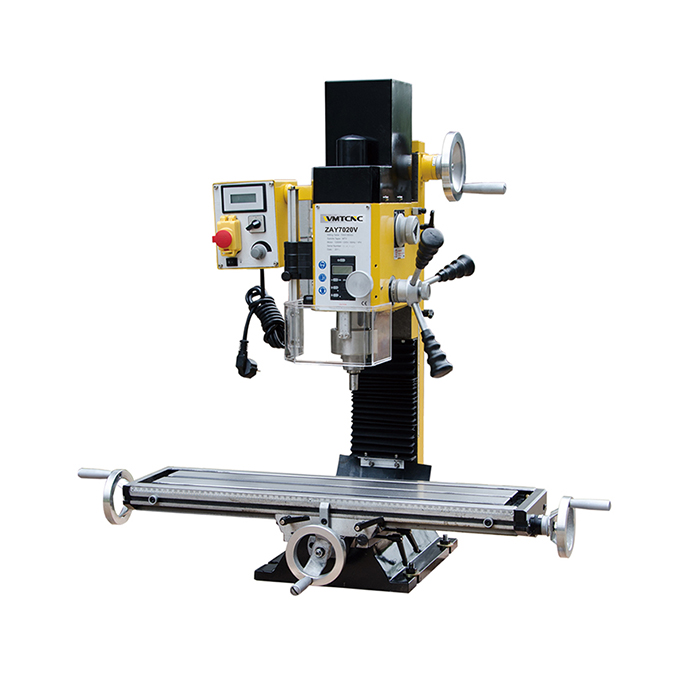

Suitable for milling, drilling, tapping, boring and reaming. WMT Brand milling machine ZAY7020V with variable speed and easy to operate.
Specification
| Specification | ZAY7020V |
| Drilling capacity | 20mm |
| Max. face mill capacity | 63mm |
| Max. end mill capacity | 20mm |
| Max. distance spindle to table | 355mm |
| Working table size | 500(700) x 180mm |
| Spindle rotary angle | ± 45° |
| Spindle taper | MT2 |
| Spindle speed | 50-2250rpm |
| Sleeve stroke | 50mm |
| X-axis travel | 290/490mm |
| Y-axis travel | 180mm |
| Z-axis travel | 380mm |
| Motor power | 600w |
| N.W/G.W | 118/138kgs |
| Packing size (LxWxH) | 610(810)x560x880mm |
Main Features
- Brushless DC main motor.
- Compact, accurate variable speed milling & drilling machine.
- Variable speed.
- Gear head provides powerful torque.
- Adjustable gibs and stops on table.
- Accurate position, strong rigidity, strong cutting power.
- Gear drive, lower noise.
Machine details

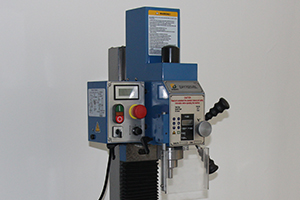

Drilling and milling head

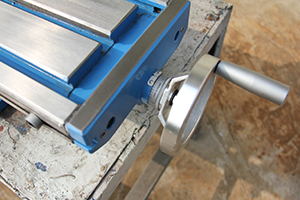

Handwheel

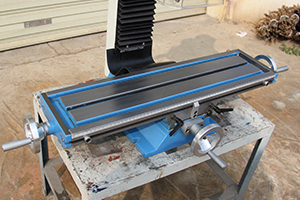

Working table

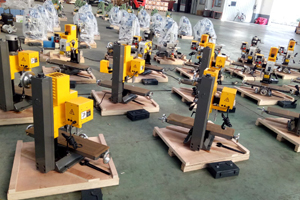

Mass production
