Description

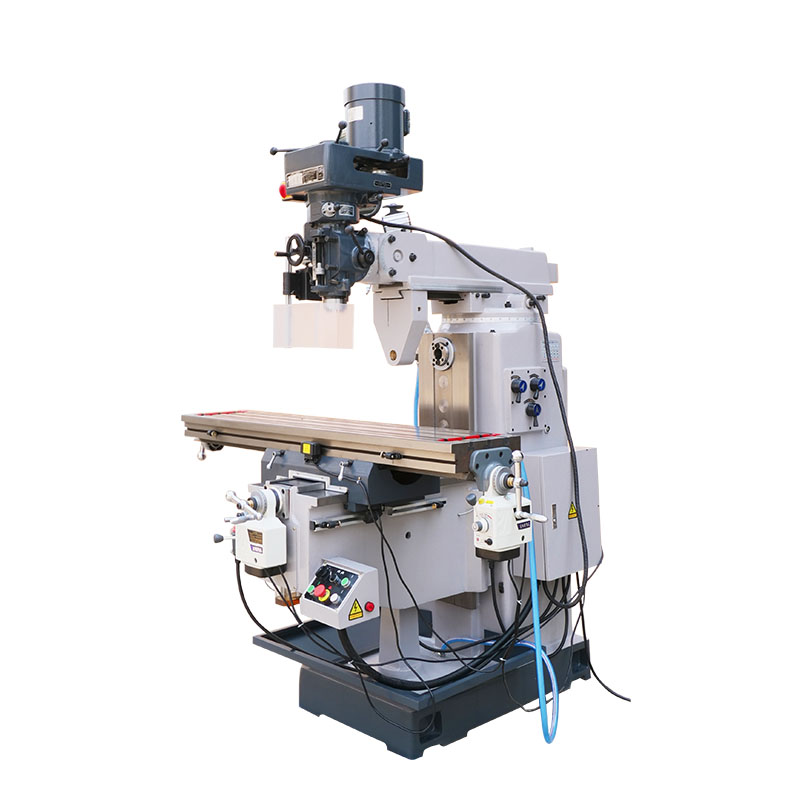

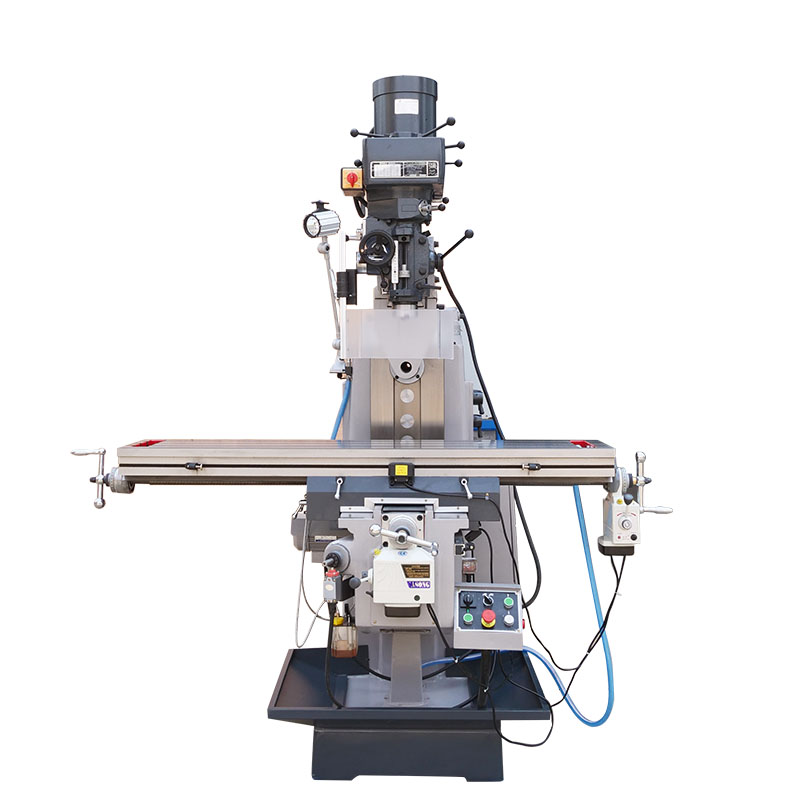

Metal mill machine X6332U having a table fitted with all motions and a dividing head with change gears so that it can perform any type of milling operation.
Specification
| Specificaiton | X6332U |
| Table size(L×W) | 1570X320mm |
| T-slotes (N/W/D) | 3/16/85mm |
| Table travel (X/Y/Z) | 1000×370×450mm |
| Spindle taper:vertical/horizontal | NT40(V),NT40(H) |
| Distance between horizontal nose and table surface | 0-400mm |
| Distance between spindle axis and ram surface | 230mm |
| Vertical spindle variable speed | 80-4200rpm(variable) |
| Vertical spindle step speed | 66-4540rpm(16 steps) |
| Horizontal spindle step speed | 40-1300rpm(12 steps) |
| Ram travel | 400mm |
| Main motor power(V/H) | 3HP/5HP |
| 4HP | |
| Overall size (L×W×H) | 1950×1700×2450mm |
| N.w | 1600kg |
Main Features
Double 55° swallowtail guide way is adopted on both Y,Z-axis, so it is easy to adjust and repair.
Adopted strengthen rib on both sides of the column that makes the machine rigidly and beautiful.
Machine Details

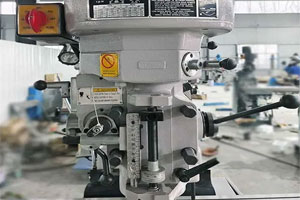

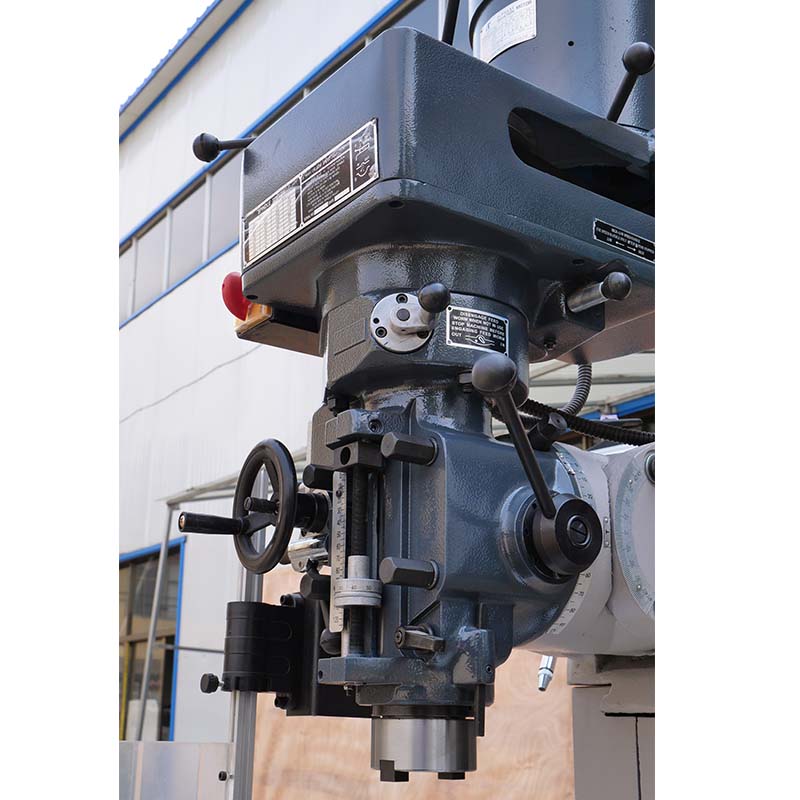

Taiwan Turret Milling Head

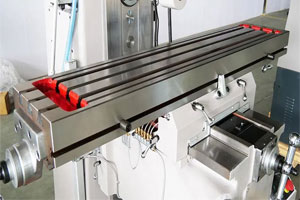

1570x320mm Worktable

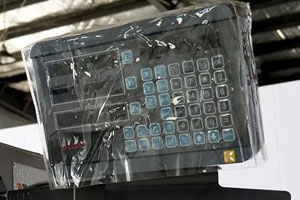

3 Axis DRO

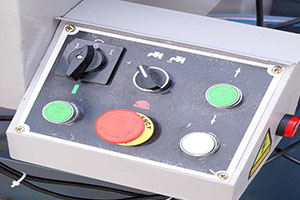

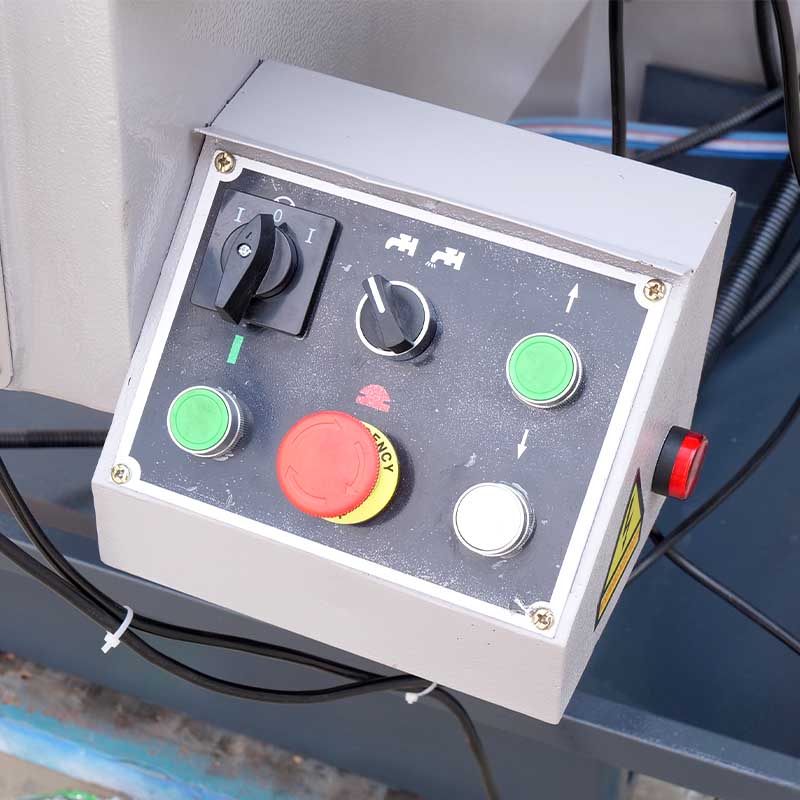

Control Switch
