Description
ZX6350Z drilling milling machine widely used in single or batch production of the instrument industry machinery manufacturing building decoration and repair sector.
Specification
| Specification | ZX6350Z |
| Max.drilling dia | Φ50/Φ30mm |
| Spindle taper | ISO30/ISO40/R8/MT4 |
| Max.vertical milling dia | 25mm |
| Max boring dia | 120mm |
| Distance spindle to table surface | 100-480mm |
| Spindle speeds range(V/H) | V:90-2000 H:38-1310 |
| Spindle travel | 120mm |
| Table size (L×W) | 1120×280mm |
| Table travel | 600×260mm |
| Main motor power(V/H) | 2.2, 2.2kw |
| Packing size | 1400×1630×2350mm |
| N.W/G.W | 1200kg/1350kg |
Main Features
Headstock swivels ±45º
ZX6350Z vertical milling spindle auto-feeding

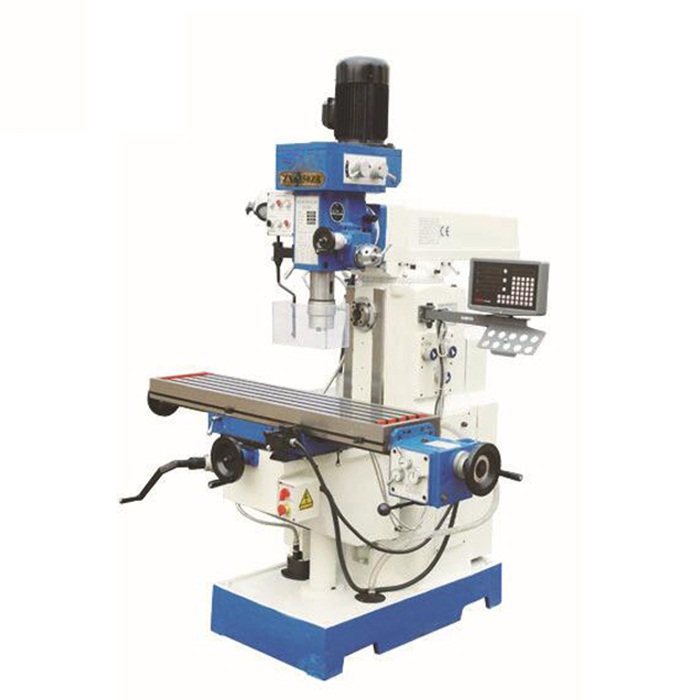

Machine details
