Description

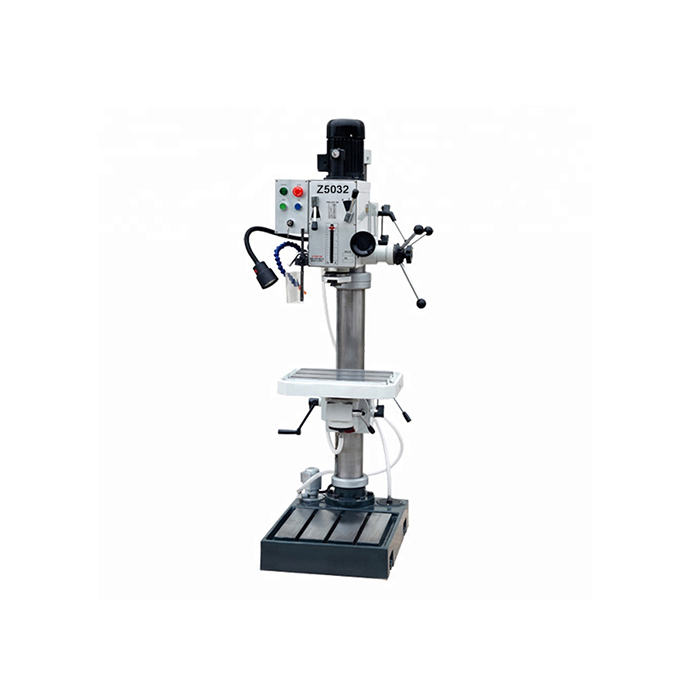

WMT CNC Z5032 is suitable for drilling, milling and tapping.
Specification
| Specification | Z5032 |
| Max. drilling capacity | Φ32mm |
| Spindle taper | MT3/MT4/R8 |
| Spindle travel | Φ130mm |
| Step of spindle speed | 6 steps |
| Range of spindle speed 50Hz | 80-1250rpm |
| 60Hz | 95-1500rpm |
| Step of spindle auto-feeding | 6 steps |
| Range of spindle auto-feeding amount | 0.06-0.30rpm |
| Min. distance from spindle axis to column | 290mm |
| Max. distance from spindle nose to worktable | 725mm |
| Max. distance from spindle nose to stand table | 1125mm |
| Max. travel of headstock | Φ250mm |
| Swivel angle of headstock (horizontal/vertical) | 360° |
| Max. travel of worktable bracket | Φ600mm |
| Worktable size of availability | 730×210mm |
| Swivel angle of table horizontally | 360° |
| Table leaned | 45° |
| Size of stand worktable of availability | 417×416mm |
| Motor Power | 1.1kw |
| Speed of motor | 1400rpm |
| N.W/G.W | 440/490kgs |
| Packing size | 1850×750×1000mm |
| Loading amount /20″ container | 18pcs |
Main Features
- Headstock and worktable up and down perpendicularly
- Head swivels 360° horizontally
- Gear driven, lower noise
- Positive spindle lock
Main Features
- Headstock and worktable up and down perpendicularly
- Head swivels 360° horizontally
- Gear driven, lower noise
- Positive spindle lock
Machine details
Round coulmn
Cross table as optional
