Description
The surface grinding machine with a pleasing appearance and well-designed structure, the machine is indeed precision grind equipment for metalworking. The well-designed structure have good rigidity and keeps the machine with high accuracy. The oil temperature increases low after long working.
We also offer a diverse range of grinding machines, including standard cylindrical grinding machine, portable surface grinders, vertical grinders, and high-precision CNC surface grinders. Whether you’re looking for a small surface grinder, a rail grinder, or a magnetic bed for surface grinding machines, we have a solution to meet your needs. For more details on our full selection, please feel free to contact us – we’re here to help you find the perfect machine for your specific requirements>>
Specification
| Specification | SGA-3063AH/AHR/AHD |
| Table size(WxL) | 305x635mm |
| Max.longitudinal travel | 765mm |
| Cross travel | 340mm |
| Max.distance from spindle center to table | 580mm |
| Magnetic chuck size | 300x600mm |
| Speed of table longitudinal movement | 7-23m/min |
| Table transverse movement/ Auto feed | 0.1-8mm/min |
| Table transverse movement/ Rapid speed | 990mm/min |
| Table transverse movement/ Feed of handwheel | 0.02mm/div. |
| Wheelhand vertical movement/ Auto feed | -(H/R mode)0.005/0.01/0.02/0.03/0.04/0.05(only for D model)mm/stroke |
| Wheelhand vertical movement/ Rapid speed | -(H mode)610(only for R model)480(only for D model)mm/min |
| Wheelhand vertical movement/ Feed of handwheel | 0.005mm/div. |
| Grinding wheel Speed 50HZ | 1450rpm |
| Grinding wheel Speed 60HZ | 1750rpm |
| Grinding wheel (ODxWxID) Size | 350x40x175mm |
| Spindle motor | 4/5.5kw |
| Hydraulic Motor | 2.2kw |
| Cooling pump motor | 0.09kw |
| Elevating motor | -(Hmode)0.25(Rmode)0.5(D mode servo motor)kw |
| Cross feed Motor | 0.04kw |
| Max.loading capacity of table(include magnetic chuck) | 270kg |
| Total rated Power | 7.5/9kw |
| Height of machine | 1890mm |
| Floor space | 2900x2200mm |
| Gross weight | 2800kg |
| Packing dimensions(LxWxH) | 2315x2220x2230mm |
Machine Details
 |  |

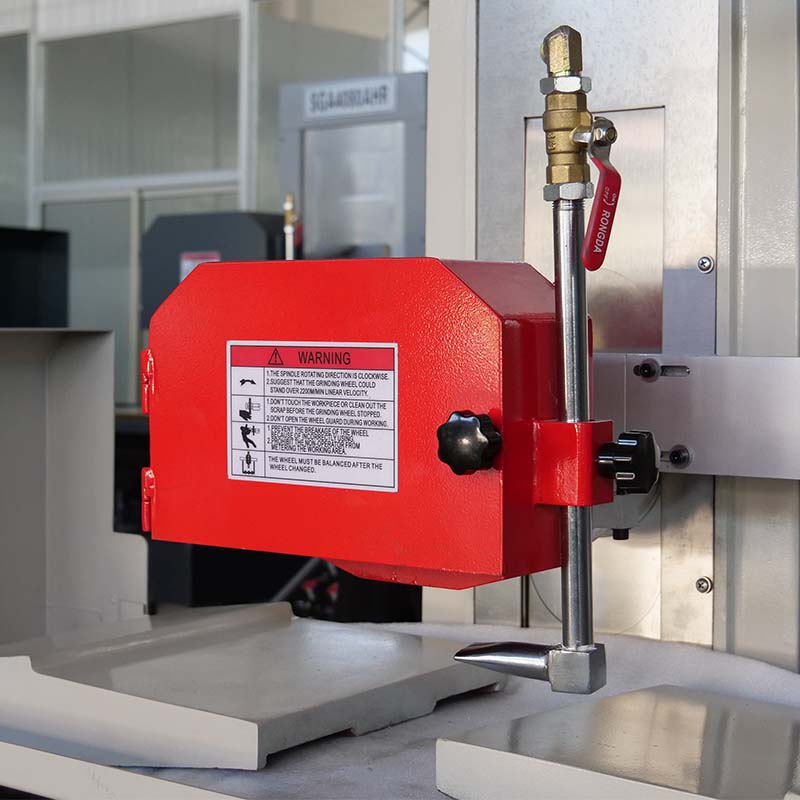

| Electromagnetic-Chuck | Grinding Wheel |
 |  |

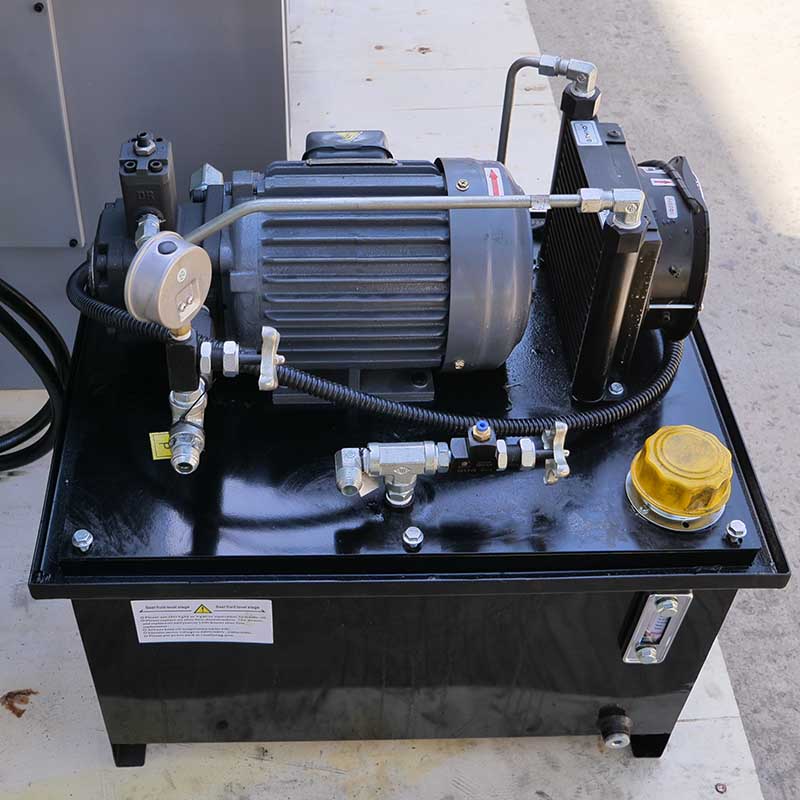

| Control Panel | Lubrication system |
Main Features
- The main iron castings are used advanced material and through annealing. Eliminate stress to ensure the high precision, high rigidity, and prolong the life of the machine.
- Grinding machine and double v slide adhesive wear-resistant resin TURCITE-B (Teflon), with precision scraping. The sliding is smooth and wear-resistant, ideal for form grinding.
- Using a single integrated design of spindle directly and P4 grade ultra-precision bevel roller bearing. Rotates in high speed, low noise, no vibration, large torque, suitable for heavy cutting and all types of form grinding.
