Description

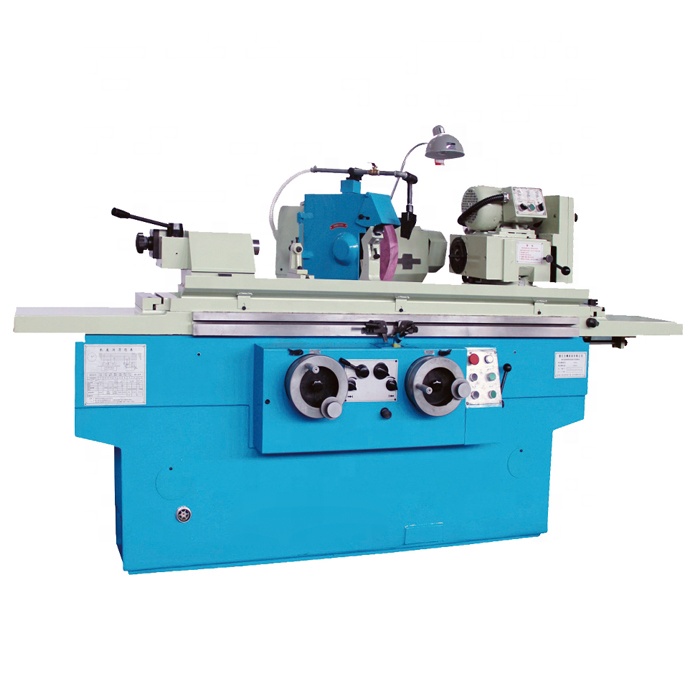

M1320H-A transverse cylindrical grinding machine is an improved version of the M1320H model, designed for higher-end surface machining precision. With simple operation and excellent cost-performance ratio, it is widely used in gear manufacturing and similar industries.
Specification
| Description | Unit | M1320H-A×300 |
| External grinding diameters | mm | Φ8 ~ 200 |
| Center height | mm | 135 |
| Max. travel of table | mm | 550 |
| Hydraulic traverse speeds | m/min | 0.1 ~ 4 |
| Max. workpiece weight | kg | 50 |
| Grinding length (External) | mm | 300 |
| Swivel range of worktable | ° | -3 ~ +9 |
| Max. peripheral speed of grinding wheel | m/s | 38 |
| External wheel size | mm | Max Φ400×50×Φ203 / Min Φ280×50×Φ203 |
| Workhead and tailstock center | Morse | No.4 |
| Machine motor power | kW | 5.625 |
| Overall dimensions (L×W×H) | mm | 2500 × 1600 × 1500 |
| Machine weight | kg | 2500 |
Main Features
- The longitudinal movement of the worktable is driven by hydraulic system or manually via handwheel.
- The worktable supports a certain range of rotation for taper grinding.
- The wheelhead cross-feed is driven hydraulically and supports periodic automatic feed, rapid feed, as well as manual fine and rough feed.
