Description

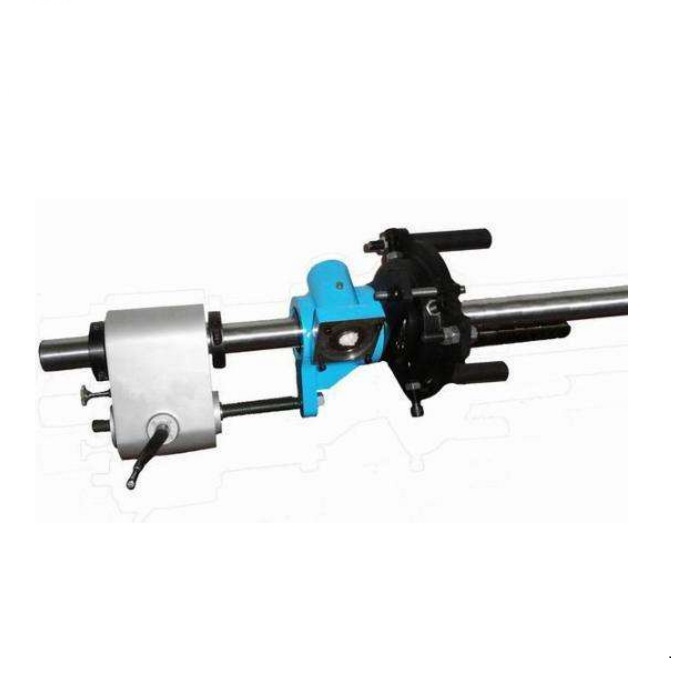

The Portable Boring can bore and weld the holes, the automated machine provides you with an affordable bore machine. High quality bore technology is now available in a ruggedly constructed, highly portable and easily operation
Specification
| Specification | JRT60 |
| Boring bar dia. and length | ⌀60 × 2000mm |
| Boring diameter range | ⌀65–360mm |
| Facing diameter | ⌀70–400, ⌀300–700 |
| Power unit | Servo motor 1.5KW |
| Boring bar rotation speed (variable) | 0–70 rpm |
| Axial feed per revolution (variable) | 0.05–0.43 mm/r |
| Axial feed travel | 500mm |
| Machining hole face roughness | Ra 1.6 |
| Machining hole roundness tolerance | ≤ 0.04mm |
Main Features
Modular components make setup quick and easy
Flexible and high quality design, aluminum alloy frame make the machine portable
Optional facer tool make the machine more versabil
Spherical bearing mounts system allow quick setup
Gear box allow manual and automatic feed
Drive power provide by a brushless DC motor,powerful and stable
Could use on repairing the inner wall of the pipes,crane rotary holes,stern shaft holes and rudder holes and so on.
Machine Details
