Description

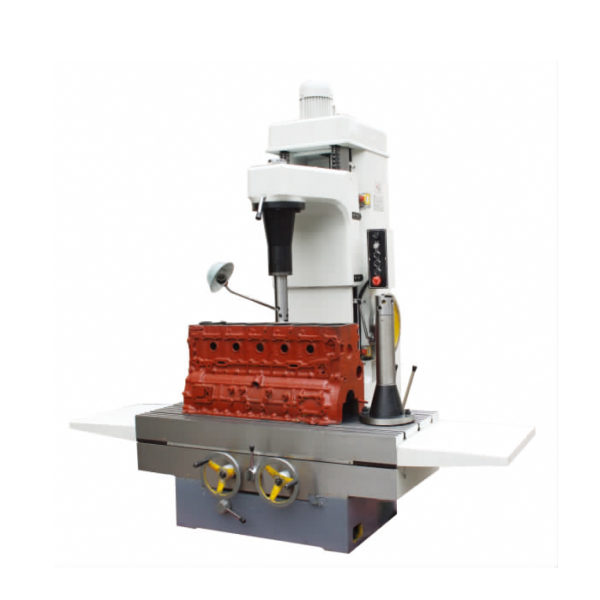

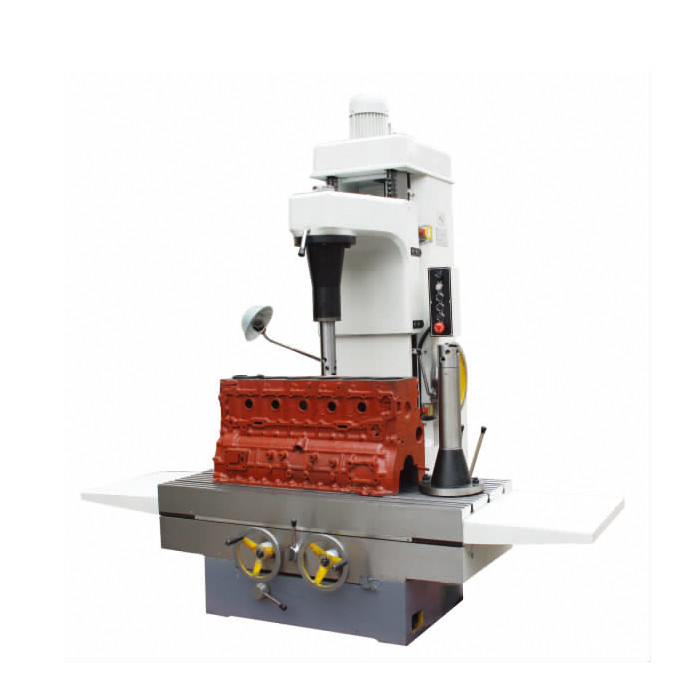

Mainly for boring cylinder hole & cylinder liner inner hole of internal-combustion engine of vehicles & tractors, also used for fine boring inner hole of other parts.
Specification
| Main Specifications | T8018B |
|---|---|
| Processing Diameter mm | 30-180 (with optionals) |
| Max. Boring Depth mm | 450 |
| Spindle Speed r/min | 175, 230, 300, 350, 460, 000 |
| Spindle Feed mm/r | 0.05, 0.10, 0.20 |
| Overall Dimensions mm (L x W x H) | 2000 x 1235 x 1920 |
| Packing Dimensions mm (L x W x H) | 1400 x 1400 x 2250 |
| N.W/G.W kg | 2000 / 2200 |
Main Features
Mechanical-electronic drive and spindle speed frequence changed speed variation.
Machine Details
