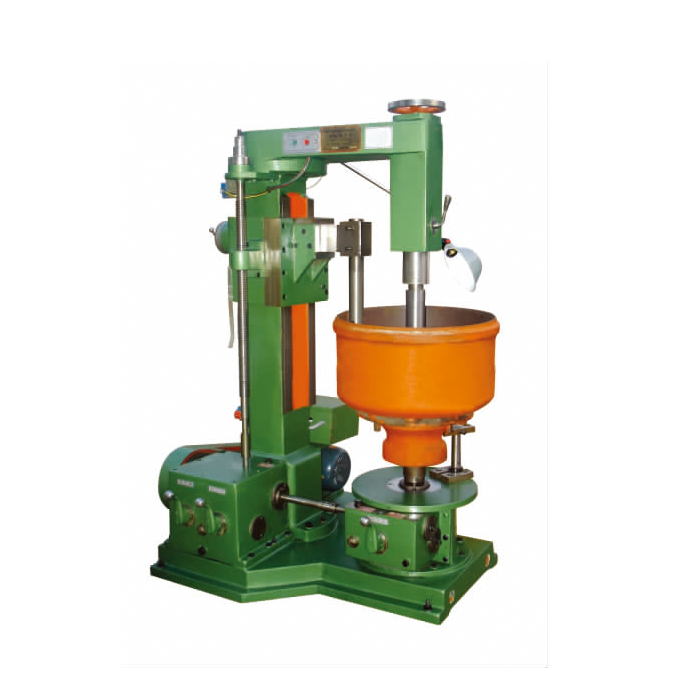

Description
Special for boring brake drum of vehicles & tractors, optional for brake shoe or hubless brake drum.
Specification
| Specification | T8358A |
| Processing diameter | 220–580 mm |
| Rotating speed of workpiece | 37 / 50 rpm |
| Working travel of slideboard | 320 mm |
| Main power | 1.1 kW |
| Overall dimensions (L × W × H) | 1000 × 820 × 1380 mm |
| Packing dimensions (L × W × H) | 1050 × 900 × 1580 mm |
| N.W. / G.W. | 650 / 750 kg |
Main Features
- Whole column design enables better rigidity than old structure.
- Super strong spindle structure makes boring elliptical deformable / surface hardened brake drums possible.
- Position with bearings.
Machine Details
