Description
Special for brake drum of large truck / lorry / bus, optional for brake shoe & hubless brake drum.
Specification
| Specification | T8362 |
| Processing diameter | 200–620 mm |
| Rotating speed of workpiece | 36 / 48 rpm |
| Working travel of slideboard | 450 mm |
| Main power | 1.1 kW |
| Overall dimensions (L × W × H) | 960 × 940 × 1400 mm |
| Packing dimensions (L × W × H) | 1060 × 1040 × 1500 mm |
| N.W. / G.W. | 800 / 900 kg |
Main Features
- Whole column design enables better rigidity than old structure.
- Super strong spindle structure makes boring elliptical deformable / surface-hardened brake drum available.
- Centering with special cone sleeves, applicable for brake drum of various vehicles like FAW, Howo, Dongfeng, Steyr, Hongyan, medium buses & vans.

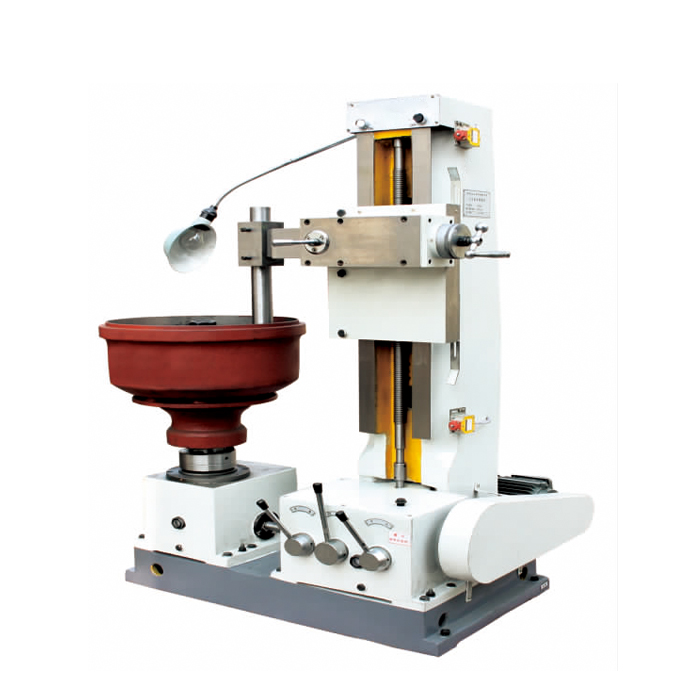

Machine Details
