Description

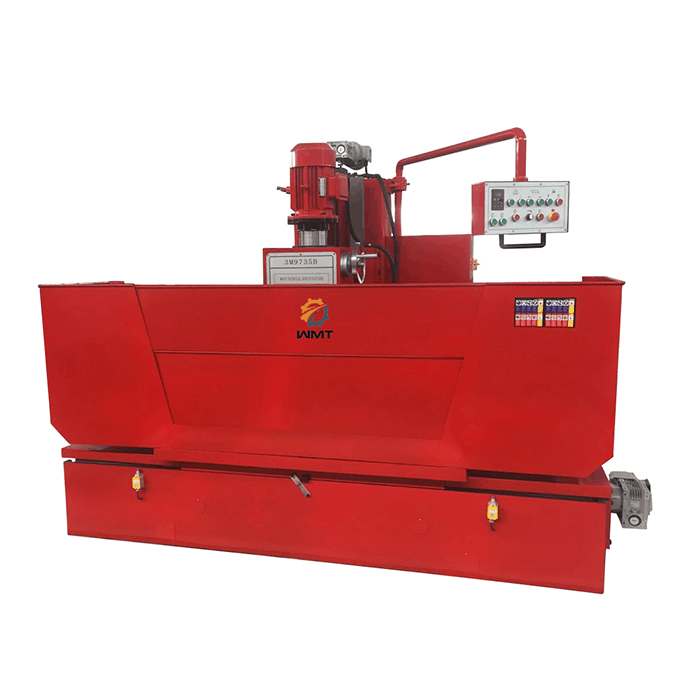

Cylinder block and head grinding machine 3M9735B suits for grinding and milling all kinds of cylinder body and cover surface.
Specification
| Specification | 3M9735Bx130 | 3M9735Bx150 |
|---|---|---|
| Working table size | 1300 x 500mm | 1500 x 500mm |
| Max working length | 1300 mm | 1500 mm |
| Max. width of grinding | 350 mm | 350 mm |
| Max height of grinding | 800 mm | 800 mm |
| The vertical moving distance of grinding head | 60 mm | 60 mm |
| The vertical moving distance of spindle box | 800 mm | 800 mm |
| Spindle speed | 1400/700 r/min | 1400/700 r/min |
| Transverse moving speed of working table | 40-900 mm/min | 40-900 mm/min |
| Overall dimensions(LxWxH) | 2800x1050x1700 mm | 3050x1050x1700 mm |
| Packing dimensions(LxWxH) | 3100x1200x1850 mm | 3350x1200x1850 mm |
| N.W. / G.W. | 2800 / 3100 kg | 3000 / 3300 kg |
Main Features
- The spindle adopts high precision bearing; the motor is fixed on the back of the machine which guarantees the spindle precision with high speed.
- It adopts the plastic guide way running stable and flexible.
- The feeding of the work table adopts stepless speed changes devices, suitable for processing all kinds of materials of the workpiece.
