Description

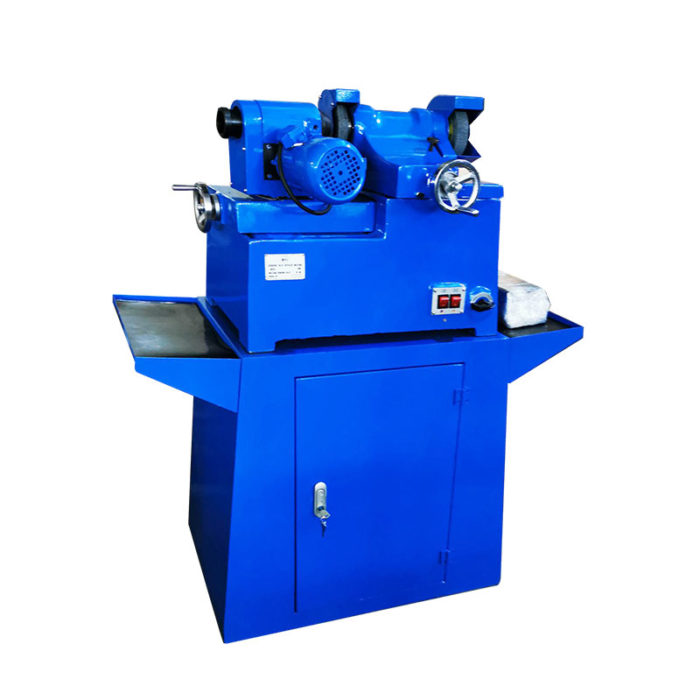

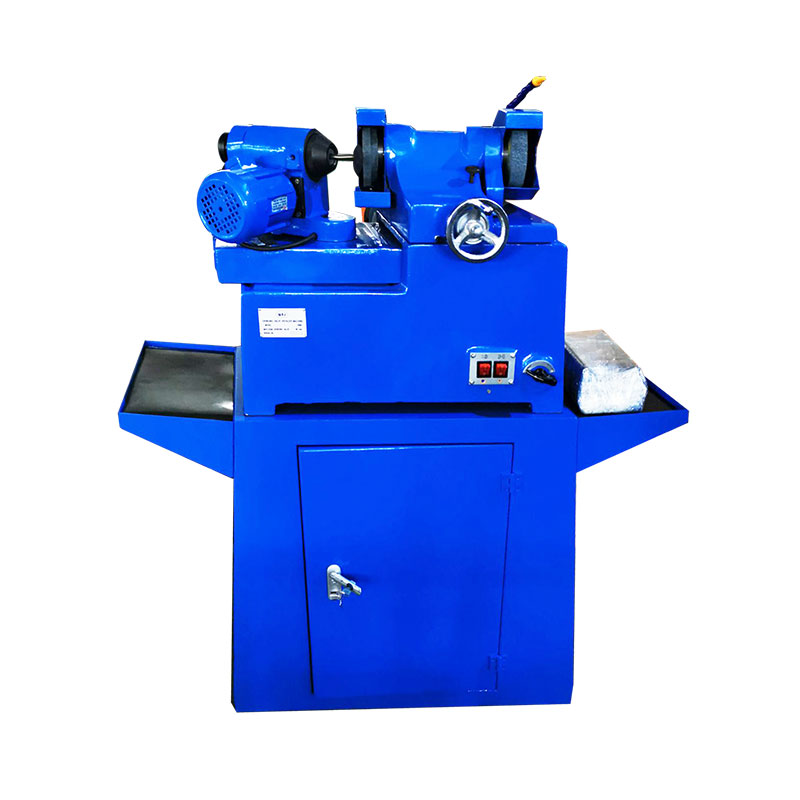

Valve Grinding Machine VR90 is special for grinding the valves in internal combustion engines (the valves in engines on automobiles and tractors), featuring small size, flexible operation and easy use. The parts are ground with high surface finish and accuracy.
Specification
| Specification | VR90 |
|---|---|
| Processing diameter | Brake Drum: Φ180-Φ350mm |
| Brake Plate: Φ180-Φ400mm | |
| Max depth of processing brake drum | 175mm |
| Rotor thickness | 1-7/8” (48mm) |
| Spindle Speed | 70, 80, 115r/min |
| Spindle feed speed | 0.002″-0.02″ (0.05-0.5mm)Rev |
| Cross feed speed | 0.002″-0.02″ (0.05-0.5mm)Rev |
| Max processing depth | 0.5mm |
| Machine Power | 0.75kw |
| Motor | 110V/220V/380V, 50/60HZ |
| NW/GW | 300/350KG |
| Overall Dimension (L×W×H) | 970×920×1140mm |
| Packing Dimension (L×W×H) | 1220×890×1450mm |
Main Features
- Reliable performance, widely uses processing accuracy and high productivity.
- Easy and flexible operation.

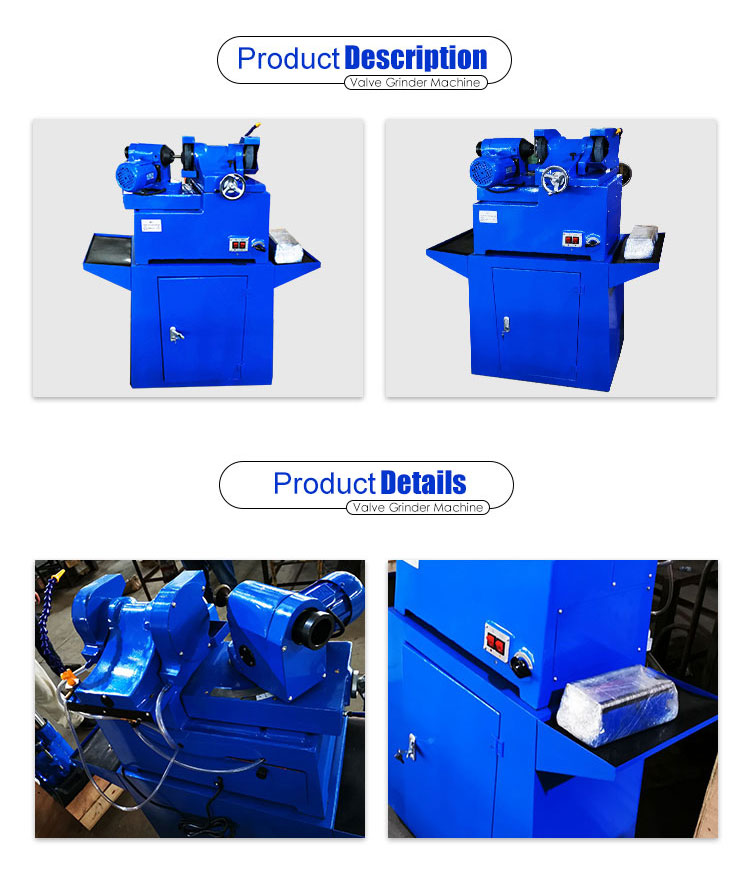

Machine Details
