Description

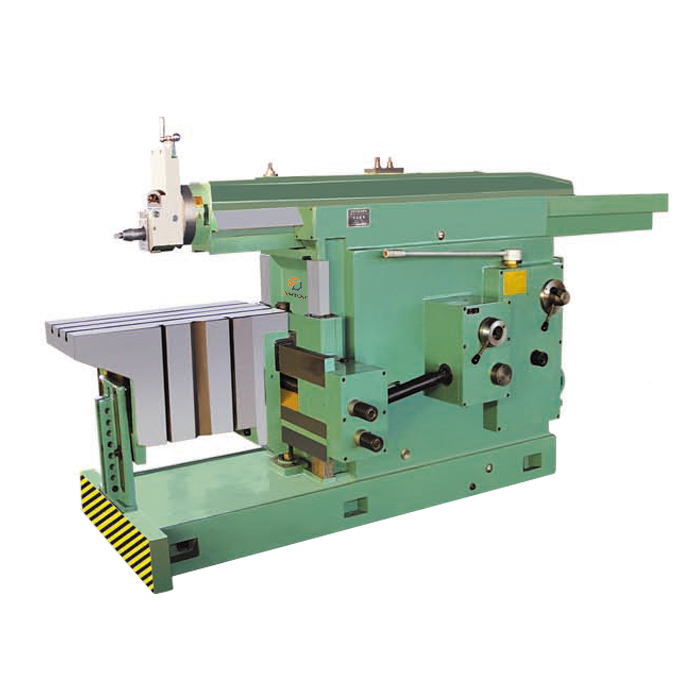

Shaping machine BC60100 is suitable for cutting all kinds of small parts of the plane, T type groove and forming surface, can be used for single or
mass production.
Specification
| Specification | B60100 |
| Maximum planing length | 1000mm |
| Maximum distance from the bottom of the working table | 400mm |
| lateral travel | 800mm |
| Vertical stroke | 380mm |
| Tool frame travel | 160mm |
| Sleeper reciprocating times (per minute) | 15/20/29/42/58/83 |
| Main motor power | 7.5KW |
| The maximum size（width*thickness）of the handle | 30×45mm |
| The size of the T groove in the center of the worktable | 22mm |
| Angle of rotation | ±60°(tool post) |
| Workbench size | 1000×500mm |
| Shape size | 3640×1570×1780mm |
| Mechine tool weight (about) | 4870/5150KG |
| Package dimensions | 3700/1600/1800mm |
Main Features
- Optimize the principle of design, the machine is beautiful, easy to operate.
- The vertical and horizontal guide rail is used for rectangular guide and the stability is better.
- The use of advanced ultra – frequency quenching process, so that the machine’s life longer.
