Description

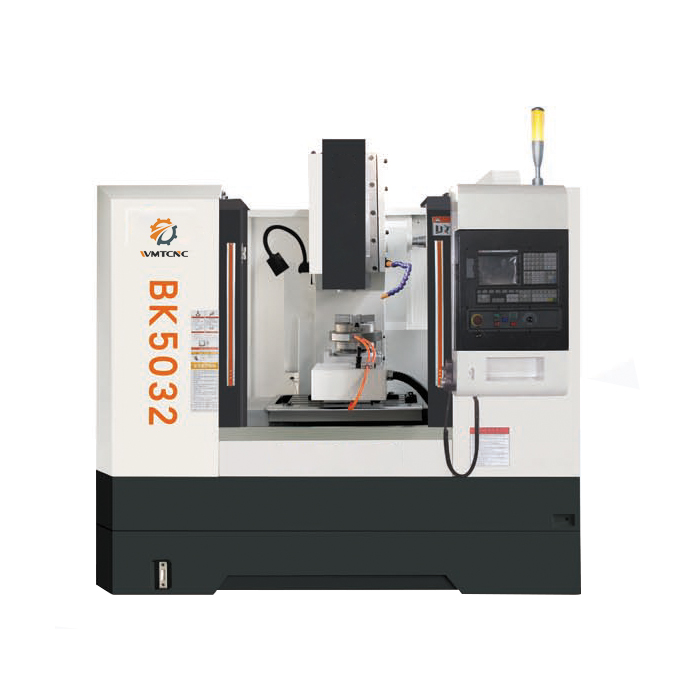

The CNC Slotting Machine BK5032 is specifically designed for the precision processing of keyway splines and the inner keyways of blind holes. With its robust structure and advanced CNC control system, this machine offers outstanding stability and accuracy, making it an ideal choice for industries that require intricate internal machining.
BK5032 is particularly popular in the manufacturing of machinery components and automotive parts, where the precision of internal features plays a crucial role in ensuring product reliability and performance. Its ability to process complex internal geometries with high consistency has made it a preferred solution for machine tool production and vehicle manufacturing.
Specification of BK5032
| Specification | BK5032 |
| The maximum length of ram | 320mm |
| Ram adjustment stroke | 315mm |
| Number of ram movements | 20 / 32 / 50 / 80 n/min |
| Working desk size | 600×320mm |
| Table travel (X, Y) | 620×560mm |
| Distance between the axis of the tool bearing hole and the forearm of the column | 600mm |
| Distance between the end face of the cutter head support hole and the table | 590mm |
| X direction motor torque | 7.7 N·m |
| Y direction motor torque | 7.7 N·m |
| Fast-moving speed (X direction) | 5 m/min |
| Fast-moving speed (Y direction) | 5 m/min |
| Ball screw (X) | FFZD3205-3/P4 |
| Ball screw (Y) | FFZD3205-3/P4 |
| Main motor power | 4kW |
| Machine tool weight (about) | 3700kg |
| Package dimensions | 2800 / 2400 / 2500mm |
Main Features
Synchronous belt drive,low noise,high transmission power
Main motor:servo motor
Y ball screw :double nut preload
Perpendicularity of Z/Y≦0.02mm
Optional configuration over numerical control rotary table(with chuck)
All-closed protection
