Description

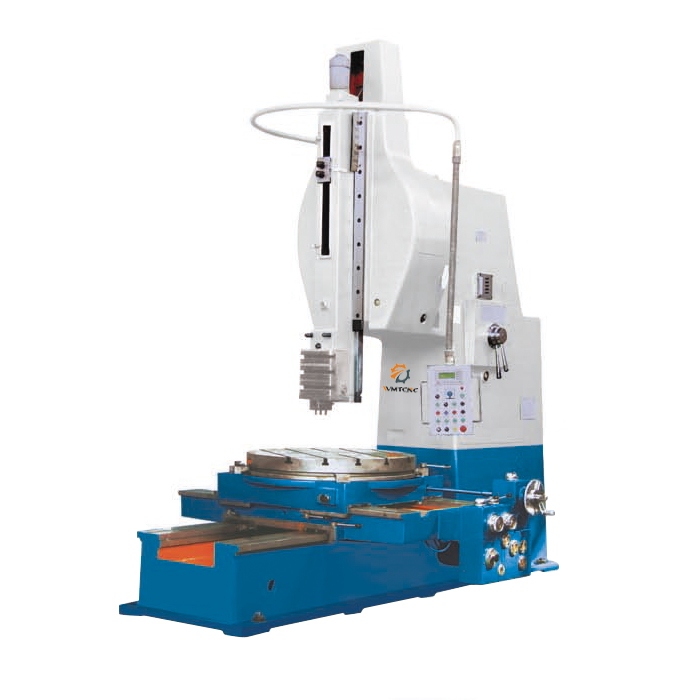

The slotting machine for metal is a highly efficient tool designed for cutting planes, shaped surfaces, grooves, and keyways across a variety of workpieces. Moreover, it offers precision machining for both simple and complex geometries, making it suitable for industries such as automotive manufacturing, heavy machinery production, and mold fabrication.
In addition, this slotting machine for metal utilizes a robust double-crank mechanism to ensure smooth and stable motion of the ram during cutting operations. The mechanical design therefore enhances operational stability, improves cutting accuracy, and extends the machine’s service life even under heavy workloads.
Specification
| Specification | BC5063 |
| Maximum insertion length of the ram (interpolated inner hole 530 mm) | 630mm |
| The number of reciprocations per minute of the ram | 8, 12, 20, 30 r.p.m |
| Ram tilt angle | ±10° |
| Tool chuck T-slot width | 22H11mm |
| Distance from the tool support surface to the front wall of the bed | 1120mm |
| Work surface to the lower end of the carriage | 800mm |
| Worktable maximum longitudinal movement distance | 1000mm |
| Worktable maximum lateral movement distance | 700mm |
| Worktable vertical and horizontal feed per stroke | 0.10, 0.20, 0.32, 0.54, 0.80, 1.30mm |
| Worktable rotary feed per stroke | 3′, 6′, 9′, 36″, 16’12”, 24′, 39′ deg |
| Table diameter | 1120mm |
| Workbench maximum load | 2000kg |
| Workbench central T-slot width | 22H11mm |
| Main drive motor power | 11kW |
| Feed servo motor | 4.0kW |
| Ram position adjustment motor | 0.55kW 1400r.p.m |
| Maximum cutting force | 20000N |
| Machine net weight (about) | 11T |
| Machine tool outline size (length × width × height) | 3580×2390×3660mm |
| Split package size | 3780/2560/1300/2350/1200/2500mm |
Main features
Worktable with mobile rotary positioning, for processing multi-keyway provides convenient,continuous non-polar feed, with real-time feed parameters are shown on a text display.
When the machine tool is used for a long time,the machine system wears severely,it can be carried out by professionals to do some error compensation with the control system to ensure the accuracy.
