Description

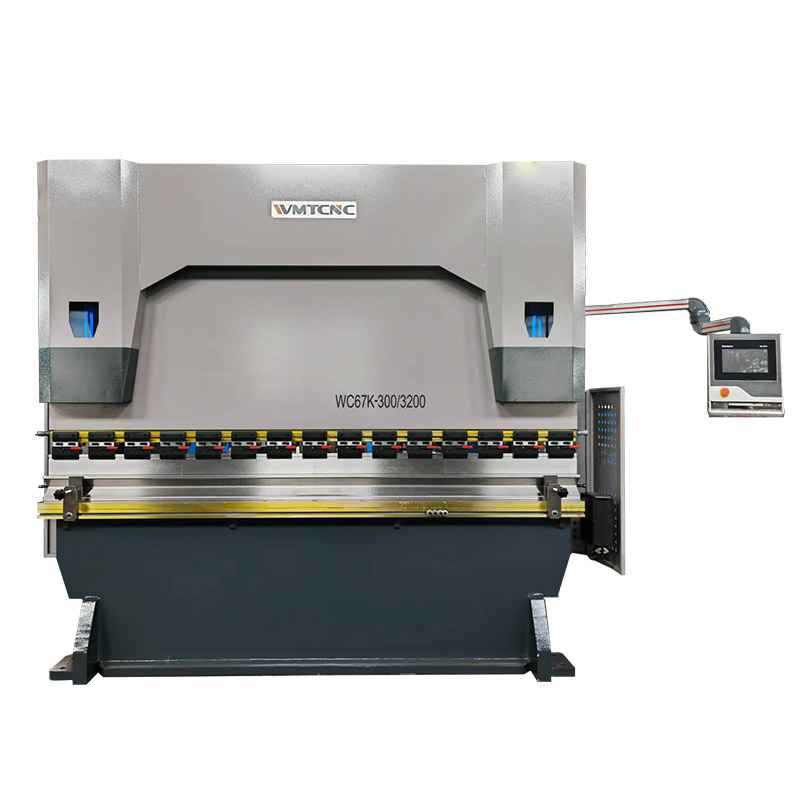

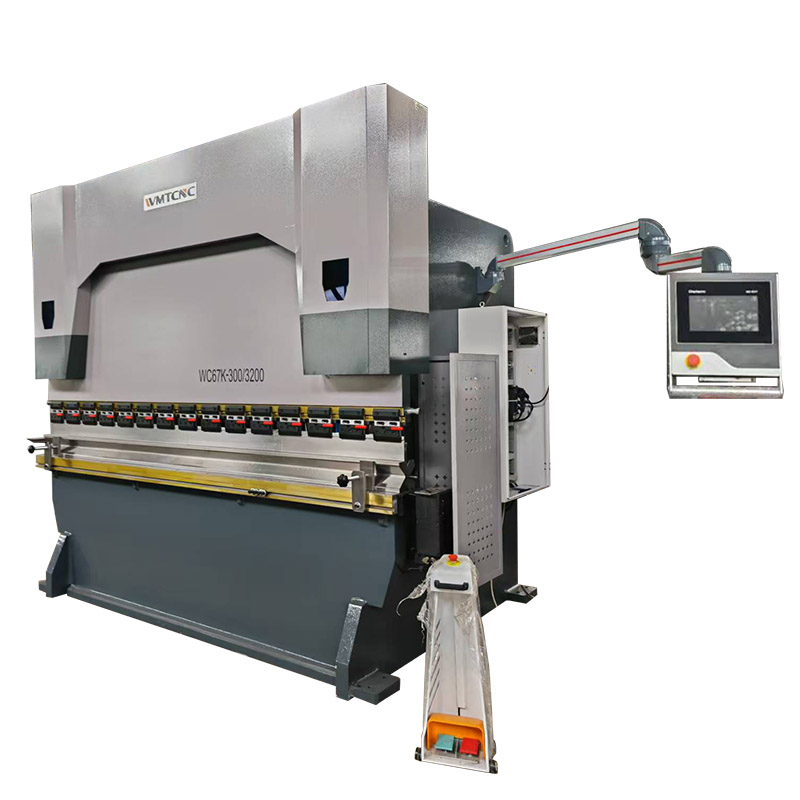

The WC67K-300X3200 CNC press brake machine is a heavy-duty solution designed for large-scale sheet metal forming. With a pressing force of 300 tons and a working length of 3200mm, it is capable of bending thicker and wider plates while maintaining high accuracy.
This machine is equipped with a CNC control system, enabling operators to program multi-step bending processes, reduce manual setup, and improve production efficiency. Its synchronized hydraulic cylinders provide smooth and consistent movement, ensuring precise parallelism and repeatability across the full bending length.
Specifications
| Model | Nominal Pressure | Length of working table | Distance between uprights | Throat Depths | Stroke | Open height | Motor power |
|---|---|---|---|---|---|---|---|
| WC67Y/K-30/1600 | 300 kN | 1600 mm | 1250 mm | 200 mm | 90 mm | 300 mm | 4 kw |
| WC67Y/K-40/2000 | 400 kN | 2000 mm | 1650 mm | 250 mm | 100 mm | 330 mm | 5.5 kw |
| WC67Y/K-40/2500 | 400 kN | 2500 mm | 2100 mm | 250 mm | 100 mm | 330 mm | 5.5 kw |
| WC67Y/K-63/2500 | 630 kN | 2500 mm | 2100 mm | 250 mm | 120 mm | 340 mm | 5.5 kw |
| WC67Y/K-63/3200 | 630 kN | 3200 mm | 2450 mm | 250 mm | 120 mm | 340 mm | 5.5 kw |
| WC67Y/K-80/2500 | 800 kN | 2500 mm | 2100 mm | 250 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-80/3200 | 800 kN | 3200 mm | 2450 mm | 250 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-100/2500 | 1000 kN | 2500 mm | 2100 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-100/3200 | 1000 kN | 3200 mm | 2450 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-100/4000 | 1000 kN | 4000 mm | 3090 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-125/2500 | 1250 kN | 2500 mm | 2100 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-125/3200 | 1250 kN | 3200 mm | 2450 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-125/4000 | 1250 kN | 4000 mm | 3090 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-160/3200 | 1600 kN | 3200 mm | 2450 mm | 320 mm | 180 mm | 440 mm | 11 kw |
| WC67Y/K-160/4000 | 1600 kN | 4000 mm | 3090 mm | 320 mm | 180 mm | 440 mm | 11 kw |
| WC67Y/K-200/3200 | 2000 kN | 3200 mm | 2450 mm | 350 mm | 200 mm | 465 mm | 15 kw |
| WC67Y/K-200/4000 | 2000 kN | 4000 mm | 3090 mm | 350 mm | 200 mm | 465 mm | 15 kw |
| WC67Y/K-200/6000 | 2000 kN | 6000 mm | 4800 mm | 350 mm | 200 mm | 465 mm | 15 kw |
| WC67Y/K-250/3200 | 2500 kN | 3200 mm | 2450 mm | 400 mm | 250 mm | 500 mm | 18.5 kw |
| WC67Y/K-250/4000 | 2500 kN | 4000 mm | 3090 mm | 400 mm | 250 mm | 500 mm | 18.5 kw |
| WC67Y/K-250/6000 | 2500 kN | 6000 mm | 4800 mm | 400 mm | 250 mm | 500 mm | 18.5 kw |
| WC67Y/K-300/3200 | 3000 kN | 3200 mm | 2530 mm | 400 mm | 250 mm | 500 mm | 22 kw |
| WC67Y/K-300/4000 | 3000 kN | 4000 mm | 3090 mm | 400 mm | 250 mm | 535 mm | 22 kw |
| WC67Y/K-300/6000 | 3000 kN | 6000 mm | 4800 mm | 400 mm | 250 mm | 535 mm | 22 kw |
| WC67Y/K-400/4000 | 4000 kN | 4000 mm | 3090 mm | 400 mm | 320 mm | 600 mm | 22 kw |
| WC67Y/K-400/6000 | 4000 kN | 6000 mm | 4800 mm | 400 mm | 300 mm | 600 mm | 37 kw |
| WC67Y/K-500/4000 | 5000 kN | 4000 mm | 3100 mm | 400 mm | 300 mm | 600 mm | 45 kw |
| WC67Y/K-500/6000 | 5000 kN | 6000 mm | 4800 mm | 400 mm | 300 mm | 600 mm | 45 kw |
| WC67Y/K-600/4000 | 6000 kN | 4000 mm | 6200 mm | 400 mm | 300 mm | 600 mm | 45 kw |
| WC67Y/K-600/6000 | 6000 kN | 6000 mm | 4800 mm | 400 mm | 300 mm | 600 mm | 45 kw |
Features
1.High Bending Capacity – 300T pressing force with 3200mm length, suitable for thicker and wider sheet metals.
2.CNC Control System – Provides programmable multi-step operations for efficiency and accuracy.
3.Hydraulic Synchronization – Dual-cylinder system ensures uniform bending results with repeatable precision.
4.Heavy-Duty Frame – Fully welded and stress-relieved for maximum rigidity and stability.
5.Hydraulic Crowning (Optional) – Compensates for ram deflection to maintain consistent bending angles.
6.Precise Backgauge – Motorized adjustment with digital display for reliable positioning.
7.Safety Protection – Equipped with interlock devices, emergency stop, and safety guarding.
8.Wide Industrial Use – Ideal for heavy fabrication, structural steel, and machinery production.
Machine Details
