Description

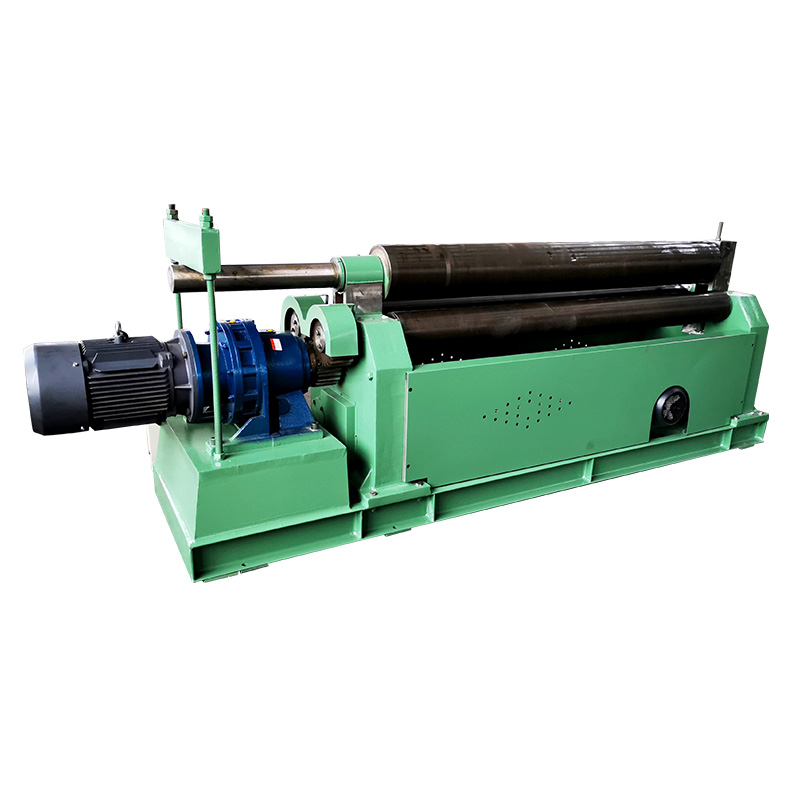

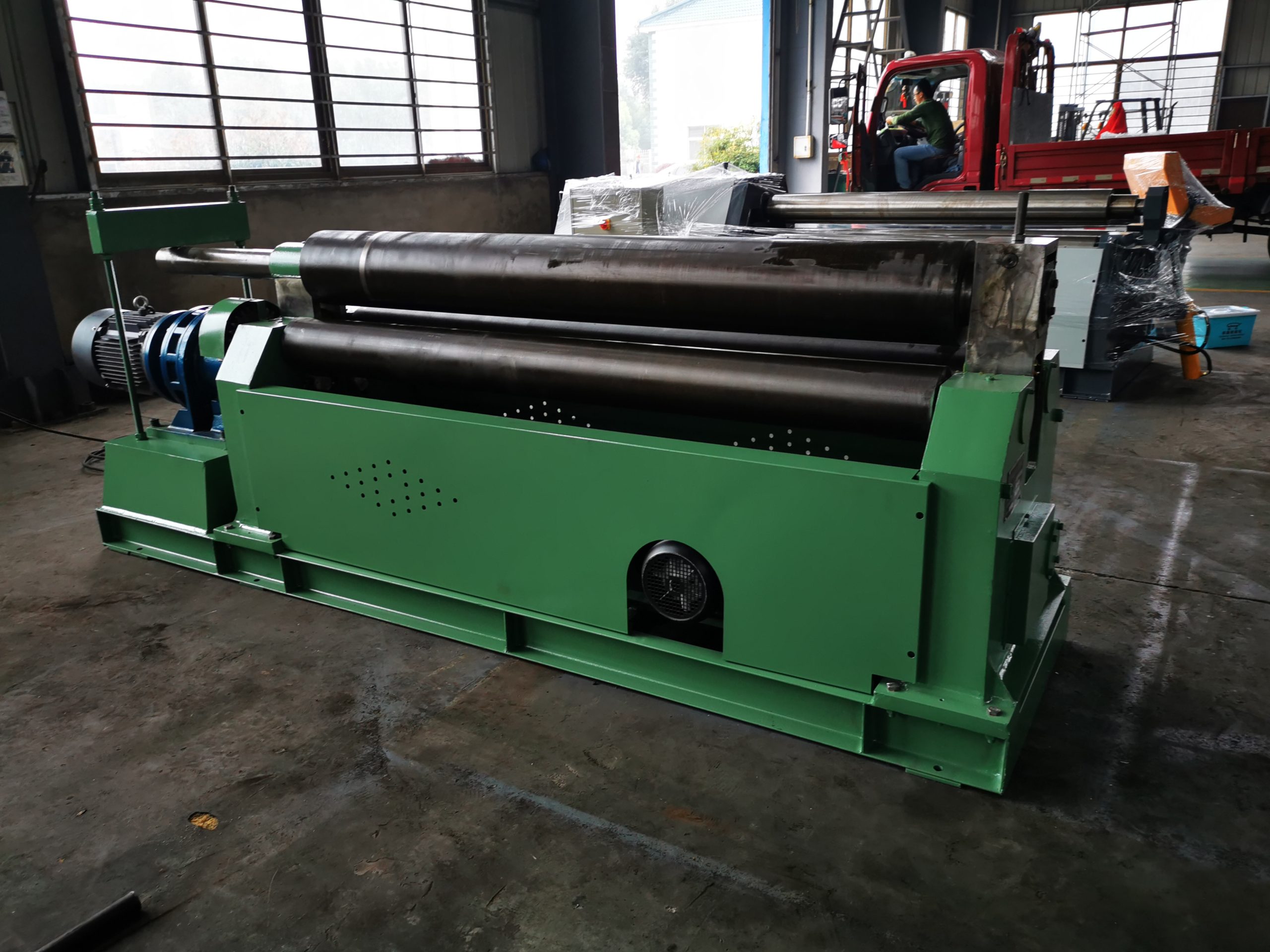

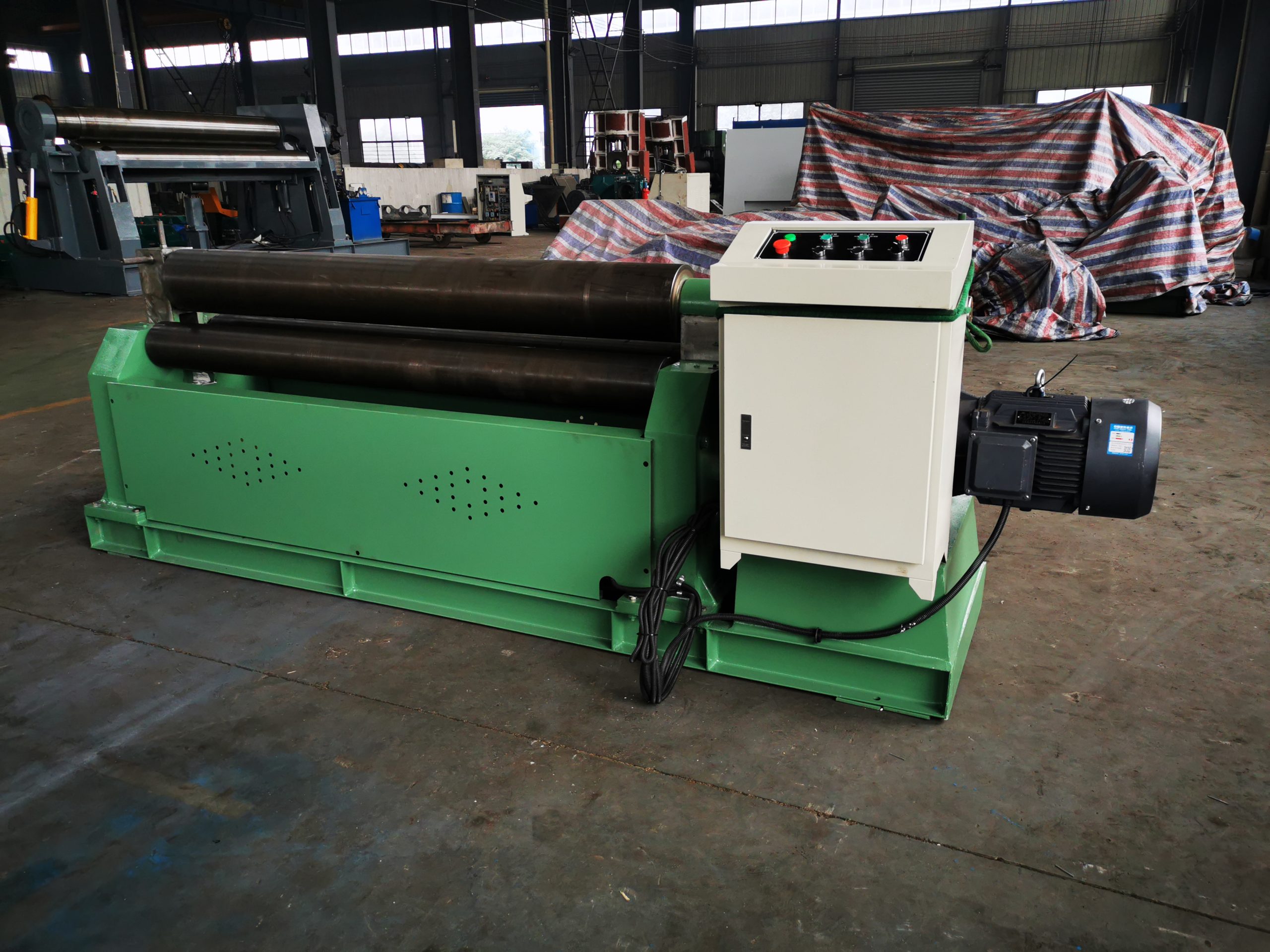

The W11-12×2000 is a production-grade hydraulic plate rolling machine designed to form precise cylinders and cones from 12mm × 2000mm plates (mild steel). Its 3-roll architecture enables true one-pass pre-bending, short setup time, and repeatable accuracy. Options include CNC/NC programs, hardened/crowned rolls, and top/side supports for thin-wall shells and large diameters.
Specifications
| Model | Max. rolling thickness (mm) | Max. rolling width (mm) | Diameter of top roller (mm) | Diameter of bottom roller (mm) | Central distance between bottom rollers (mm) | Min. full-loading diameter of coiled plate (mm) | Rolling speed (m/min) | Motor power (kW) |
|---|---|---|---|---|---|---|---|---|
| W11-4×1500 | 4 | 1500 | 150 | 120 | 180 | 300 | 5 | 3 |
| W11-4×2000 | 4 | 2000 | 160 | 140 | 220 | 450 | 4 | 4 |
| W11-4×2500 | 4 | 2500 | 180 | 150 | 220 | 450 | 4.5 | 4 |
| W11-6×1500 | 6 | 1500 | 160 | 140 | 220 | 450 | 5 | 4 |
| W11-6×2000 | 6 | 2000 | 170 | 150 | 220 | 400 | 4 | 4 |
| W11-6×2500 | 6 | 2500 | 190 | 150 | 240 | 500 | 4.5 | 5.5 |
| W11-6×3000 | 6 | 3000 | 220 | 160 | 240 | 600 | 4 | 5.5 |
| W11-6×3200 | 6 | 3200 | 220 | 160 | 240 | 600 | 4 | 5.5 |
| W11-8×2000 | 8 | 2000 | 180 | 150 | 240 | 500 | 4 | 5.5 |
| W11-8×2500 | 8 | 2500 | 220 | 160 | 240 | 600 | 4 | 5.5 |
| W11-8×3000 | 8 | 3000 | 250 | 180 | 280 | 400 | 4 | 7.5 |
| W11-10×2000 | 10 | 2000 | 220 | 180 | 280 | 550 | 4 | 7.5 |
| W11-12×2000 | 12 | 2000 | 240 | 180 | 280 | 600 | 4 | 7.5 |
| W11-12×2500 | 12 | 2500 | 260 | 220 | 320 | 600 | 4 | 7.5 |
| W11-12×3000 | 12 | 3000 | 280 | 240 | 300 | 700 | 4 | 11 |
| W11-12×3200 | 12 | 3200 | 280 | 240 | 300 | 700 | 4 | 11 |
| W11-16×2000 | 16 | 2000 | 260 | 220 | 320 | 700 | 4 | 7.5 |
| W11-16×2500 | 16 | 2500 | 280 | 240 | 360 | 700 | 4 | 11 |
| W11-16×3000 | 16 | 3000 | 340 | 260 | 430 | 800 | 4 | 15 |
| W11-16×3200 | 16 | 3200 | 340 | 260 | 430 | 800 | 4 | 15 |
| W11-20×2000 | 20 | 2000 | 280 | 240 | 360 | 700 | 4 | 15 |
| W11-20×2500 | 20 | 2500 | 340 | 260 | 430 | 850 | 4 | 15 |
| W11-25×2000 | 25 | 2000 | 340 | 260 | 430 | 900 | 4 | 15 |
| W11-25×2500 | 25 | 2500 | 370 | 270 | 480 | 1200 | 4 | 22 |
| W11-30×2500 | 30 | 2500 | 420 | 360 | 550 | 1200 | 4 | 30 |
| W11-30×3000 | 30 | 3000 | 450 | 360 | 600 | 1200 | 4 | 37 |
Features
1.Symmetric 3-roll design with driven lower rolls and adjustable upper roll
2.Integrated welded base, high rigidity, stress-relieved and precision-machined
3.Main motor + reducer drive train with gear-coupled dual lower rolls
4.Auxiliary motor + reducer + worm/worm-wheel for upper-roll lifting via ball screws
5.Fast unloading with tilting bearing seat and balance pull-rod
6.Critical parts in forged 45-steel; robust welded frame/base
7.CHINT electrical components; reliable, safe, and easy to operate
