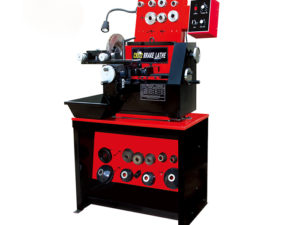

Brake Disc Lathe – C9372

Brake Disc Lathe – C9372
November 18, 2019 Grace Gui 0 Comments

The machine C9372 is mainly used for boring and repairing the brake drum and plate for a pick-up truck, car, and mini car.

Specification

SpecificationC9372
Rotor diameter4″-24″(102mm-610mm)
Maximum rotor thickness2.85″(73mm)
Drum diameter6″-28″(152mm-711mm)
Drum depth9″(229mm)
Flywheel diameter6″-24″(152mm-610mm)
Spindle weight capacity(standard 1″ Arbor)1501bs(68kg)
Spindle speed70-320RPM
Feed rates-rotor and drum0″-0.026″(0mm-0.66mm)
Feed rate per minute2.54″(64.5mm)
Motor110V/220V 50/60HZ 0.6KW
Shipping weight300kg
Dimension (L×W×H)1130mm×1720mm×1750mm
