How Can 5-axis Machining Center Improve Surface Machining Quality?

1. How Can 5-axis Machining Center Break Through the Bottleneck of Complex Surface Machining?

When making complex surface parts like aerospace impellers, ship propellers and automotive turbines, traditional 3-axis machine tools have three big problems:

1. Tool interference: When you’re machining deep-cavity structures, the tool shank often hits the workpiece, which ends up as a scrap rate of up to 35%.
2. Speed fluctuations: changes in the surface curvature cause the feed speed to fluctuate by more than ±20%, which leads to chatter marks.
3. Surface defects: the zero linear speed of the bottom surface of the ball end mill produces fish scale marks (Ra>1.6μm)

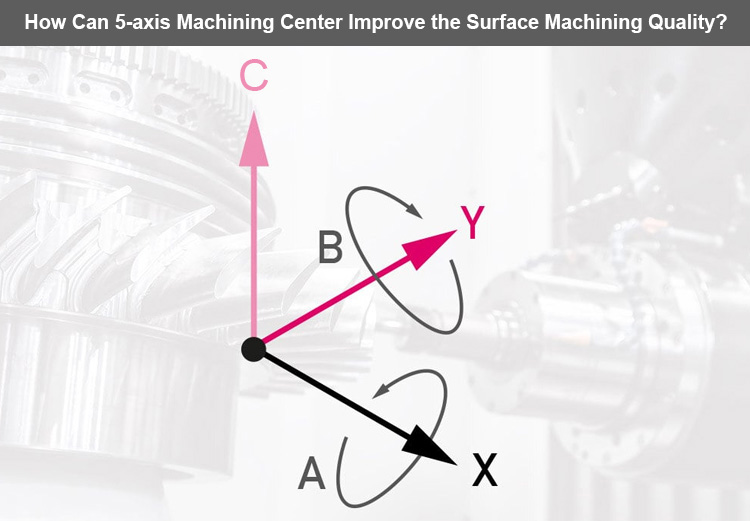

The five-axis machining centre achieves three major technological breakthroughs through the XYZAC five-axis linkage:

1. Tool attitude dynamic optimisation: the A/C axes adjust the tool inclination angle in real time to enable continuous cutting by the side edge (effective linear speed increased by 300%)
2. Intelligent balancing of cutting forces: real-time monitoring by a six-dimensional force sensor, load fluctuations<±5%
3. Active compensation of thermal deformation: 12 temperature sensors embedded in the machine bed, accuracy drift≤0.003mm/℃

2. How Can Extreme Stability of Processing Speed Be Achieved?

2.1 How Does the Drive System Eliminate Motion Hysteresis?

Here’s an example of how it’s done: after an aviation blade factory switched to a linear motor five-axis machine tool, the blade root groove went from 1200mm/min to 4800mm/min, and the surface ripple dropped by 72%.

2.2 How Does the Control System Respond to Sudden Changes in Trajectory?

Global forward-looking optimisation:

CAM software generates i-code to support continuous forward-looking programming of up to 8,000 lines.

Smooth transition of speed/acceleration curve to eliminate corner impacts.

Double NURBS interpolation:

Simultaneous fitting of the tool tip point and tool axis vector to a fifth-order spline curve.

Speed fluctuation rate<±2%, acceleration change rate<0.1g/s.

3. How Can a Mirror-Like Finish Be Achieved?

3.1 How Does Cutting Tool Technology Innovate Cutting Quality?

Key Process Points:

Use 10-30° inclined side milling to avoid zero-speed cutting on the bottom surface.

Spiral feed instead of vertical downward cutting to reduce impact vibration.

3.2 How Are Process Parameters Intelligently Matched?

Database for cutting:

Stores up to 5,000 material-tool-parameter combos.

Automatically recommends optimal speed/feed (error <3%).

Online monitoring system:

Acoustic emission sensor detects tool wear in real time.

Automatically compensates for tool wear (accuracy 0.001mm).

4. How are Industry Pain Points Solved by 5-axis Technology?

4.1 Aerospace: Impeller Processing Efficiency Revolution

Traditional Process:

5 set-ups needed, cumulative error 0.12mm.

Processing cycle 72 hours, 8 tools used.

5-axis Solution:

5-sided processing done in one set-up.

Cycle time reduced to 28 hours, 3 tools used.

Blade contour accuracy 0.015mm (300% improvement).

4.2 Shipbuilding: Propeller: Precision Breakthrough

Technical difficulties:

Diameter > 8m copper alloy propeller surface distortion control.

Traditional processing tool marks obvious (height > 0.1mm).

Five-axis innovation:

Trochoidal milling process to achieve continuous cutting.

Surface roughness Ra 0.8μm, profile accuracy ± 0.05mm.

5. How Does Intelligent Technology Promote the Evolution of 5-Axis Machining?

5.1 How Does Digital Twin Predict Machining Defects?

Virtual Machine Tool System:

1:1 restore the kinematics model of the physical machine tool.

48-hour early warning of tool interference risks.

Application Case: virtual testing of a turbine housing for a car company before machining to avoid 17 potential collisions.

5.2 How Does AI Optimize Machining Parameters?

Deep Learning Engine:

Analyses 100,000+ machining records to build a predictive model.

Offers real-time recommendations for the best cutting parameters (response time: < 0.1s).

Results Data:

Machining efficiency increased by 25%.

Tool life extended by 40%.

6. Future Trends in 5-Axis Machining Center

Modular design: quick-change motor spindles enable combined turning and milling (switching time < 15 minutes).

Carbon-fibre structure: 40% weight reduction of the machine bed, 50% improvement in dynamic response.

Quantum measurement system: nanometre-level precision feedback control (resolution 0.1nm).
