Description

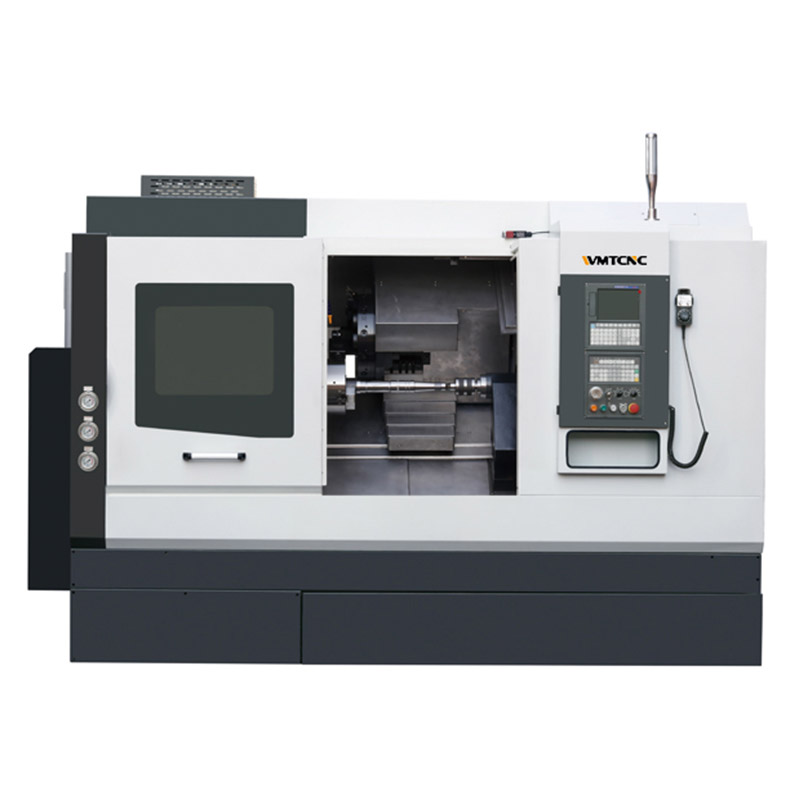

WMTCNC lathe turning center TX600 is a turning center able to flexibly handle various workpieces. The 12-station Power Turret enables the operator to machine simple to complex workpieces with one easy setup operation. These models also feature a Direct Drive Spindle( Integrated Motor) that reaches high speed while maintaining strict rigidity and exceptional C-Axis accuracy. The models can satisfy a wide range of users from beginners of shop production to group corporations with experienced technicians.
Specification
| Specification | Unit | TX600 | |
|---|---|---|---|
| Capacity | Chuck size | inch | 10, 12 |
| Max. swing dia. over bed | mm | 700, 850, 1350 | |
| Max. length of workpiece | mm | Ø600 | |
| Max. swing dia. over slide | mm | Ø350 | |
| Spindle | Spindle bore | mm | Ø86 |
| Max. dia. of through-hole | mm | Ø75 | |
| Spindle nose | type | A2-8 | |
| Spindle speed | rpm | 3000 | |
| Main motor power | kW | 37, 45 | |
| Axis | X axis travel | mm | 280 |
| Z axis travel | mm | 750, 1000, 1500 | |
| X/Z rapid traverse | m/min | 20/20 | |
| Turret | No. of tool stations | pcs | 12 |
| Tool shank size | BMT55, VDI40 | ||
| Max. speed of driving tool | rpm | 4000, 5000 | |
| Tailstock | Type of tailstock | Hydraulic, SPT, HPT | |
| Taper of tailstock quill | MT5 | ||
| Travel of tailstock | mm | 100-750, 1000 | |
| Others | Power capacity | kVA | 45 |
| Overall dimension (LxWxH) | mm | 3200x1920x2130 | |
| Weight (about) | kg | 5900 | |
Features
WMTCNC lathe turning center TX600 has a heavy-duty cast base with “True Align”Slant bed design.
The machine bed, head stock, turret and tailstock are aligned on the same plane.
This Unique design feature reduces heat build-up and resulting thermal expansion.
Cylindrical Roller type guideways and large diameter high precision ballscrew provides improved rigidity and higher accuracy.
With a very low coefficient of friction, they consume less power and do not require adjustment.
The tailstock body is positioned by hydraulic traction bar on roller linear guideway.
Tremendous reduction in set up, compared to hydraulic sleeve type manual tailstock.
