Description

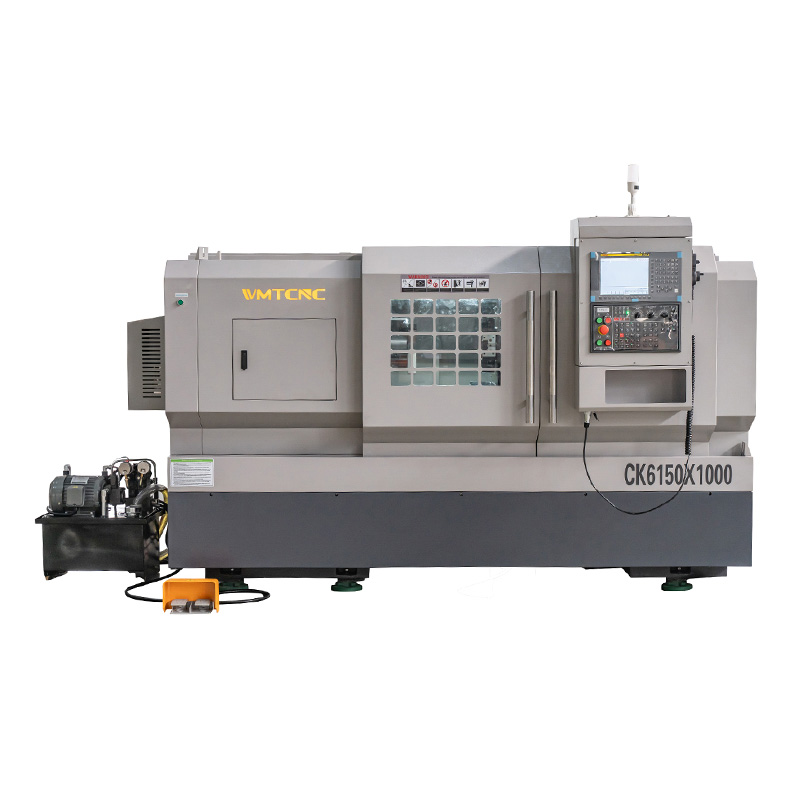

Mainly used for turning inner and outer cylindrical surface, end surface, taper surface, arc surface and thead of shaft, etc., with high efficiency and accurate processing. WMTCNC precision cnc lathe CK6150 will offer you perfect service by excellent performance, strong rigidity, long-term stability and higher accuracy.
If you’re searching for high-precision CNC lathe machines, look no further. WMTCNC is a trusted manufacturer and supplier specializing in CNC turning, precision CNC lathe turning, and heavy-duty CNC machining. Our products include top-quality CNC lathes, such as the CK6150X1000, and CK6166 CNC precision lathes. These models are engineered for outstanding accuracy in CNC turning.
As a leading CNC lathe supplier, we offer CNC lathes for a wide range of applications, from CNC milling machines to heavy equipment machining. Our CNC lathes are renowned for their precision and reliability. Whether you need computerized lathe machines for small-scale production or heavy-duty CNC lathe machines for larger operations, we have the right solution for you.
Explore our extensive selection of CNC turning machines. We’re confident you’ll find the perfect CNC lathe to meet your manufacturing needs.
Specification
| Specification | CK6150 |
| Capacity | |
| Chuck size | 10” |
| Max. swing dia. over bed | 500mm |
| Max. swing dia. over slide | 280mm |
| Distance between center | 750/1000/1500/2000mm |
| Width of bed | 400mm |
| Spindle | |
| Spindle speed range | 150-1500rpm |
| Spindle bore | Φ82mm |
| Max. dia. of through-hole | Φ60mm |
| Spindle nose | A2-8(*105mm for A2-11) |
| Spindle taper | Φ90mm 1:20,*105mm for 105mm 1:20 |
| Axis | |
| X axis travel | 350mm |
| Z axis travel | 750/1000/1500/2000mm |
| X/Z axis rapid traverse | 6/8m/min |
| Turret | |
| Type | Electrical type |
| No. of tool stations | 4,*6,*8 position |
| Max. section of tool | 25x25mm |
| Tailstock | |
| External diameter | Φ80mm |
| Travel of tailstock quill | 150mm |
| Taper of tailstock quill | MT5 |
| Motor | |
| Spindle motor power | 7.5kw,*11kw |
| Coolant pump power | 180w(120w) |
| Machine Dimensions | |
| Overall dimension (L×W×H) | 2420/2860/3110/3620x1600x1750mm |
| Packing size(L×W×H) | 2600/3050/3350/3850x1800x2220mm |
| N.w | 2750/3100/3350/3550kg |
| G.w | 3000/3450/3750/3950kg |
Main Features
- Full enclosure complete, safe and easy operation.
- High rigidity casting bed.
- High precision spindle bearing.
- GSK, FANUC ,Siemens system as optional selection.
- Precision cnc lathe bed guideways industively hardened.
Machine Details
3 jaw chuck
4 position toolpost
GSK, Fanuc, Siemens controller as optional selection
6 position toolpost for optional
