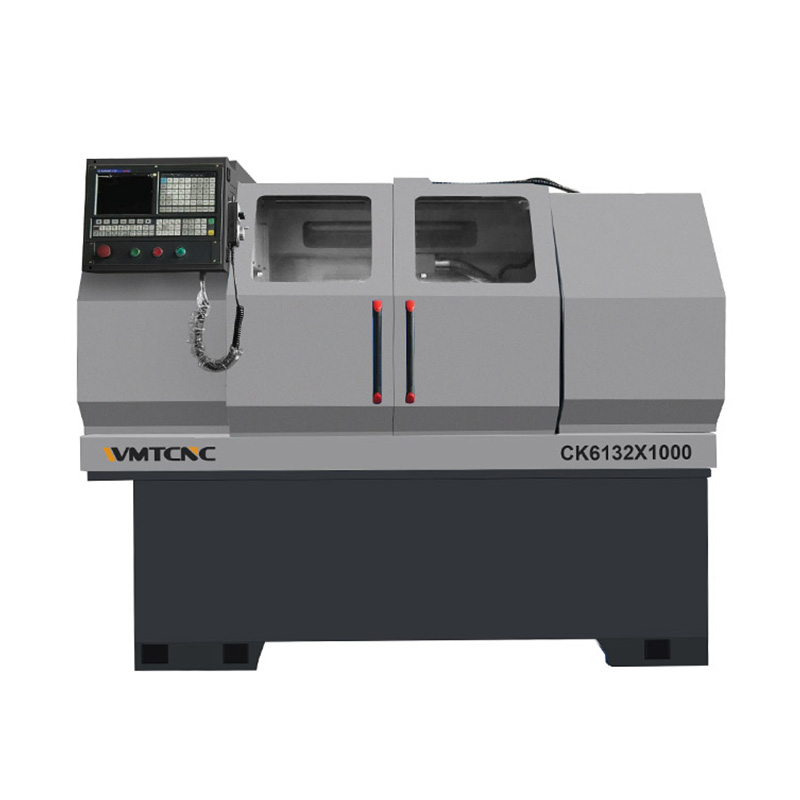

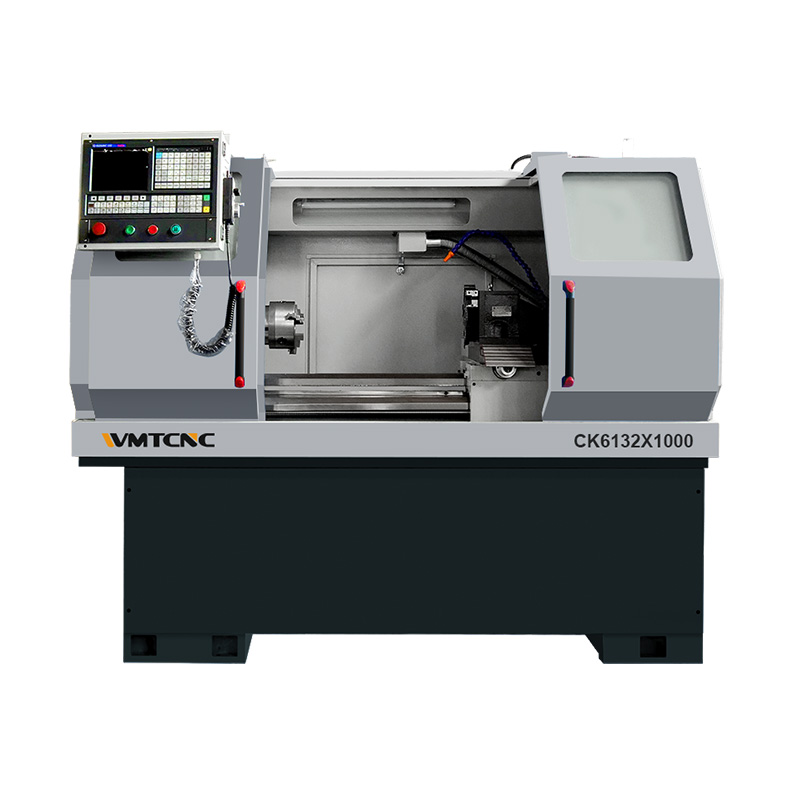

CK6132 CNC Metal Lathe - High Precision Flat Bed Lathe

Description

The CK6132 CNC Metal Lathe is a high-precision flat bed lathe designed for accurate machining of metal components. Its robust construction and advanced features ensure excellent performance and precision. The induction-hardened bed ways and high-precision spindle bearings provide rigidity and accuracy. Meanwhile, the grinding-grade ball screw guarantees stable positioning. In addition, the monoblock cast iron base enhances the machine’s overall rigidity. With various capacities and multiple tool stations, this CNC metal lathe is a reliable choice for diverse machining applications.

At WMT CNC, we offer a full range of CNC metal lathes, including high-precision lathes, flat bed CNC lathes, and CNC turning machines for different industries. Our product lineup features popular models like CK0640, CK6132, and CK6150, as well as small CNC metal lathes and high-end CNC lathe machines for metal. Whether you need a metal turning CNC solution, a CNC flatbed lathe, or a CNC lathe machine for metal, we provide reliable and advanced equipment.

Additionally, we offer CNC metal lathe machines for automotive CNC metal turning, supported by Fanuc lathe systems for superior accuracy. As leading CNC metal lathe machine suppliers, we deliver flat bed CNC lathe machines and CNC machining lathes to meet your production needs. Explore the differences between a lathe vs. CNC and what a CNC lathe is to better understand modern machining technology.

Specification of CK6132

Specification	CK6132
Capacity
Chuck size	6”, *8”
Max. swing dia. over bed	360mm
Max. swing dia. over slide	150 mm
Distance between center	500/750/1000mm
Width of bed	215mm
Spindle
Spindle speed range	150-2500 rpm
Spindle bore	Φ40mm
Max. dia. of through-hole	Φ28mm
Spindle nose	A2-5
Spindle taper	MT5
Axis
X axis travel	180mm
Z axis travel	500/750/1000mm
X/Z axis rapid traverse	6/8m/min
Turret
Type	Electrical type
No. of tool stations	4, *6 position
Max. section of tool	4P (20x20mm),*6P (16x16mm)
Tailstock
External diameter	Φ32mm
Travel of tailstock quill	100mm
Taper of tailstock quill	MT4
Motor
Spindle motor power	4kw
Coolant pump power	120w
Machine Dimensions
Overal dimension (L×W×H)	1620/1850/2150x1150x1600mm
Packing size(L×W×H)	1780/1960/2260x1320x2000mm
N.w	800/900/1050kg
G.w	950/1100/1300kg

Main Features

High Precision Machining: The CK6132 CNC Metal Lathe is engineered to deliver high precision machining results, making it suitable for a wide range of metalworking projects.
Induction-Hardened Bed Ways: The bed ways of this lathe have been induction hardened to achieve a hardness of around HRC50, ensuring excellent durability and long-term accuracy.
High-Speed Spindle: The lathe features a spindle with a speed range of 150-2500 rpm, allowing for efficient machining of various materials.
Stable Positioning Accuracy: The use of high-quality grinding-grade ball screws ensures stable and precise positioning accuracy, resulting in consistent machining performance.
Durable Construction: The monoblock cast iron base provides exceptional rigidity, ensuring stability and reducing vibration during machining operations.
User-Friendly CNC Controls: Equipped with electrical type turret and easy-to-use CNC controls, the lathe offers intuitive operation and efficient programming for enhanced productivity.
