Description
Lathe is a machine that rotates a workpiece about an axis of rotation to perform various operations such as cutting, sanding, knurling, drilling, deformation, facing, and turning.
Specification
| Specification | D290(V) |
|---|---|
| Max. swing over bed | φ290mm |
| Distance between centers | 700mm |
| Swing over cross slide | 180mm |
| Width of bed | 182mm |
| Spindle bore | 38mm |
| Taper of spindle bore | MT5 |
| Range of spindle speeds (variable speed) | 80-2000rpm |
| Speed steps (6 steps) | 150 / 300 / 600 / 500 / 1000 / 2000 rpm |
| Metric threads can be cut | 0.2-3.5mm |
| Inch threads can be cut | 8-56TPI |
| Top slide travel | 70mm |
| Cross slide travel | 160mm |
| Tailstock quill travel | 70mm |
| Taper of tailstock quill | MT3 |
| Motor power | 1500W |
| NW/GW | 250/270kg |
| Packing size (L×W×H) | 1450×700×680mm |
Main Features
- 38mm spindle bore.
- With variable speed.
- Widely useful, operation very easy, processing scope widespread.
- Best choice for hobby users.
Machine details

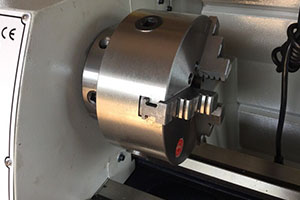

3 jaw chuck

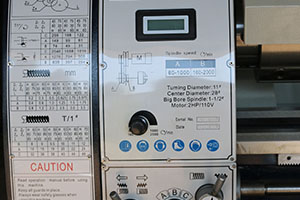

Digital read out of speed

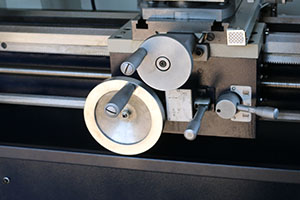

Handwheel

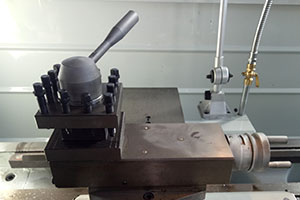

4 position toolpost
