Description
There’s never been a better time to get into metalworking – or a better price on a professional-quality WMTCNC metalworking lathe. The D240×500G is precision-crafted by one of our most-trusted factories for superior accuracy and long-lasting dependability.
Specification
| Specification | D240×500G |
|---|---|
| Max. swing over bed | 250mm（10＂） |
| Distance between centers | 550mm（22＂） |
| Spindle bore | 21mm |
| Taper of spindle bore | MT3 |
| Range of spindle speeds (6 Steps) | 125-2500rpm |
| Taper of tailstock quill | MT2 |
| Metric threads can be cut | 0.2-3.5mm |
| Inch threads can be cut | 8-56 T.P.I |
| Motor power | 0.6kW |
| Net/Gross Weight | 120/150kg |
| Package size (L×W×H) | 1200×560×580mm |

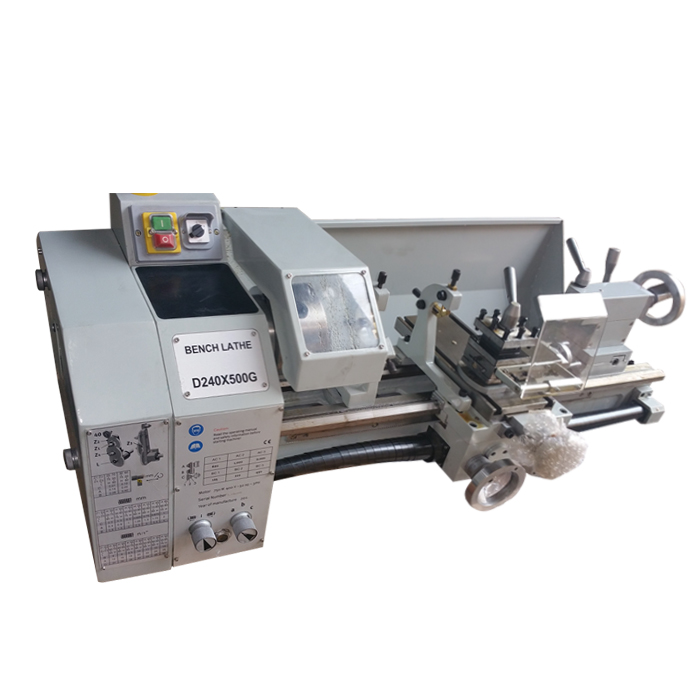

Machine Pictures
