Description

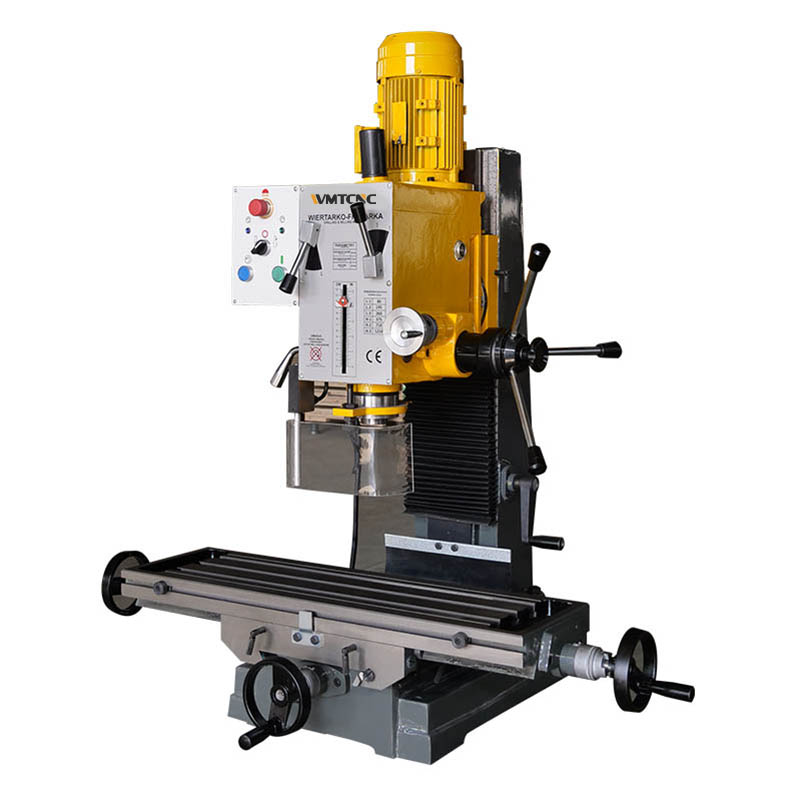

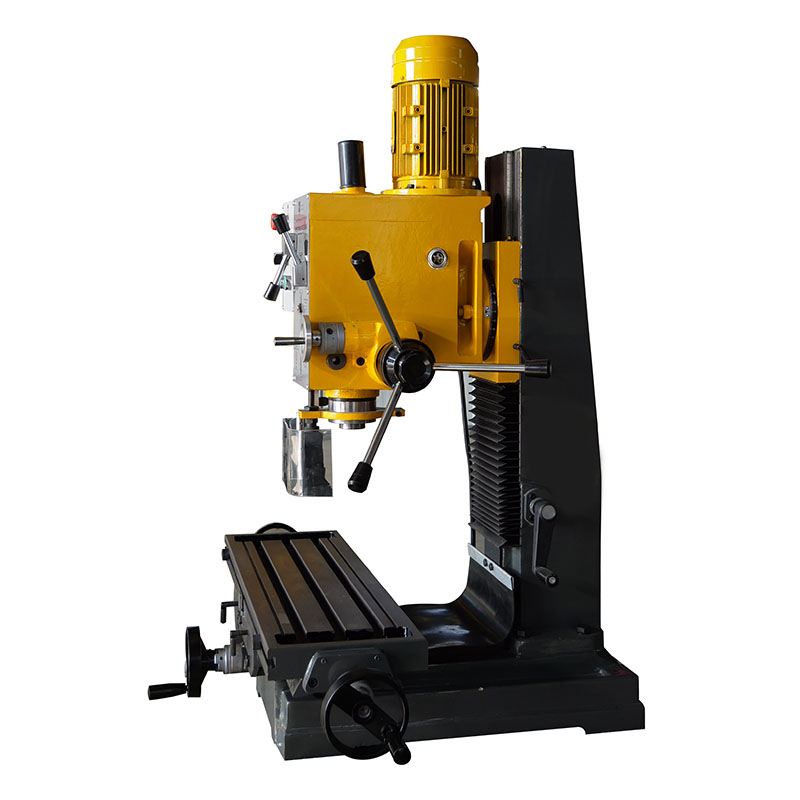

The WMT CNC ZAY7045FG is a reliable milling and drilling machine that blends affordability with solid performance. Designed to handle diverse workshop tasks, it provides the power and stability needed for both seasoned machinists and newcomers. As one of the newer models in WMTCNC’s lineup, the ZAY7045FG is built with durability in mind while keeping costs competitive, making it a smart investment for those seeking efficiency without sacrificing quality.
Its robust construction ensures dependable operation, and its user-friendly features make it easy to integrate into everyday machining. With this model, WMTCNC continues to deliver solutions that combine practical value with long-term productivity for modern manufacturing.
Machine Details
 |  |

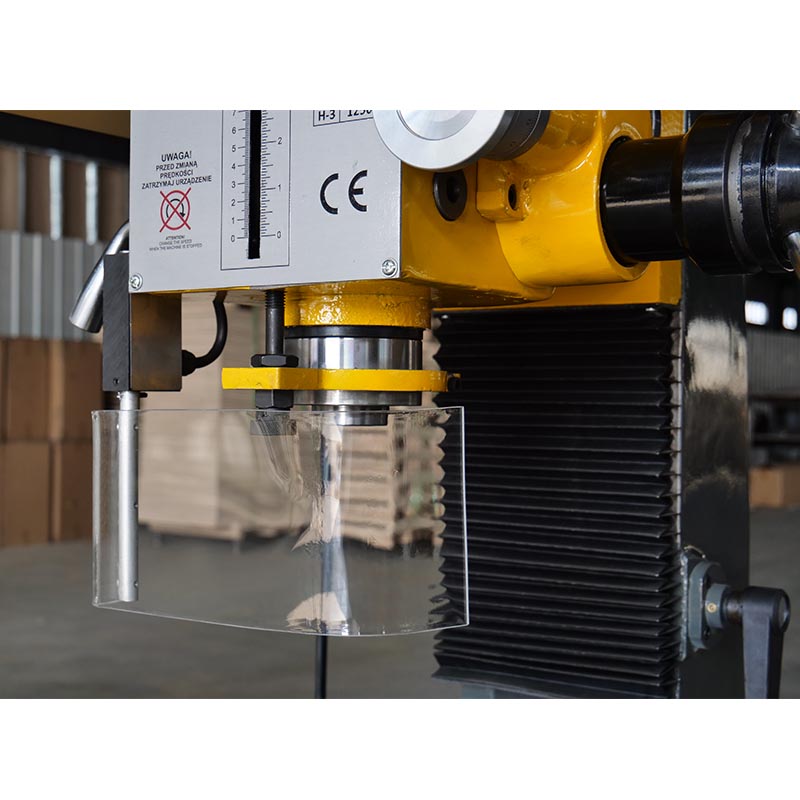

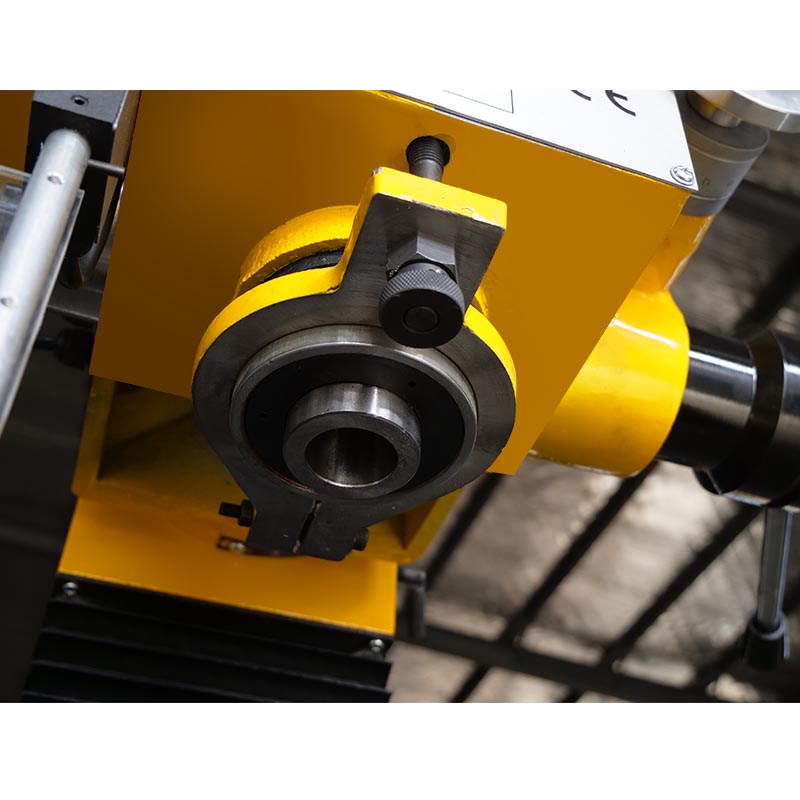

| Spindle | DRO for optional |
 |  |

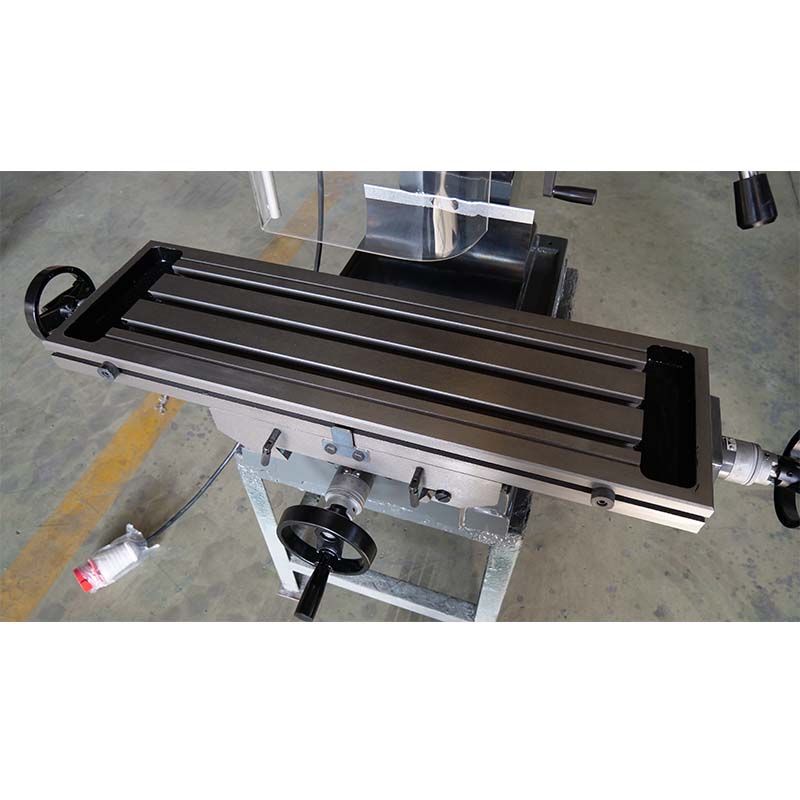

| Working table | Electrical box |
Specification of Drilling and Milling Machine ZAY7045FG
| Specification | ZAY7045FG |
| Max. drilling capacity | 45mm |
| Max. tapping capacity | 20mm |
| Max. face milling capacity | 80mm |
| Max. end milling capacity | 32mm |
| Max. distance from spindle nose to table | 450mm |
| Min. distance from spindle axis to column | 260mm |
| Spindle travel | 130mm |
| Spindle taper | MT4 |
| Step of spindle speed | 6 steps |
| Range of spindle speed 50HZ | 80-1250rpm |
| Range of spindle speed 60HZ | 95-1500rpm |
| Swivel angle of headstock (vertical) | ±45° |
| Table size | 800×240mm |
| Forward and backward travel of table | 175mm |
| Left and right travel of table | 500mm |

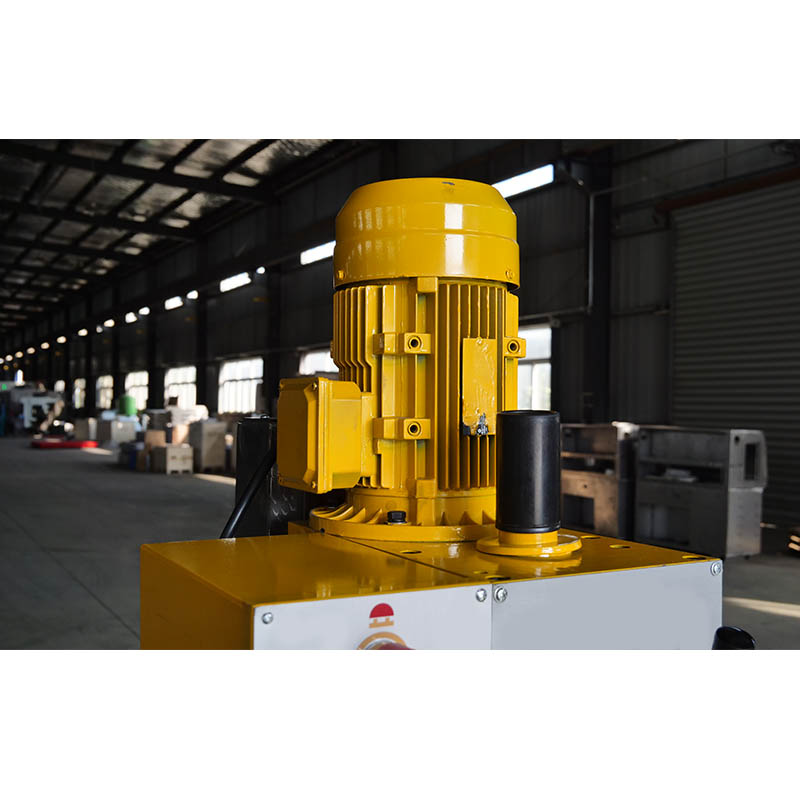

| Motor power | 1.5kw (2HP) |
| N.w/G.w | 320/370kg |
| Packing size (LxWxH) | 770×880×1160mm |
| Loading amount/20″ container | 36pcs |
Main Features
- Milling,drilling, tapping,boring,reaming
- Head swivels ±45°verticaly
- Spindle micro feed precision

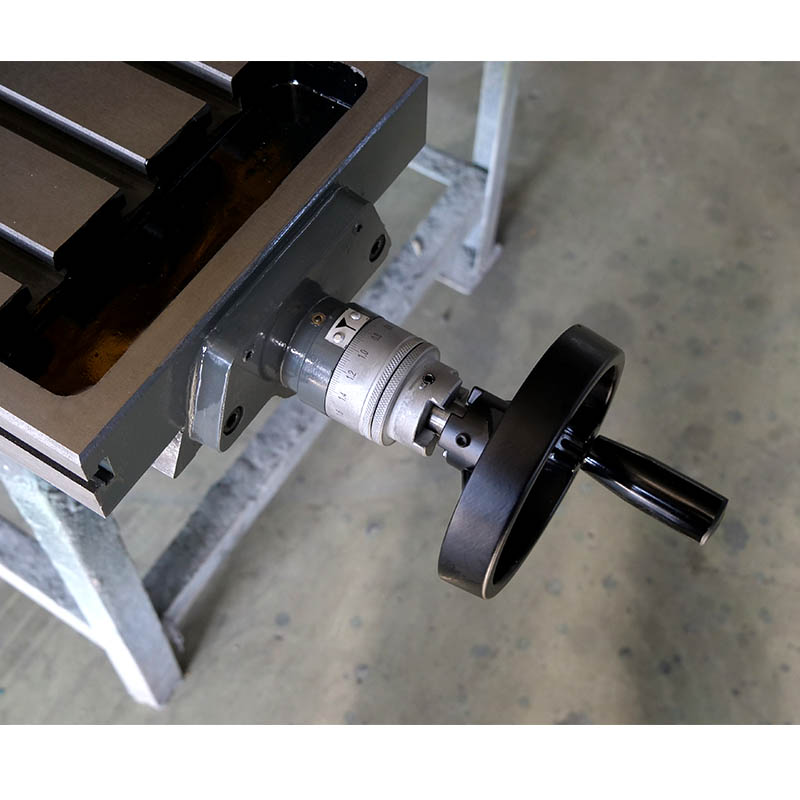

- Adjustable gibs on table precision
- Accurate position ,strong rigidity , powerful cutting
- Gear-driven type and square column.
