Description
Radial drilling machine Z3032 is provided with hydraulic presetting speed shift mechanism to save auxiliary time. It only needs one handle to operate clockwise rotation, stop (brake), variable speed and neutral gear conveniently. Spindle box, rocker arm, inner and outer posts are reliably clamped by hydraulic diamond clamping mechanism. Perfect safety protector and outer post protection are available. In design and production of structure, it further adopts a series of effective measures to prolong precision durability and lifespan of whole machine. Its electrical equipment completely contributes to personal safety, reliability, long service life and convenient maintenance.
Specification of Radial Drilling Machine Z3032
| Specification | Z3032 |
|---|---|
| Max. Drilling Capacity | 31.5/25mm |
| Spindle Travel | 140mm |
| Distance Spindle Axis to Column Surface | 720/300mm |
| Max. Distance Spindle Nose to Worktable | 380mm |
| Max. Distance Spindle Nose to Base | 680mm |
| Spindle Taper | MT.3 |
| Spindle Speeds Range (rpm) | 100–1600rpm |
| Spindle Speeds | 8 |
| Dimension of Worktable Surface | 250×250×250mm |
| Dimension of Base | 1050×550mm |
| Overall Height | 1195mm |
| Motor | 0.75KW |
| G.W. / N.W. | 400 / 380kg |
| Ship Measurement | 119×64×133cm |
Machine Features
Hydraulic Speed Shift:One-handle operation for rotation, stop, speed change, and neutral gear saves time.
Hydraulic Clamping System:Spindle box, rocker arm, and columns are clamped securely via hydraulic diamond mechanism.
Durable Structure:Reinforced design ensures long-term precision and extended machine lifespan.
Safety Protection:Equipped with safety guards and outer post covers for operator protection.
Reliable Electrical System:Electrical components are safe, durable, and easy to maintain.
Versatile Drilling:Supports max drilling capacity of 31.5mm with MT.3 spindle taper.
Wide Speed Range:Offers 8 spindle speeds from 100 to 1600 rpm for flexible operation.
Compact and Stable Design:Space-saving size with solid base suits various workshop setups.
Machine Details

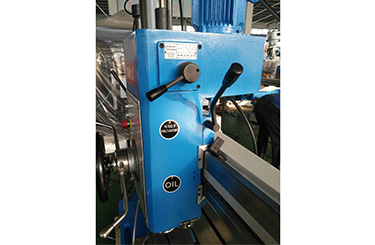

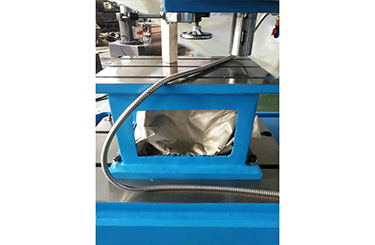

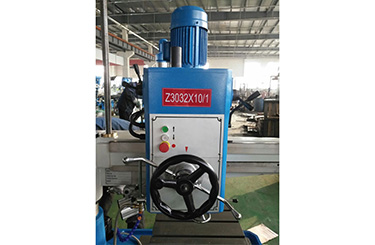

 Workbench |  Spindle Box |
