Description
Applicable for repairing brake drum of vehicles & tractors of auto repair plant, brake drum manufacturer, bus company & transportation company, etc. Optional for brake shoe or hubless brake drum.
Specification
| Specification | T8380 |
| Processing diameter | 200–800 mm |
| Rotating speed of workpiece | 38 / 62 rpm |
| Working travel of slideboard | 450 mm |
| Main power | 1.1 kW |
| Overall dimensions (L × W × H) | 1150 × 580 × 1658 mm |
| Packing dimensions (L × W × H) | 1250 × 680 × 1758 mm |
| N.W. / G.W. | 1000 / 1150 kg |
Main Features
- Base (thickness 450mm) integrated with transmission system enables high rigidity.
- Max. brake drum diameter: T8370 – 700mm / T8380 – 800mm. Rotation in either direction & fast up/down enables high efficiency.
- Applicable for brake drums of various vehicles like FAW, Dongfeng, Howo, Steyr, Hongyan, medium buses & vans, Fuhua axle, Anhui axle, Hande axle, York axle, BPW axle, Shuguang axle, etc.
- T8380 is equipped with movable column for brake drum/shoe in different diameters.

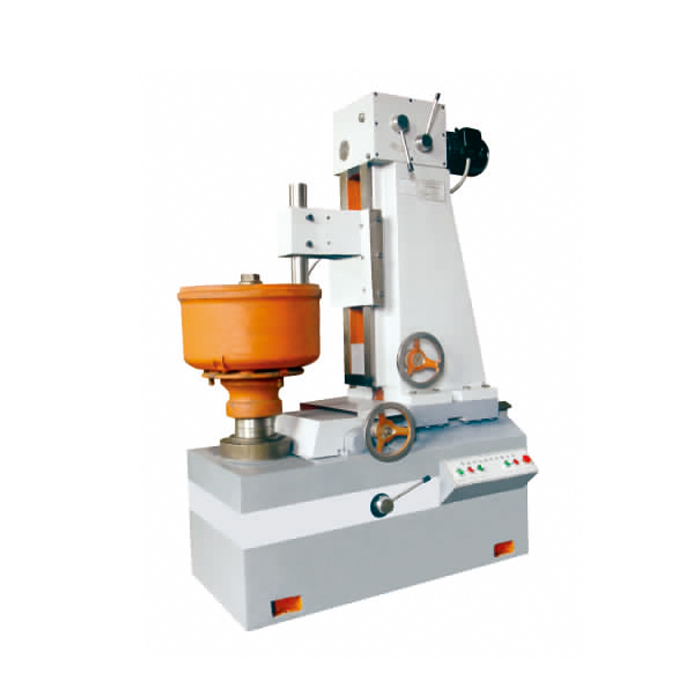

Machine Details
