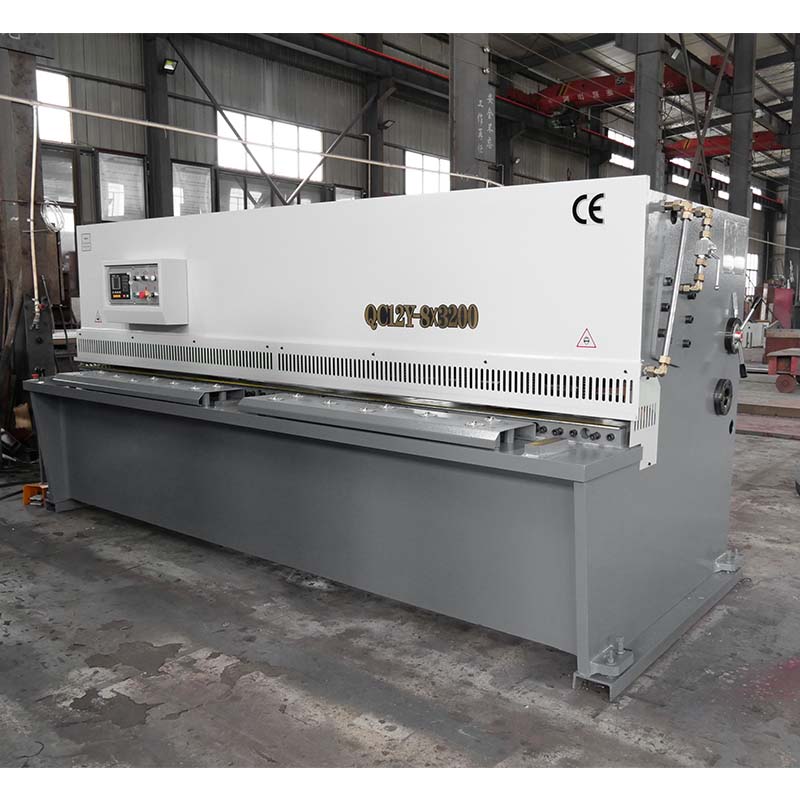

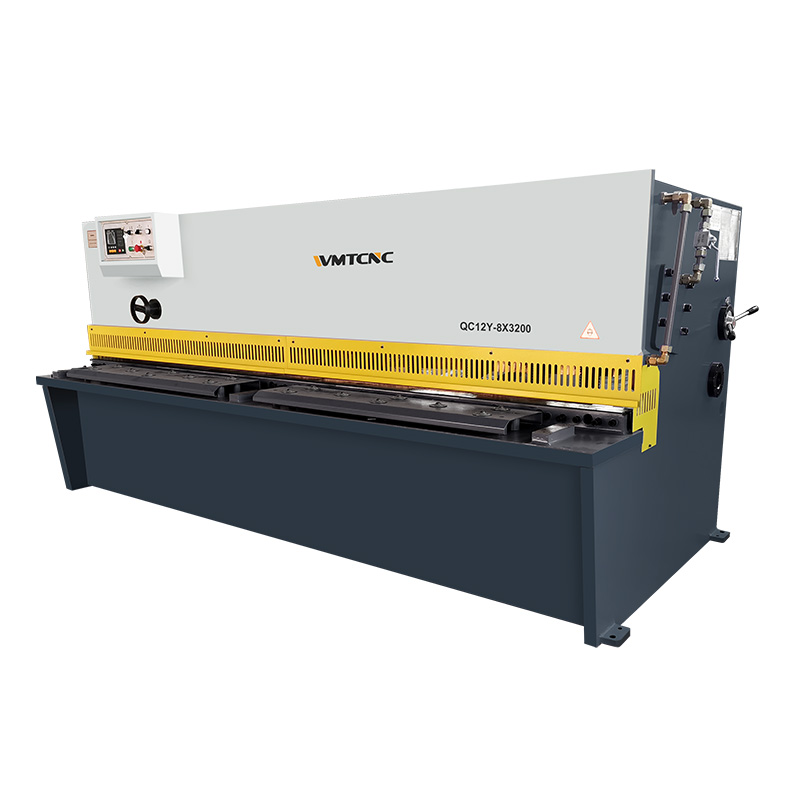

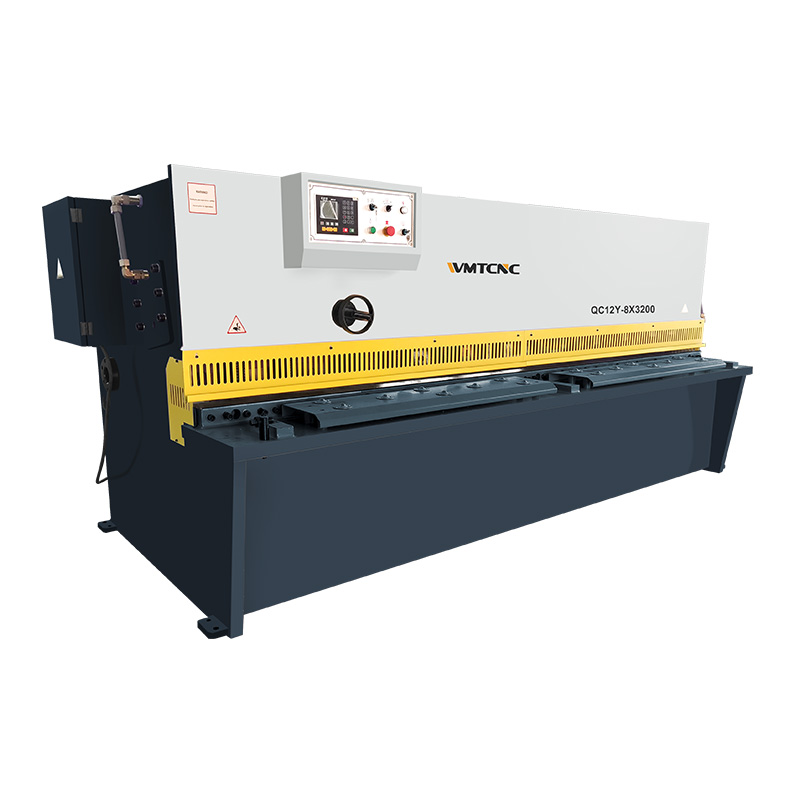

Steel-welded Hydraulic Swing Beam Plate Shear QC12Y-8X3200

Hydraulic Swing Beam Plate Shear QC12Y-8X3200 – Precision Sheet Metal Cutting Machine

Cutting length: 2500/3200/4000/6000mm
Cutting thickness: 8mm
Back gauge range: 10-600mm
Motor power: 11kw
Brand Name:WMTCNC

Description

The Hydraulic Swing Beam Plate Shear QC12Y-8X3200 is engineered for precision, durability, and efficiency in metal fabrication. Designed for cutting steel plates up to 8 mm thickness and 3200 mm width, it combines advanced hydraulic technology with a swing beam cutting system to ensure smooth, deformation-free shearing.

Specifications

Model	Shear Thikness	Shear Width	Shear Angle	Number of Stroke	Backgauge Range	Main Power
QC12Y-4×2500	4 mm	2500 mm	1º-30′	20 min-1	10-500 mm	5.5 kw
QC12Y-4×3200	4 mm	3200 mm	1º-30′	18 min-1	10-500 mm	5.5 kw
QC12Y-4×4000	4 mm	4000 mm	1º-30′	12 min-1	10-500 mm	5.5 kw
QC12Y-4×6000	4 mm	6000 mm	1º-30′	7 min-1	20-600 mm	7.5 kw
QC12Y-6×2500	6 mm	2500 mm	1º-30′	18 min-1	10-600 mm	7.5 kw
QC12Y-6×3200	6 mm	3200 mm	1º-30′	16 min-1	10-600 mm	7.5 kw
QC12Y-6×4000	6 mm	4000 mm	1º-30′	10 min-1	10-600 mm	7.5 kw
QC12Y-6×6000	6 mm	6000 mm	1º-30′	7 min-1	20-800 mm	11 kw
QC12Y-8×2500	8 mm	2500 mm	1º-30′	14 min-1	10-600 mm	7.5 kw
QC12Y-8×3200	8 mm	3200 mm	1º-30′	10 min-1	10-600 mm	11 kw
QC12Y-8×4000	8 mm	4000 mm	1º-30′	8 min-1	10-600 mm	11 kw
QC12Y-8×6000	8 mm	6000 mm	1º-30′	6 min-1	20-800 mm	15 kw
QC12Y-10×2500	10 mm	2500 mm	1º-30′	12 min-1	20-600 mm	11 kw
QC12Y-10×3200	10 mm	3200 mm	1º-30′	10 min-1	20-600 mm	11 kw
QC12Y-10×4000 QC12Y-12x 2500	10 mm	4000 mm	1º-30′	8 min-1	20-600 mm	15 kw
QC12Y-12×2500	12 mm	2500 mm	2º	10 min-1	20-600 mm	18.5 kw
QC12Y-12×3200	12 mm	3200 mm	2º	9 min-1	20-600 mm	18.5 kw
QC12Y-12×4000	12 mm	4000 mm	2º	8 min-1	20-600 mm	18.5 kw
QC12Y-12×6000	12 mm	6000 mm	2º	4 min-1	20-800 mm	22 kw
QC12Y-16×2500	16 mm	2500 mm	2º	9 min-1	20-600 mm	18.5 kw
QC12Y-16×3200	16 mm	3200 mm	2º	8 min-1	20-600 mm	18.5 kw
QC12Y-16×4000	16 mm	4000 mm	2º	7 min-1	20-600 mm	18.5 kw
QC12Y-16×6000	16 mm	6000 mm	2º	4 min-1	20-800 mm	22 kw
QC12Y-20×2500	20 mm	2500 mm	2º30′	5 min-1	20-800 mm	22 kw
QC12Y-20×3200	20 mm	3200 mm	2º30′	4 min-1	20-800 mm	22 kw
QC12Y-20×4000	20 mm	4000 mm	2º30′	4 min-1	20-800 mm	22 kw
QC12Y -25×2500	25 mm	2500 mm	3º	5 min-1	20-800 mm	30 kw
QC12Y-25×3200	25 mm	3200 mm	3º	4 min-1	20-800 mm	30 kw

Features

1.Robust Hydraulic System – Integrated Bosch-Rexroth hydraulic components from Germany ensure stable performance, overload protection, and minimal maintenance.

2.Durable Cutting Blades – High-carbon, high-chrome D2 blades with four cutting edges extend tool life and maintain sharpness for consistent accuracy.

3.Adjustable Shearing Angle – Reduces plate deformation, allowing for higher quality edges and the ability to cut thicker sheets.

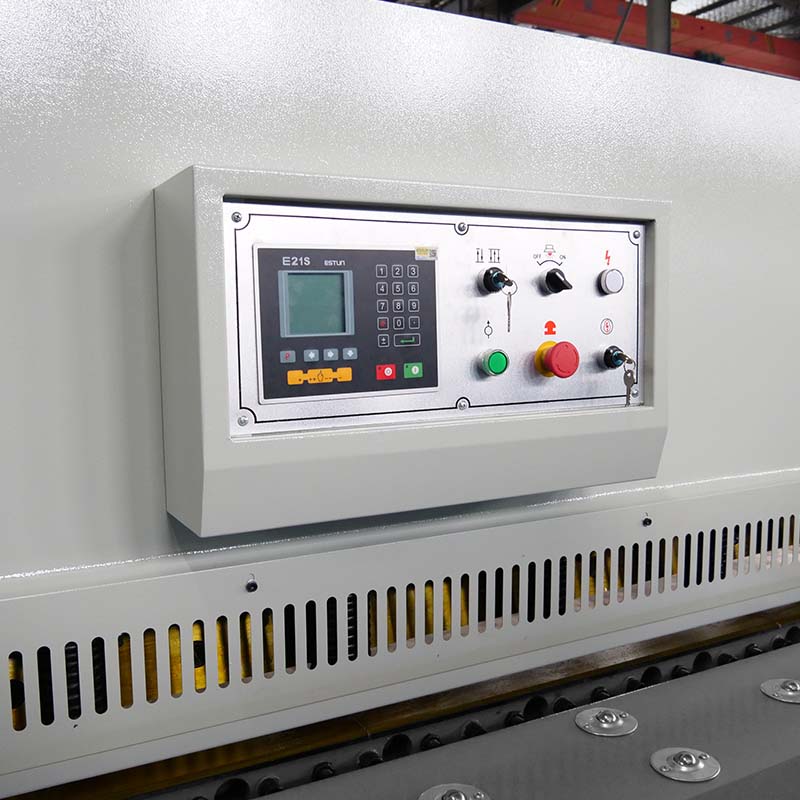

4.User-Friendly Operation – Equipped with an E21S CNC control system for back-gauge adjustment, programmable settings, and intelligent positioning.

5.Safety & Compliance – Protective fencing, safety interlocks, and CE-compliant foot pedals provide a secure working environment.

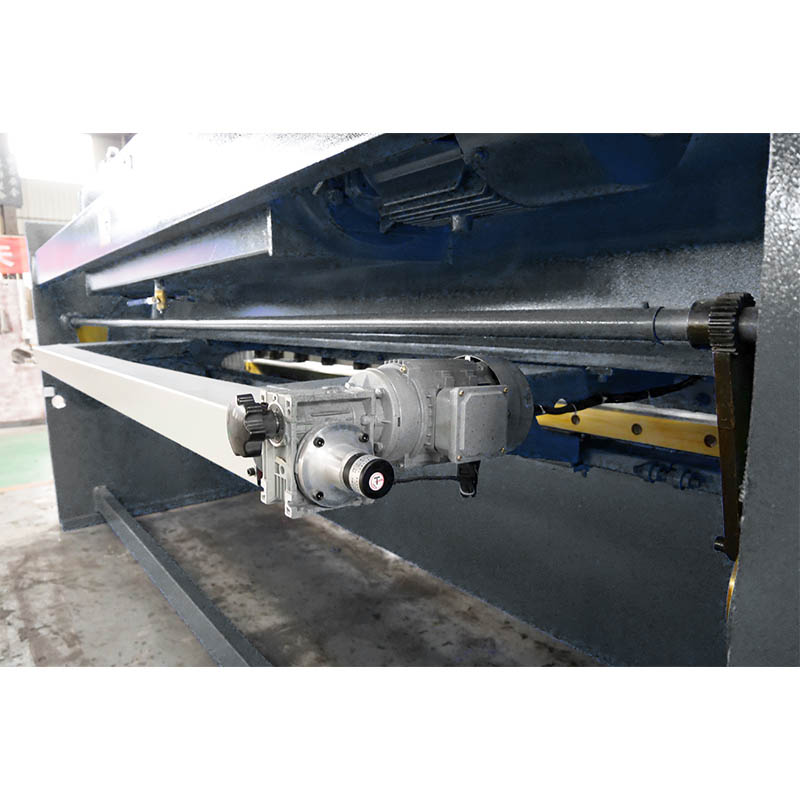

6.Precision Back-Gauge – Rapid and accurate adjustment for repeated cutting operations, improving productivity.
