Description

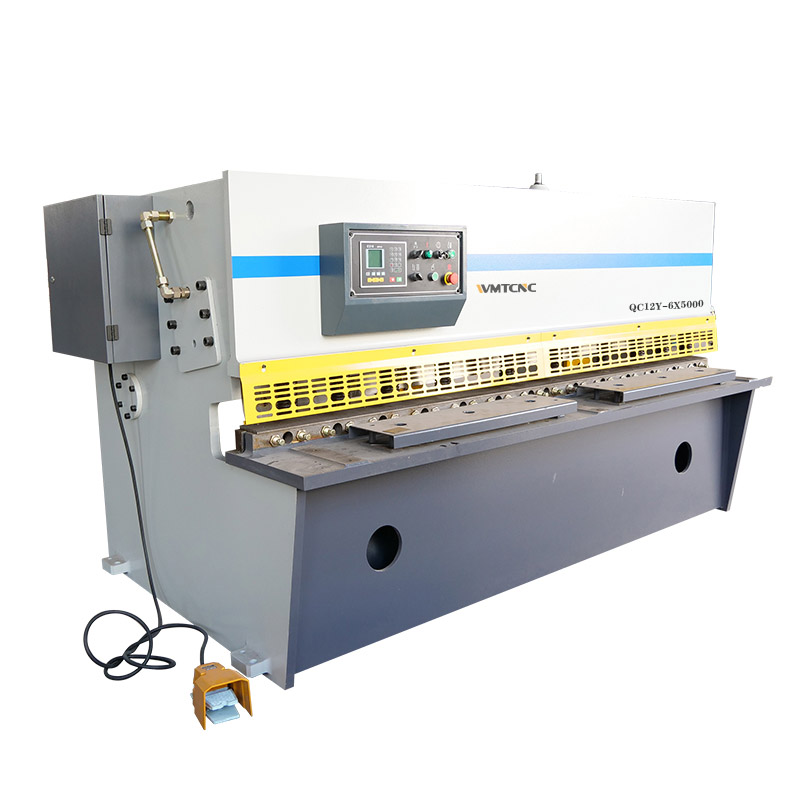

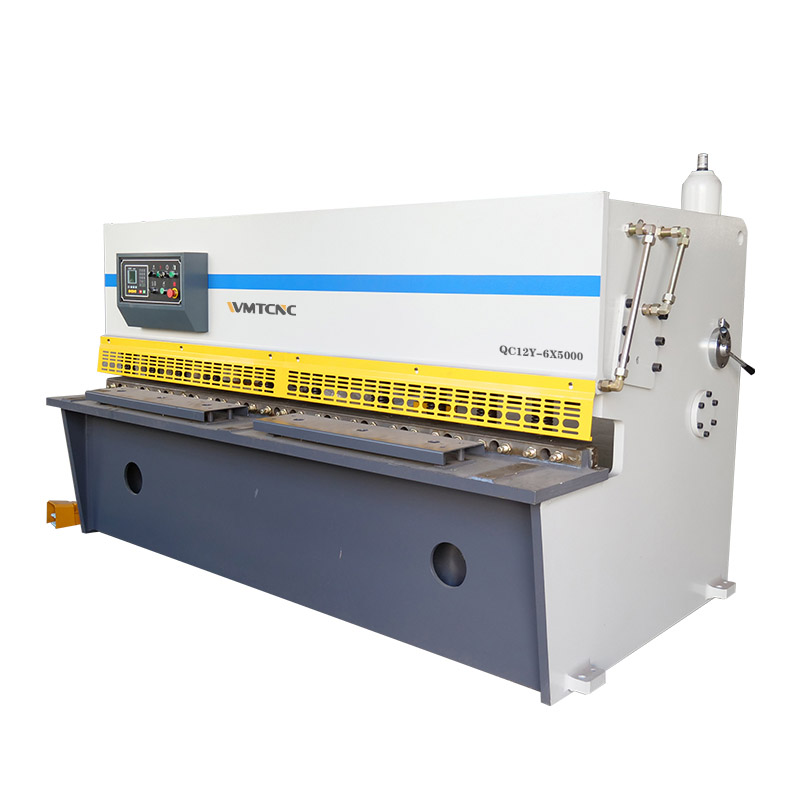

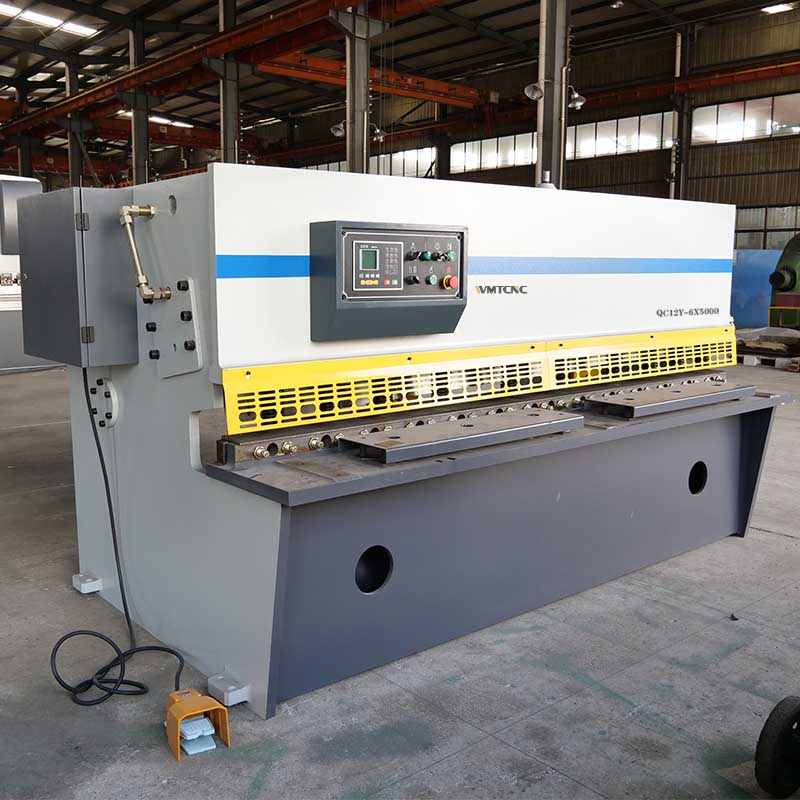

The Swing Beam Hydraulic Shear QC12Y-6X5000 is a heavy-duty sheet metal cutting machine designed for long, precise cuts up to 5000mm in length. Built with a streamlined European design and a rigid welded steel frame, this shear offers exceptional stability and cutting accuracy. Equipped with Bosch-Rexroth hydraulic systems, an E21S CNC controller, and D2 high-carbon high-chrome blades, it delivers consistent, burr-free cuts for industrial applications.
Specifications
| Model | Shear Thikness | Shear Width | Shear Angle | Number of Stroke | Backgauge Range | Main Power | ||
| QC12Y-4×2500 | 4 mm | 2500 mm | 1º-30′ | 20 min-1 | 10-500 mm | 5.5 kw | ||
| QC12Y-4×3200 | 4 mm | 3200 mm | 1º-30′ | 18 min-1 | 10-500 mm | 5.5 kw | ||
| QC12Y-4×4000 | 4 mm | 4000 mm | 1º-30′ | 12 min-1 | 10-500 mm | 5.5 kw | ||
| QC12Y-4×6000 | 4 mm | 6000 mm | 1º-30′ | 7 min-1 | 20-600 mm | 7.5 kw | ||
| QC12Y-6×2500 | 6 mm | 2500 mm | 1º-30′ | 18 min-1 | 10-600 mm | 7.5 kw | ||
| QC12Y-6×3200 | 6 mm | 3200 mm | 1º-30′ | 16 min-1 | 10-600 mm | 7.5 kw | ||
| QC12Y-6×4000 | 6 mm | 4000 mm | 1º-30′ | 10 min-1 | 10-600 mm | 7.5 kw | ||
| QC12Y-6×6000 | 6 mm | 6000 mm | 1º-30′ | 7 min-1 | 20-800 mm | 11 kw | ||
| QC12Y-8×2500 | 8 mm | 2500 mm | 1º-30′ | 14 min-1 | 10-600 mm | 7.5 kw | ||
| QC12Y-8×3200 | 8 mm | 3200 mm | 1º-30′ | 10 min-1 | 10-600 mm | 11 kw | ||
| QC12Y-8×4000 | 8 mm | 4000 mm | 1º-30′ | 8 min-1 | 10-600 mm | 11 kw | ||
| QC12Y-8×6000 | 8 mm | 6000 mm | 1º-30′ | 6 min-1 | 20-800 mm | 15 kw | ||
| QC12Y-10×2500 | 10 mm | 2500 mm | 1º-30′ | 12 min-1 | 20-600 mm | 11 kw | ||
| QC12Y-10×3200 | 10 mm | 3200 mm | 1º-30′ | 10 min-1 | 20-600 mm | 11 kw | ||
| QC12Y-10×4000 QC12Y-12x 2500 | 10 mm | 4000 mm | 1º-30′ | 8 min-1 | 20-600 mm | 15 kw | ||
| QC12Y-12×2500 | 12 mm | 2500 mm | 2º | 10 min-1 | 20-600 mm | 18.5 kw | ||
| QC12Y-12×3200 | 12 mm | 3200 mm | 2º | 9 min-1 | 20-600 mm | 18.5 kw | ||
| QC12Y-12×4000 | 12 mm | 4000 mm | 2º | 8 min-1 | 20-600 mm | 18.5 kw | ||
| QC12Y-12×6000 | 12 mm | 6000 mm | 2º | 4 min-1 | 20-800 mm | 22 kw | ||
| QC12Y-16×2500 | 16 mm | 2500 mm | 2º | 9 min-1 | 20-600 mm | 18.5 kw | ||
| QC12Y-16×3200 | 16 mm | 3200 mm | 2º | 8 min-1 | 20-600 mm | 18.5 kw | ||
| QC12Y-16×4000 | 16 mm | 4000 mm | 2º | 7 min-1 | 20-600 mm | 18.5 kw | ||
| QC12Y-16×6000 | 16 mm | 6000 mm | 2º | 4 min-1 | 20-800 mm | 22 kw | ||
| QC12Y-20×2500 | 20 mm | 2500 mm | 2º30′ | 5 min-1 | 20-800 mm | 22 kw | ||
| QC12Y-20×3200 | 20 mm | 3200 mm | 2º30′ | 4 min-1 | 20-800 mm | 22 kw | ||
| QC12Y-20×4000 | 20 mm | 4000 mm | 2º30′ | 4 min-1 | 20-800 mm | 22 kw | ||
| QC12Y -25×2500 | 25 mm | 2500 mm | 3º | 5 min-1 | 20-800 mm | 30 kw | ||
| QC12Y-25×3200 | 25 mm | 3200 mm | 3º | 4 min-1 | 20-800 mm | 30 kw | ||
Features
1. Strong and Durable Frame
European streamlined structure with welded steel construction.
Sand-blasted surface with anti-rust coating for long service life.
Machined connection holes and assembly surfaces ensure alignment and stability.
2. Advanced Hydraulic System
Integrated Bosch-Rexroth hydraulic control for reliability and easy maintenance.
Leak-proof, vibration-resistant pipe and joint design.
Japanese Volqua high-performance seals.
Overload overflow protection and visible oil level indicator.
3. Electrical & Safety System
IP65-rated electrical cabinet, CE-certified components.
Protective fences, interlock systems, and back safety guards.
Movable foot pedal for operator convenience.
4. Cutting Accuracy & Blade Adjustment
Variable shearing angle minimizes plate deformation.
Handwheel for quick and precise blade clearance adjustments.
High-carbon, high-chrome D2 blades with four cutting edges for extended lifespan.
5. CNC E21S Control System
Back gauge control with AC motor and frequency inverter.
Storage for up to 40 programs, 25 steps per program.
Retract function, stock counter, and metric/imperial display options.
Machine Details
Back gauge & blade
Feeding table & support arms
Safety fence & blade screw
Pneumatic Clamp
Hyraulic cylinder
Hydraulic valves
Electric cabinet
Back gauge motor & sychronous pulley
